Globaljig SYSTEM - Hydraulic Cylinder Assembly

USER’S MANUAL
SYSTEM/VECTOR
CHAPTER 5
5.5. ASSEMBLY OF THE HYDRAULIC CYLINDER

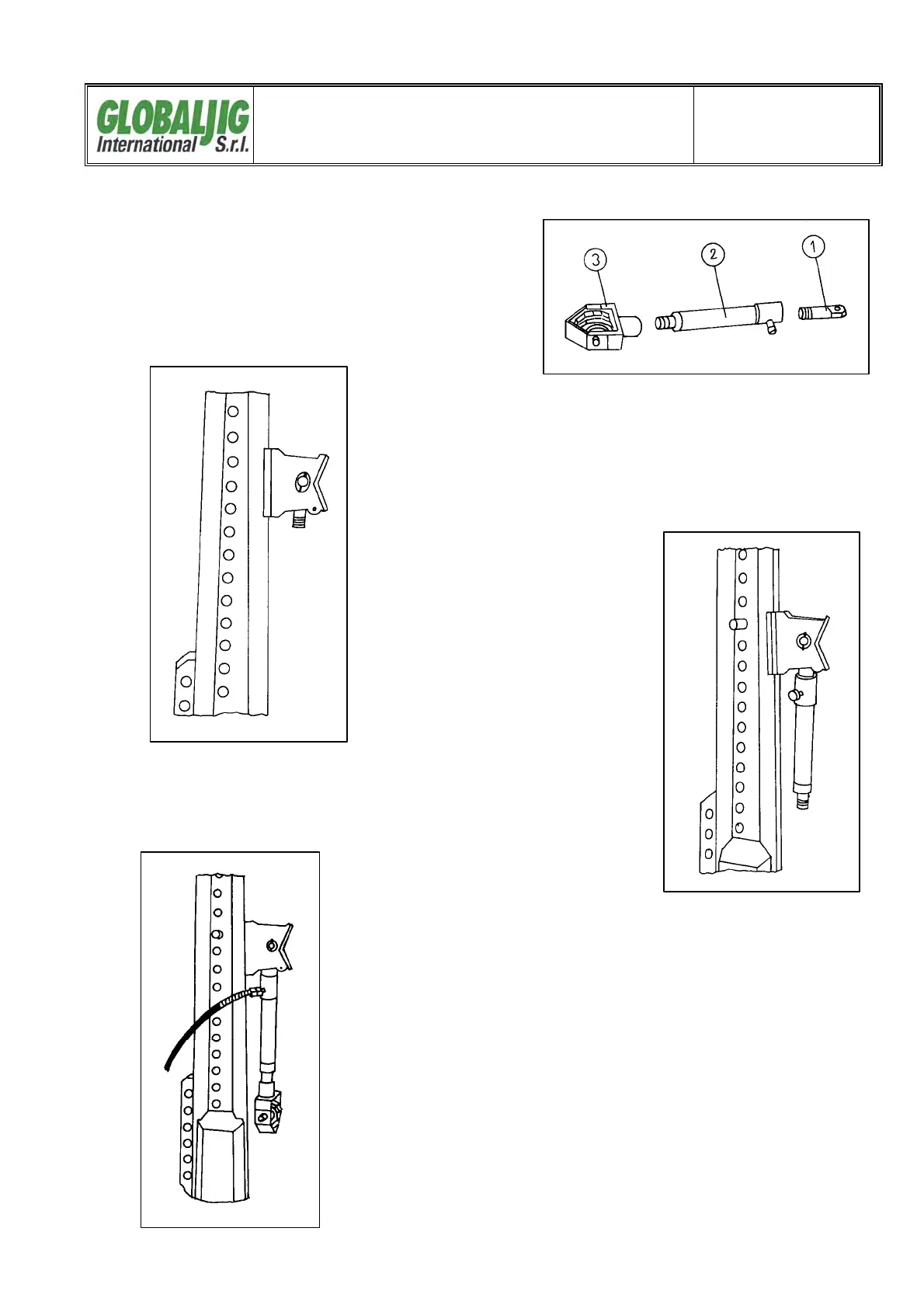

The components involved are shown in
fig. 05 - 05 
1) Male connection
2) Hydraulic cylinder
3) Female connection with fork
Insert the male connection in its position as shown in
 fig. 05 - 05 and lock it in place with its plug.
Secure the plug with the Safety ring.
Screw down the hydraulic cylinder all the way and
leave the hydraulic connection positioned to the side
as shown in fig. 05 - 06. 
Tighten the fork connection all the way.
Insert the pump hose into the connection on the
hydraulic cylinder and tighten the ring nut all the
way.
 Fig. 05 - 07.
THE VECTOR IS NOW READY
FOR START-UP.
