Globaljig SYSTEM - Vector Pulling Arm Technical Data

USER’S MANUAL
SYSTEM/VECTOR
CHAPTER 3
• Machine ID
Brand: Globaljig International S.r.l.
Via Aurelia Ovest, Km 383
54100 Massa - ITALY

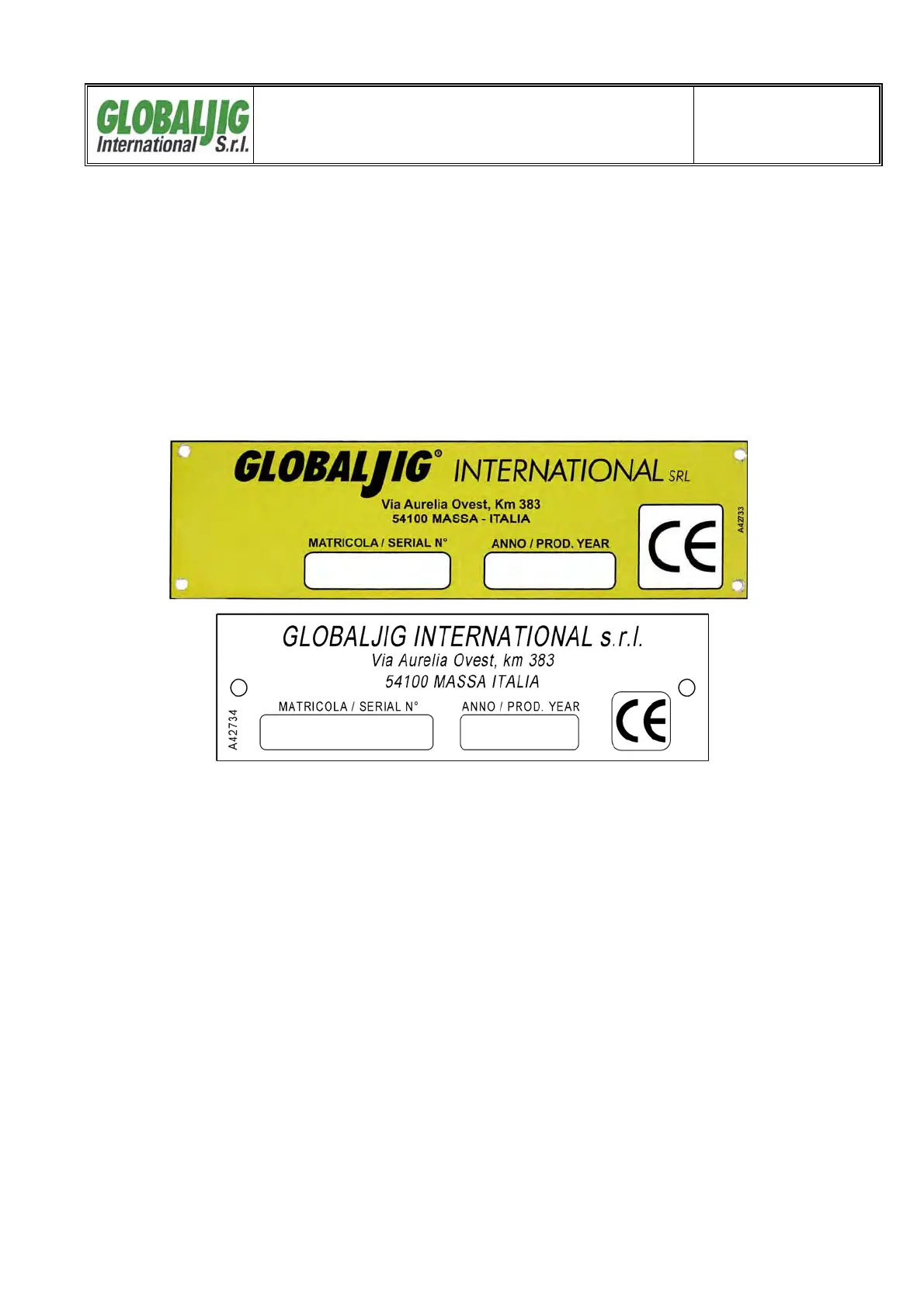

The serial number and CE labelling are reported on the label indicated in the
figure below. This label is positioned on the:
- front crossbeam of the SYSTEM bench
- Vector work arm close to the engage/release lever
The identification data are reported on the fixed label secured to the
Machine structure: never remove, alter or damage these labels.
3.2. TECHNICAL DATA for the VECTOR pulling arm
LENGTH:........................................................2.15 m
WIDTH:............................................................1.0 m
HEIGHT: ........................................................1.77 m
WEIGHT:...................................................... 330 daN
PULLING FORCE:.............................................. 5/10 t
HYDRAULIC CYLINDER STROKE:...................... 200 mm
MAX. OPERATING PRESSURE: .......................... 600 bar
