4.5 PCB Layout
The design has been laid out on a two-layer PCB consisting of a 60-mil core of FR-4 with ½ ounce copper clad.

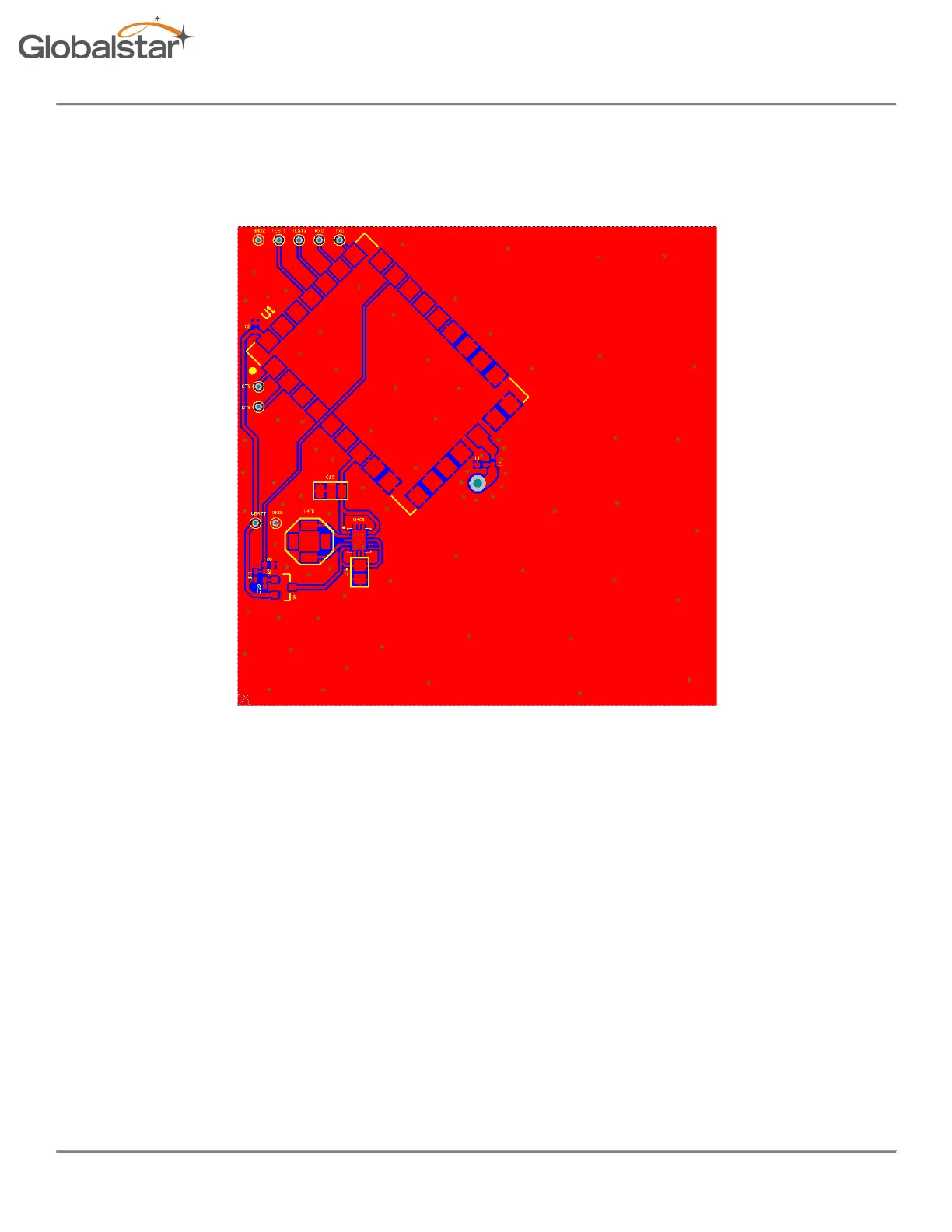

Figure 9 Component Side
