weBBoat 4G Plus
60
NOTE: In order to receive the signal from the weBBoat inside metal vessels,
up to a maximum of four access points (according to your needs) must be
placed inside the boat, which must be linked with a switch to the router
inside the weBBoat 4G Plus via an Ethernet network cable.
GL00227
+
+
-
-
C
O
A
S
T
A
L
I
N
T
E
R
N
E
T
A
N
T
E
N
N
A
S
Y
S
T
E
M
12/24 Vdc

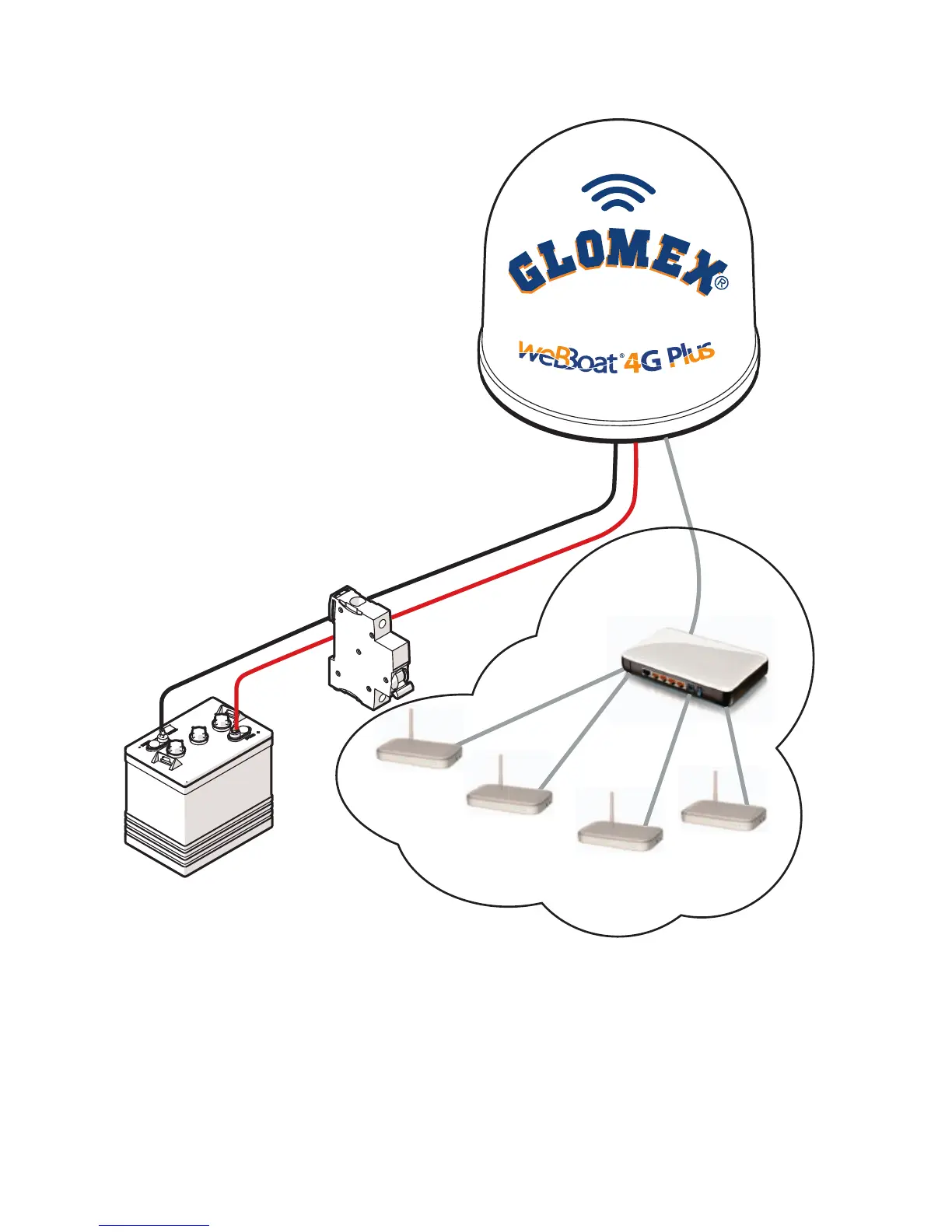

Fig. 11
CIRCUIT BREAKER
1st ACCESS
POINT
2nd ACCESS
POINT
3rd ACCESS
POINT
4th ACCESS
POINT
ROUTER
SWITCH
ETHERNET
CABLE
OPTIONAL
INSTALLATION
