Programmer Instructions for Use
NOTE: MULTIPLE ON OR OFF EVENTS MAY BE
PROGRAMMED, SEE EXAMPLE.
BEFORE PROCEEDING WITH SETTING THE TIME AND
PROGRAMMING THE UNIT, PRESS THE RESET KEY TO
CLEAR ALL DATA FROM THE MEMORY.
Selecting AM/PM or 24 Hour Time
After pressing reset, the display may show AM (below). The
numbered day symbols will be flashing on and off.
If the display does not show AM, it is in 24 hour time. To change
to AM/PM mode, press and hold the h key and press the
±1h
key once. AM will appear in display.
If display is in AM/PM mode and 24 hour time mode is desired,
press and hold the h key, press the
±1h key once.
Programming 24 Hour or 7 Day Schedules
It may be helpful to write out the programme schedules before
beginning.
THE CURRENT TIME OF DAY AND DAY OF WEEK MUST BE
SET PRIOR TO PROGRAMMING. SEE "SETTING THE TIME"
Example
Event 1: ON at 7:00AM Monday through Saturday
Event 2: OFF at 5:00PM Monday through Friday
Event 3: OFF at 7:00PM Saturday
Three events need to be entered.

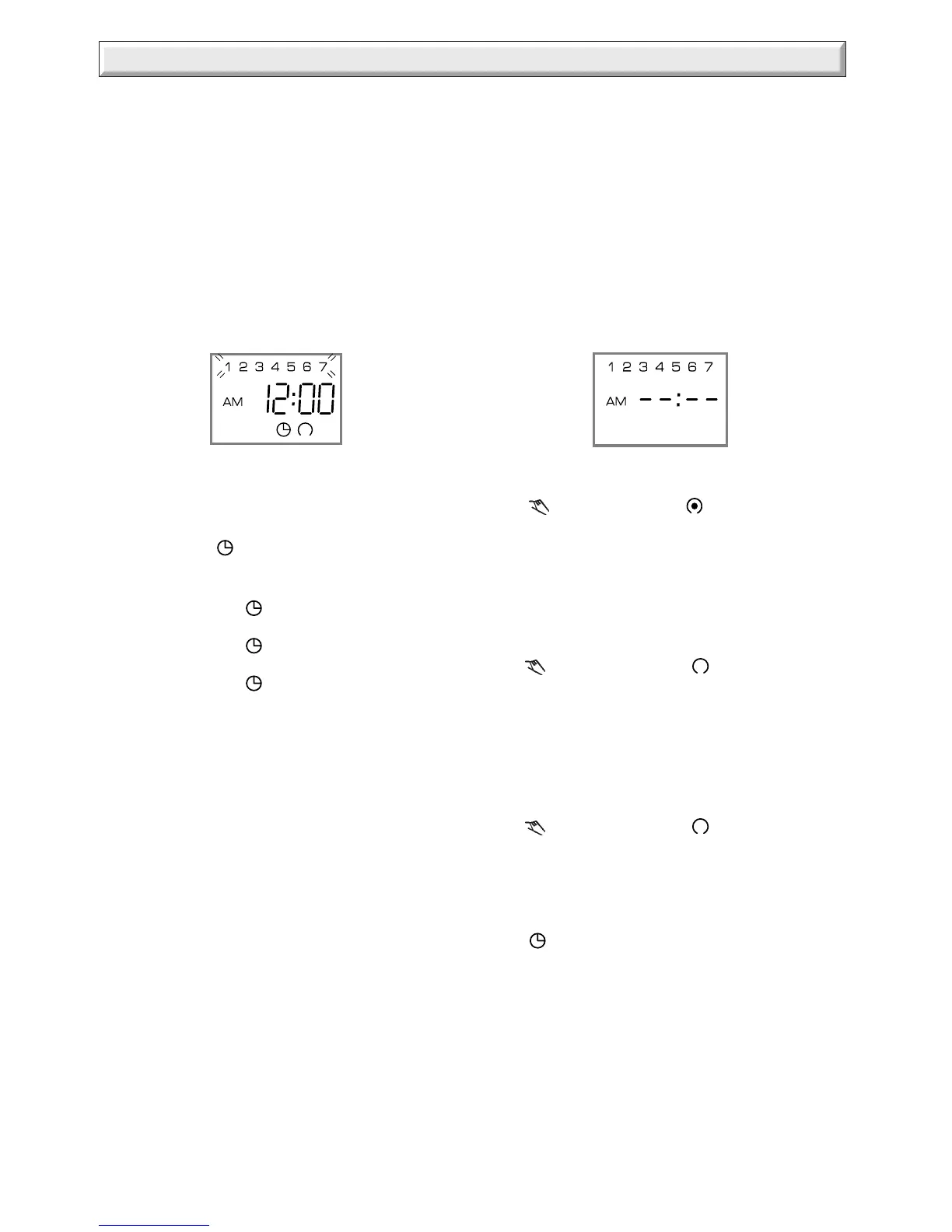

Press Prog. key only once. Display shows:
Setting the Time
IF THE h AND m KEYS ARE HELD DOWN LONGER THAN 2
SECONDS, THE NUMBERS WILL ADVANCE RAPIDLY.
Press and hold the
key during the following:
(If British Summer Time is in effect, press ±1h first)
1. Press h to advance to the current hour
(while holding down the
key)
2. Press m to advance to the current minute
(while holding down the
key)
3. Press Day repeatedly to advance to current day
(while holding down the
key)
Day Key Selections
Press Day Key Display Shows Days
0 times 1 2 3 4 5 6 7 Every Day
1 time 1 2 3 4 5 6 Mon.–Sat.
2 times 1 2 3 4 5 Mon.–Fri.
3 times 6 7 Sat. & Sun.
4 times 1 Monday
5 times 2 Tuesday
6 times 3 Wed.
7 times 4 Thursday
8 times 5 Friday
9 times 6 Saturday
10 times 7 Sunday
NOTE: If the days are flashing, it indicates the day of the week
was not set when setting the time. The timer cannot be
programmed unless the day of the week is entered.
Manual GMT/BST Time Changeover
Each year, in the Spring, press ±1h to advance the time an
hour. In the Autumn, press ±1h to set back an hour.
Event 1 (ON at 7:00AM Monday through Saturday)
Press key once. ON symbol appears
Press h key to 07AM
Press m key once to 00
Press Day key once 1 2 3 4 5 6 is displayed
Press Prog. key to enter
Event 2 (OFF at 5:00PM Monday through Friday)
Press
key twice. OFF symbol appears
Press h key to 05PM
Press m key once to 00
Press Day key two times 1 2 3 4 5 is displayed
Press Prog. key to enter
Event 3 (OFF at 7:00PM Saturday)
Press
key twice. OFF symbol appears
Press h key to 07PM
Press m key once to 00
Press Day key 9 times until only 6 is displayed
Press Prog. key to enter
Press
key to enter Run Mode
IF AN "ON" TIME WAS PROGRAMMED THAT IS EARLIER IN
THE DAY THAN THE CURRENT TIME, PRESS ONCE TO
TURN THE TIMER "ON". (IT DOES NOT "LOOK BACK" TO
DETERMINE IF IT SHOULD BE ON OR OFF AFTER
PROGRAMMING).
IF 24 HOUR TIME CONTROL (SAME SCHEDULE EVERY DAY
OF THE WEEK) IS DESIRED, IGNORE Day KEY.
If an ON or OFF symbol is not entered, the ON symbol will flash,
and programme will not be accepted.
