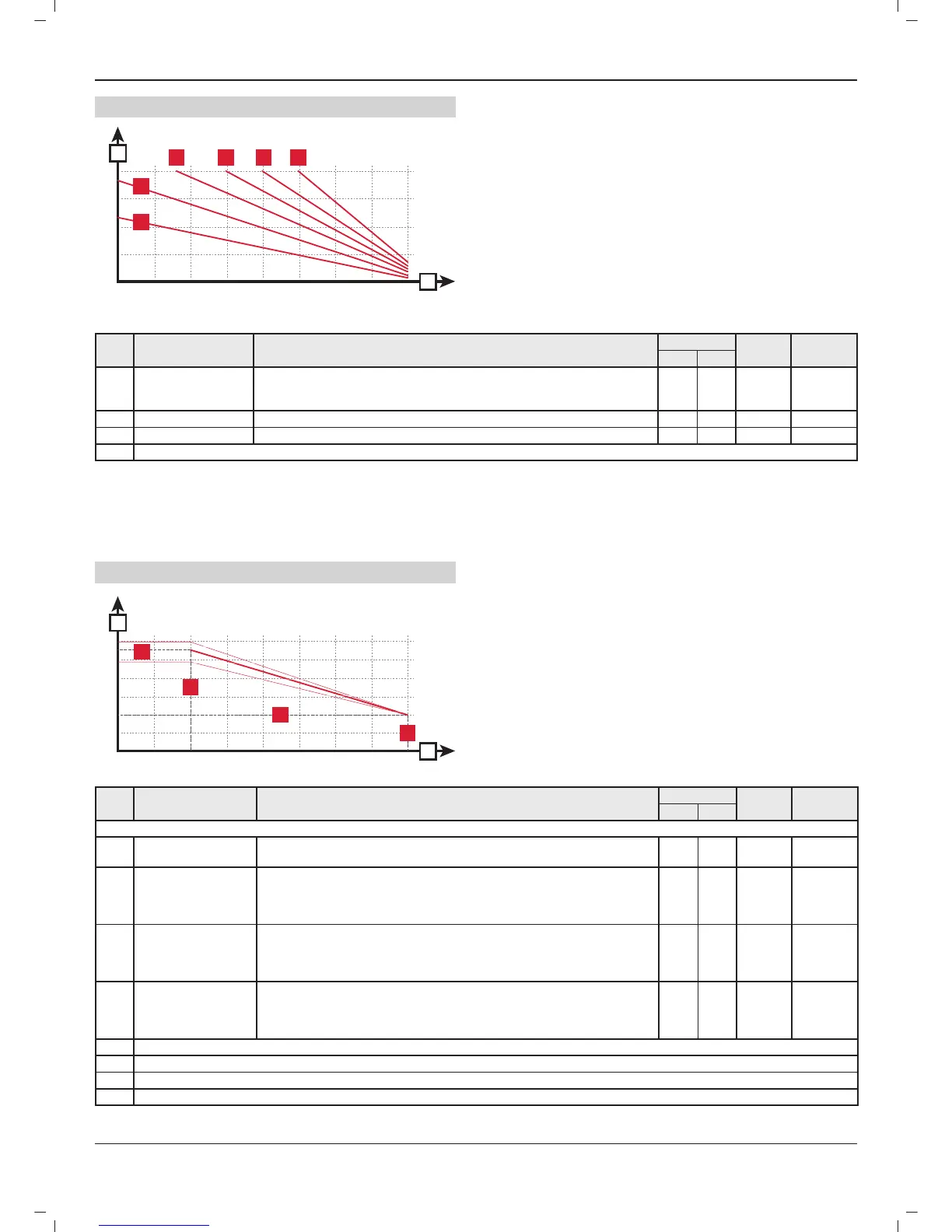

Predefi ned heating curves (code 112)
30
20
40
50
60
A
B
-20 -15 -10 -5 0 5 10 15 20
1211109
8
7
Key
7 Heating graph n°7
8 Heating graph n°8 (factory setting)
9 Heating graph n°9
10 Heating graph n°10
11 Heating graph n°11
12 Heating graph n°12
A Heating fl ow temperature (°C)
B Exterior temperature (°C)
Code Function Description
Setting
Factory
setting
Modifi able
parameter
Min Max
112
Predefi ned heating
curves
0 = Personalised graph (see codes 118 to 121)
1 to 6 = Not used
7 to 12 = Pre-defi ned graphs (see above graphs)
112 8 Yes
114 ECO heating mode Reduction off set for the installation's water temperature setting in heating mode. 1°C 20°C 5°C Yes
116 ECO cooling mode Increase off set for the installation's water temperature setting in cooling mode. 1°C 10°C 5°C Yes
117 Not used
Personalised heating curves (codes 118, 119, 120, 121)
-20 -15 -10 -5 0 5 10 15 20
A
B
0
10
20
30
40
50
60
2
3
1
4
Key
1 Code 118
2 Code 119
3 Code 120
4 Code 121
A Heating fl ow temperature (°C)
B Exterior temperature (°C)
Code Function Description
Setting
Factory
setting
Modifi able
parameter
Min Max
Setting codes 118 to 121 is necessary only if code 112 = 0.
118
Minimum reference
exterior temperature
Choose the minimum reference exterior temperature for the region where the
heat pump is installed.
-20°C 10°C -7°C Yes
119
Exterior temperature
from which the heat
pump stops in heating
mode
When the exterior temperature reaches the input value, heat pump stops.
Choose the exterior temperature from which the heat pump must stop in heating
mode.
10°C 30°C 20°C Yes
120
Minimum temperature
of water in the
installation in heating
mode
Choose the minimum temperature of the water in the installation in heating
mode.
20°C 60°C 40°C Yes
121
Maximum temperature
of the water in the
installation in heating
mode
Choose the maximum temperature of the water in the installation in heating
mode.
20°C 60°C 55°C Yes
122 Not used
123 Not used
124 Not used
125 Not used
INSTALLATION
