0020148679_00 - 11/12 - Glow-worm
- 15 -
INSTALLATION AND SERVICING
EN
7.6.2 After sales service info
This menu provides access to After sales Service information:
- date of last access to installer menus
- the name of the company which provides the after sales
service, if entered during installation.
- the telephone number of the company which provides the after
sales service , if entered during installation.

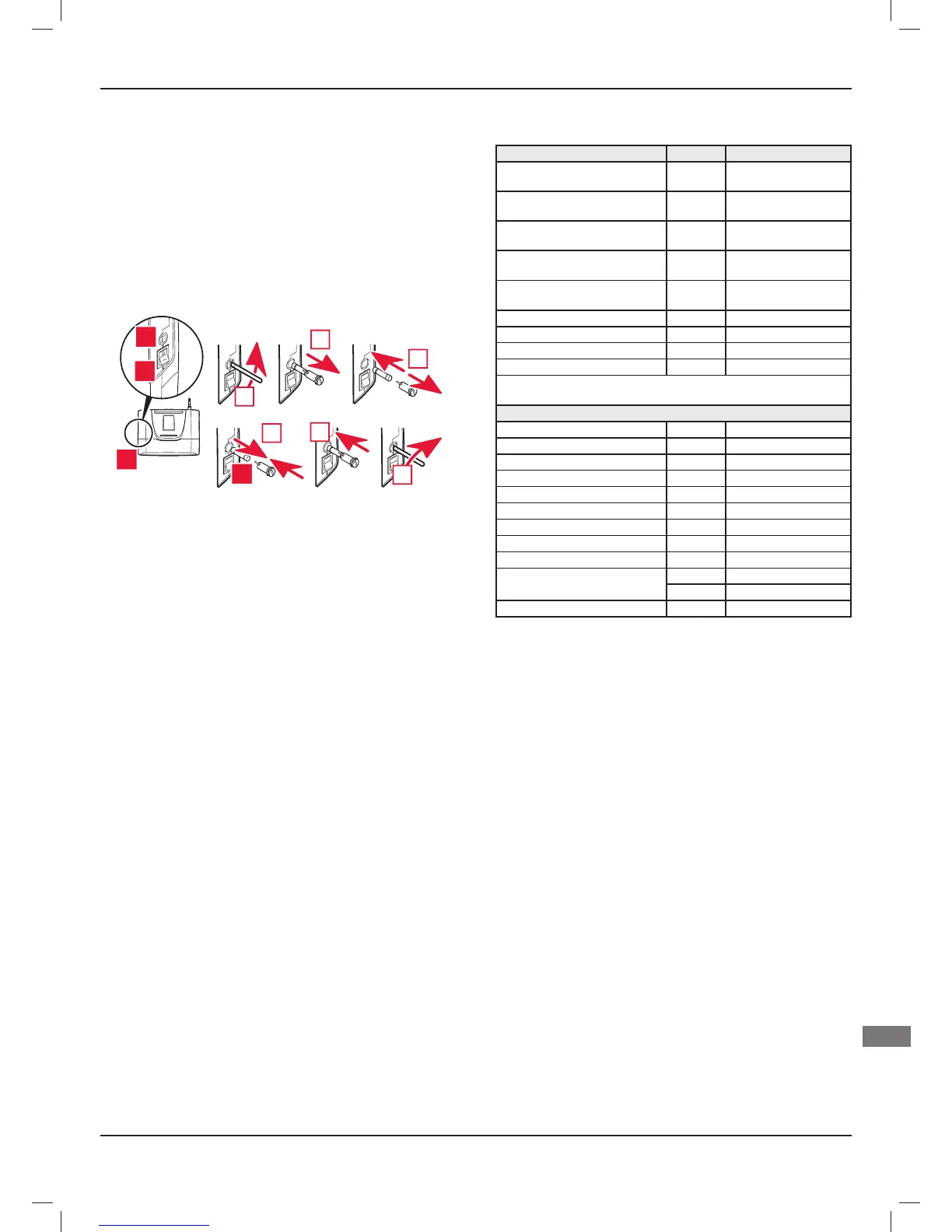

7.7 Replacing a fuse
C
A
B
D
E
F
3
2
1
4
Key
1 Fuse
2 Control unit
3 Switch On (I) / O (O)
4 Fuse holder
Turn o the control unit (2) with the switch (3) in position (O).
Turn o the power supply to the control unit (2) at the isolating
switch.
Replace the fuse following the order (A) to (F).
Turn on the power supply to the control unit (2) at the isolating
switch.
Turn on the control unit (2) with the switch (3) in position (I).
8 Recycling and disposal
8.1 Recycle the packaging
Sort the waste to separate those which can be recycled
(cartons, plastics...) from those that cannot (strapping ...).
Recycle the product packaging according to all relevant
regulations.
8.2 Recycle or dispose the product and its
components
Do not dispose of your product or any of its accessories in the
household waste.
Make sure the old unit and any accessories are disposed of
properly.
Observe all relevant regulations.
9 Technical data
Description Unité Control unit
Transmission / reception
frequency
MHz 868
Transmission / reception
frequency with outdoor sensor
MHz 15
Transmission / reception
frequency with room thermostat
MHz 10
Average radio signal range in
open air (*)
m 100
Average radio signal range
indoors (*)
m25
Control unit dimensions:
Height mm 264
Length mm 290
Depth mm 45
(*) Depends on the installation’s conditions and the electromagnetic
environment.
Electricals
Power-supply voltage VAC/Hz 230/50
Power cable gauge mm² 3 x 0.75
eBUS connection cable gauge mm² 2 x 0.75
Current A 4.35
Delay fuse A 1
Electrical protection IP20
Electrical classi cation I
Surge category II
Pollution rating 2
Contact outputs fed work
A8
V 230
Action auto type 1.C
