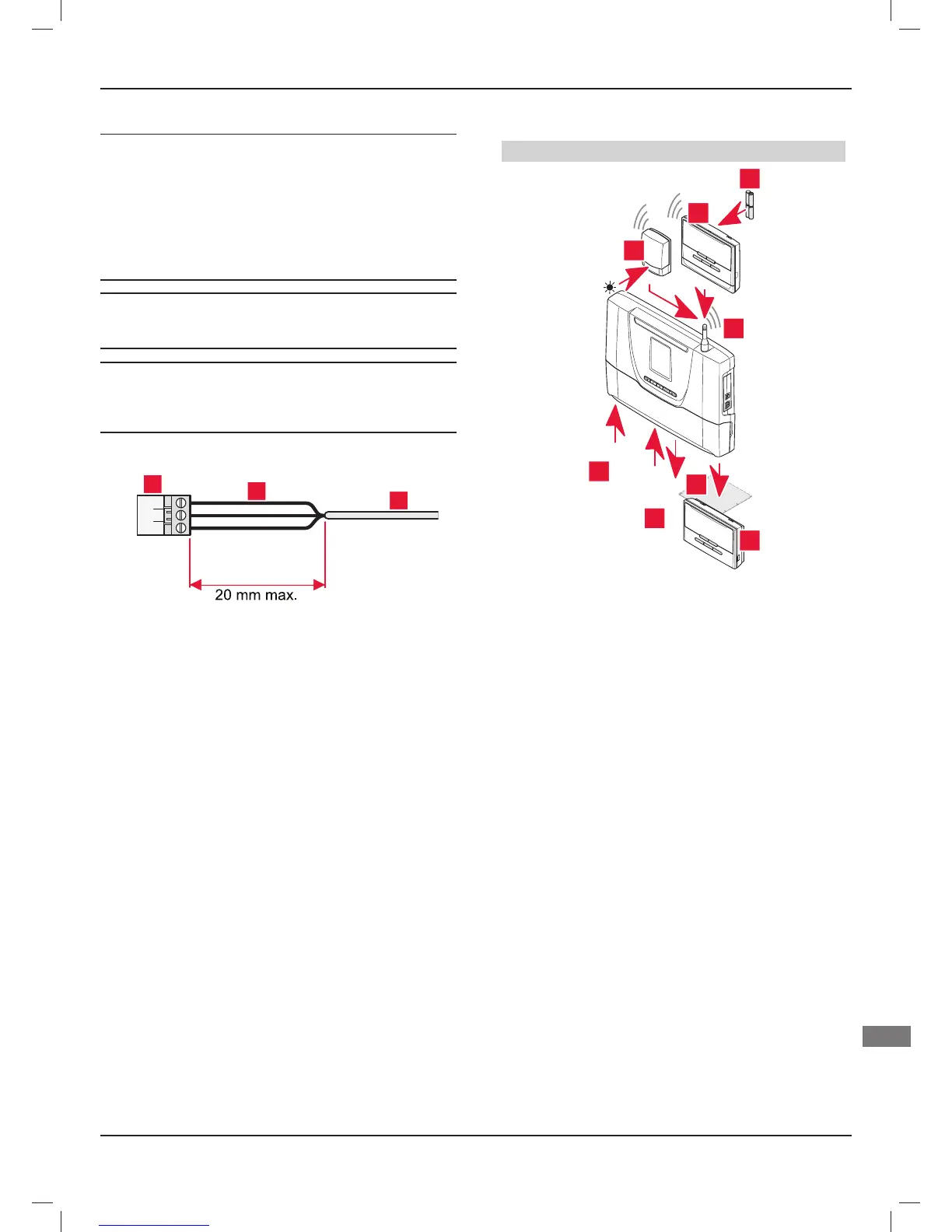

INSTALLATION AND SERVICING
EN
4.4 Electrical installation
e
Danger !
Risk of electric shock due to an improper electrical
connection!
Improper electrical connection can cause electric
shock or might negatively affect the operational
safety of the product and might cause material
damage.
• The electrical connection of the product must be
carried out only by a suitably qualified person.
e
Danger !
• Use 0.75 mm² section cables for the electrical
connections to the control box.
e
Danger !
• Risk of electric shock.
Break the grommets necessary for passing the
cables.
1
2
3
Key
1 Connector
2 Electrical wires
3 Casing
∙ Maintain a maximum distance of 20 mm between the
connector and the outer insulation.
4.4.1 Connection descriptions
individual installation
230V
IN
OUT
NTC
EBUS
EBUS
5
6
6
7
1
2
3
4
Key
1 Wired eBUS Connection
2 Input/Output, sensors
3 230 V power supply
4 Connections eBUS wireless of the unit controller eBUS
5 Outside wireless temperature sensor
6 Room thermostat eBUS wireless or wired
7 Batteries
8 Wired outdoor sensor
