Supplied By www.heating spares.co Tel. 0161 620 6677
16
8.1 Systems Connection
Remove the protective caps from the boiler connections.
NOTE: The appliance may contain a small amount of water,
place a water container beneath the boiler connections.
Assemble and secure the pre formed copper tails to their
respective isolation valves making sure of their correct
orientation, see diagram 8.1.
Fit the isolation valves/copper tails with seals to the
appliance as shown in diagram 8.1
Make sur
e that all connections ar
e secured in the sequence
shown on diagram 8.1.
There are flats on the body of the valves for locating a
spanner to aid tightening.
Fit the ‘O’ ring seal fr
om the loose items pack to the Double
Check Inlet Valve assembly then secur
e into isolation valve
with wire retaining clip, see diagram 8.1.
13239
Diagram 7.2
7 Boiler Fixing
Fit the Central Heating Isolation Valve handles and secure
with screws provided.
NOTE: Make sure the test and drain points are accessible,
see diagram 8.1.
Plumb the system pipe work to the copper tails.
NOTE: Do not subject the isolation valves to heat.
Flush out the domestic hot water and the heating systems,
r
efer to section 5.8.
The whole of the gas installation, including the meter, should
be inspected, tested for tightness and purged in accordance
with the current issue of BS6891 and in IE the curr
ent edition
of I.S.813 “Domestic Gas Installations”.
7.1 Hanging Bracket Fixing
The Wall Hanging Bracket is supplied in the main boiler
packaging at the rear of the boiler.
Reposition the wall template over the flue hole and mark
the position of the fixing holes for the hanging bracket, see
diagram 7.1.
Drill fixing holes and insert suitable wall plugs.

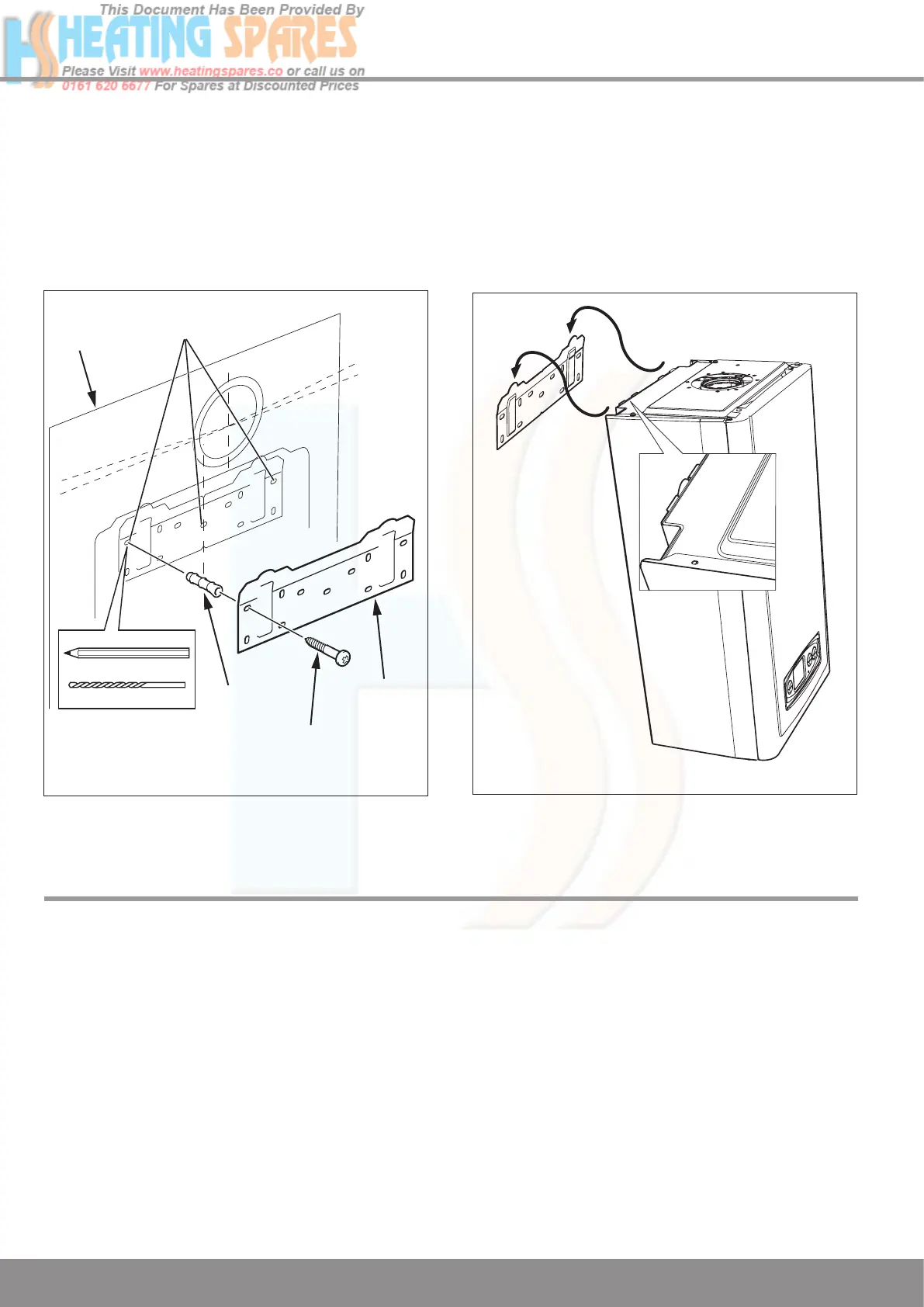

Diagram 7.1
WALL
PLUG
SCREW
N
O
12 x 50mm
WALL
TEMPLATE
Preferred
fixing points
HANGING
BRACKET
13503
7.2 Boiler Hanging
IMPORTANT: With regards to the Manual Handling
Operations, 1992 Regulations, the following lift operation
exceeds the recommended weight for a one man lift, refer to
section 17 Manual Handling.
Lifting the boiler into position, lean the top of the boiler
slightly to the wall and position just above the hanging
bracket. Lower the boiler slowly and engage onto the hanging
bracket, see diagram 7.2.
8 Gas / Water Connections
