2 Boiler Dimensions & Hydraulic Schematic
13269
Diagram 2.2
Diagram 2.1

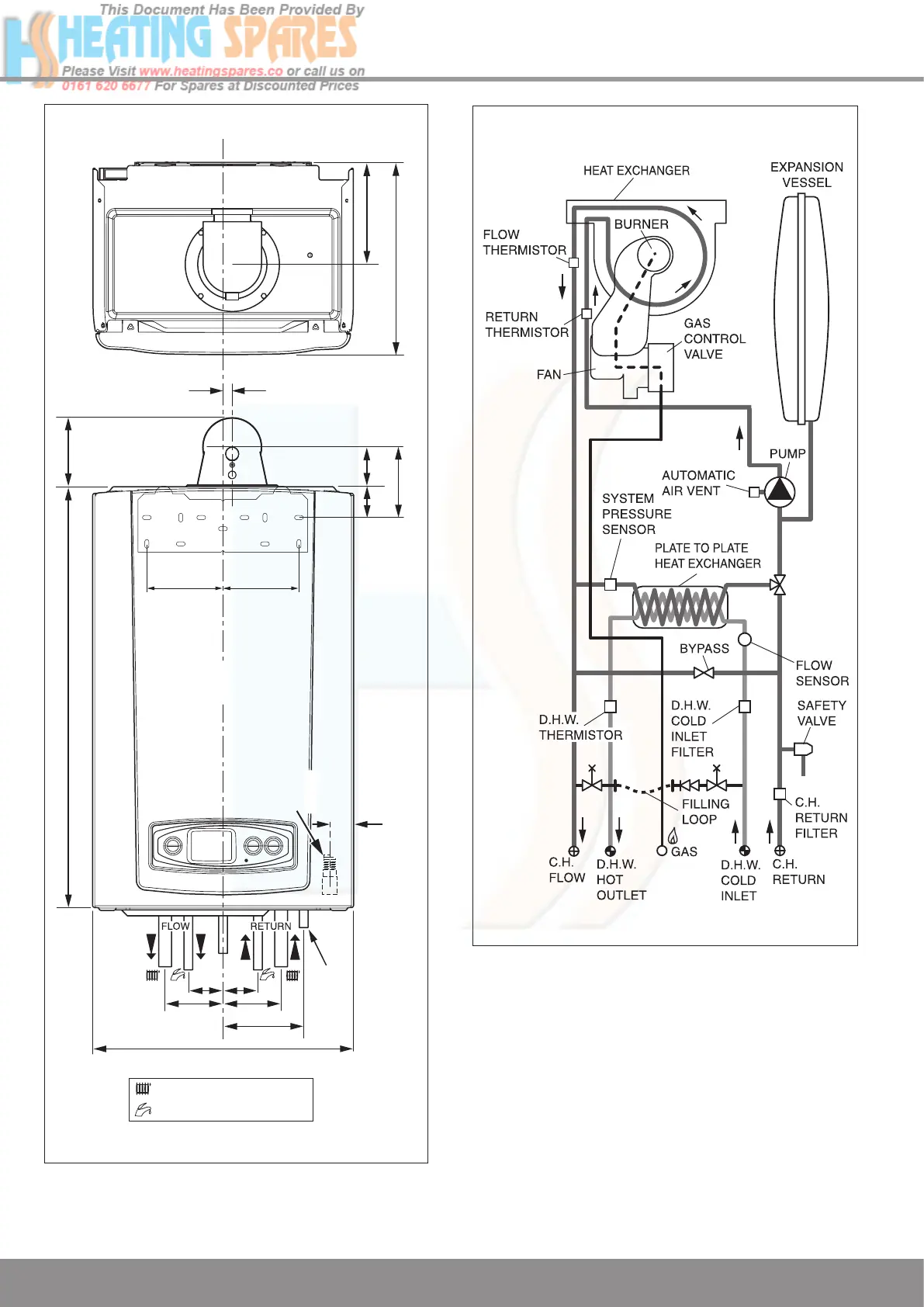

2.1 Boiler Dimensions & Hydraulic Schematic
All dimensions are given in millimetres (except as noted).
The general arrangment of the boiler is shown in diagram 2.1.
and the hydraulic and gas schematic, diagram 2.2.
The data label is positioned on the front of the inner casing
panel.
52
120
130 130
CONDENSATE
CONNECTION
SDV
outlet
6060
40
75
100100
140
176
450
726
C
BOILER
L
334
127
16
DOMESTIC HOT WATER
CENTRAL HEATING
13268

Glow-worm Ultracom 30cxi Specifications

General

Boiler Type	Combi
Fuel Type	Natural Gas
Mounting	Wall-mounted
DHW Output	30 kW
DHW Flow Rate	12.4 l/min
ErP Efficiency Rating	A
Efficiency	89.2%
Warranty	2 years
