GLUX VSP-F2L4 User Manual

2
Chapter 1 Brief Introduction of VSP-F2L4 Controller
VSP-F2L4 control system is researched and developed by Glux independently, it
is the third generation and suitable for the new generation LED display products of
Glux. It is a set of network transmission, optical fiber transmission, and with image
scaling, image mirror functions, and supported 1080 p resolution.

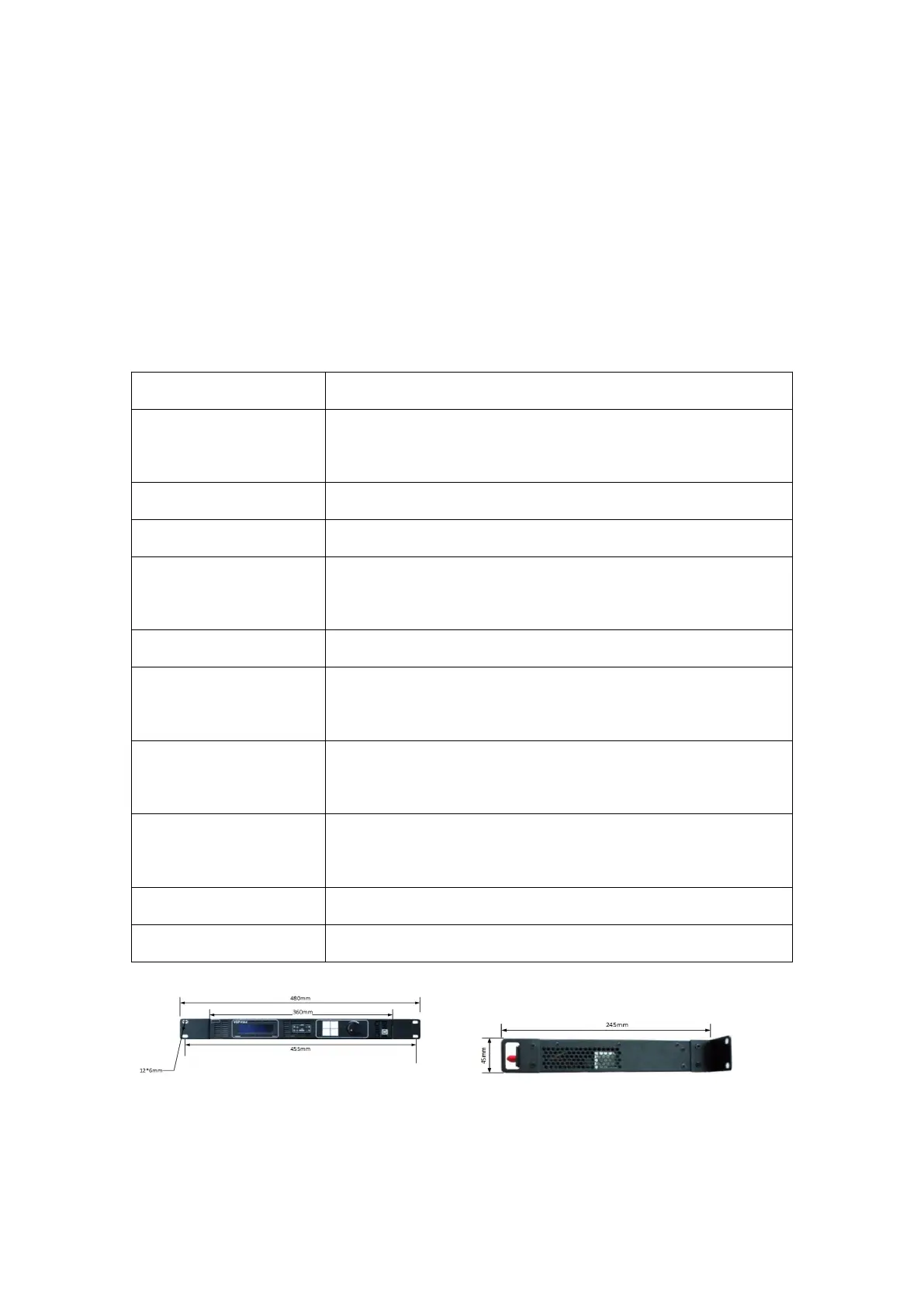

1.1 Parameters of VSP-F2L4 controller.
System Name VSP-F2L4 Giga control system
Input Resolution Max input resolution: 2048×1152; Support the video source
which frequency is less than 60 Hz
Output Resolution Max output resolution: 1920×1080
Power Input AC 110~220V, 20W
Signal Input CAT6 cable, 1G network bandwidth, optical fiber signal
input, 2.5G optical fiber bandwidth
Transmission Distance CAT6 cable：≤ 120 meters; optical fiber cable: 10 km.
Video Signal Input
Interface
DVI Input, DVI output, HD 3G-SDI input, 3G-SDI output
Video Processing Gray
scale
16-bit gray scale, class 100 adjustable Brightness
Communications
Control Port
USB communications, Network communications and it
support update online.
DMX512 DMX512 is supported
Size 480mm×245mm×45mm
1.2 Signal Connections to the LED screen
There are three connecting methods between VSP-F2L4 controller and LED

GLUX VSP-F2L4 Specifications

General

Brand	GLUX
Model	VSP-F2L4
Category	Controller
Language	English
