1.3 Function Introduction for VSP-F2L4 Controller’s Buttons
and Interfaces

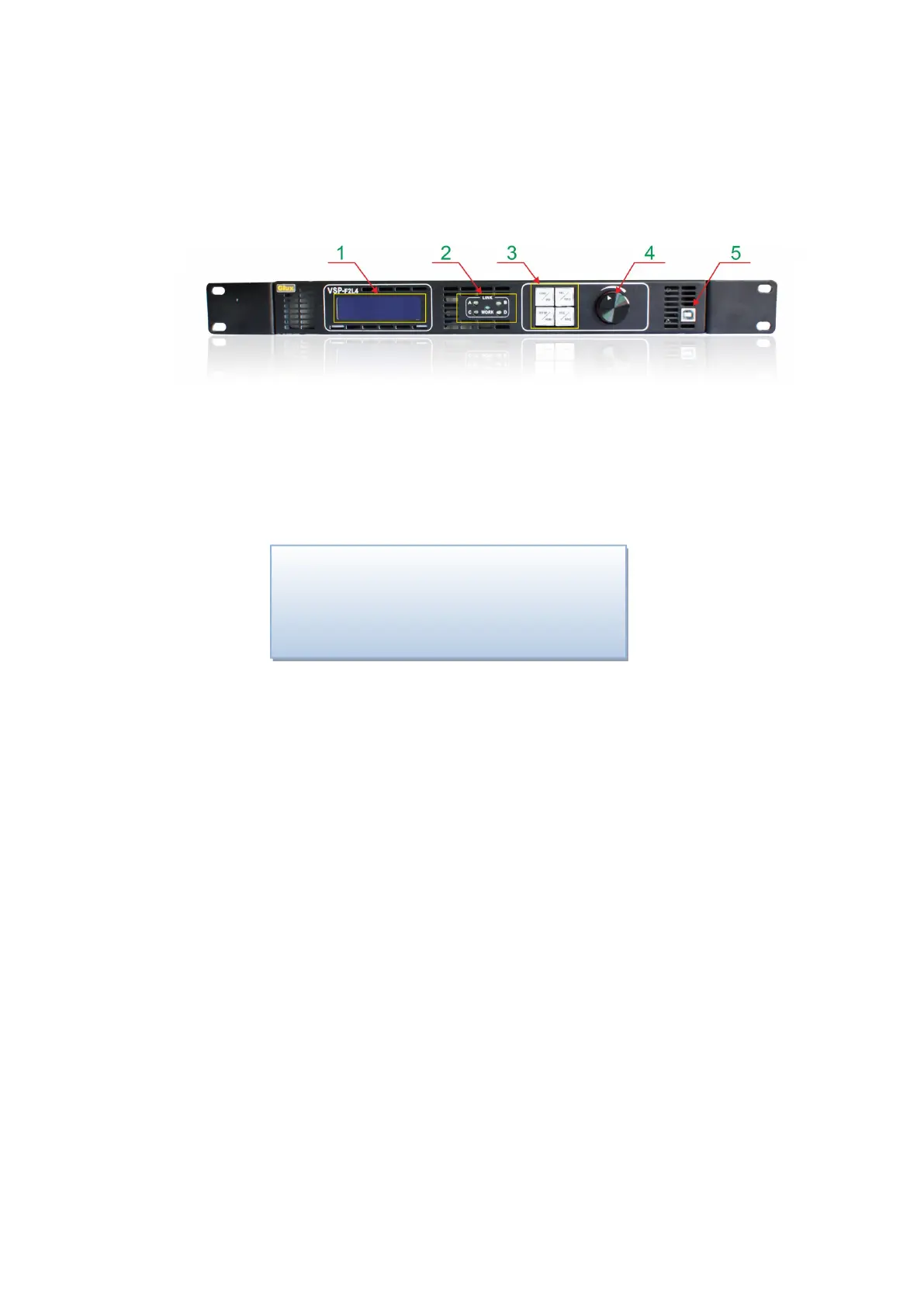

1.3.1 Front Side Introduction of the VSP-F2L4 Controller
(1) LCD display interface: Mainly showing the setting and product information,
shown as below.
Input DVI 1920×1080P 60
Output 1024×768P 60
Brightness 70 IC MBI5041
CYSN39 IP 192. 168. 0.6
We can learn the follow information from the interface:
DVI video signal input; Input resolution is 1920×1080P 60Hz;
Output resolution: 1024×768P 60Hz;
The current brightness of the LED panel is class 70 levels; the code of the product is
CYSN39; The IP address of the controller is 192.168.0.6
(2) Working indicating light: When the controller works well it will flash.
A, B, C, D indicates the status of the OUT1 ~ OUT4 four groups’ signal.
(3) Function buttons of VSP-F2l4 controller
The four buttons are SEND/DVI, SEL/SDI1, SETUP/HDMI, and ESC/SDI2.
SEND/DVI button: Click the key to send your setting or select DVI input signal.
SEL/SDI1 button: Click it to enter the next level menu or select SDI1 input signal.
SETUP/HDMI button: Click it to enter setting parameters states or select HDMI
input signal.
ESC/SDI2 button: Press it to return to the previous menu or select SDI2 input signal.
(4) Parameter Control Knob: Turn the knob can browse the submenu items. The
parameter will be higher if the knob is rotating clockwise. If you want to lower the
parameter, please turn the knob counterclockwise.
(5) USB Communication Port: The USB port that is used to communicate with the
control software on computer to set the LED panel parameters.
