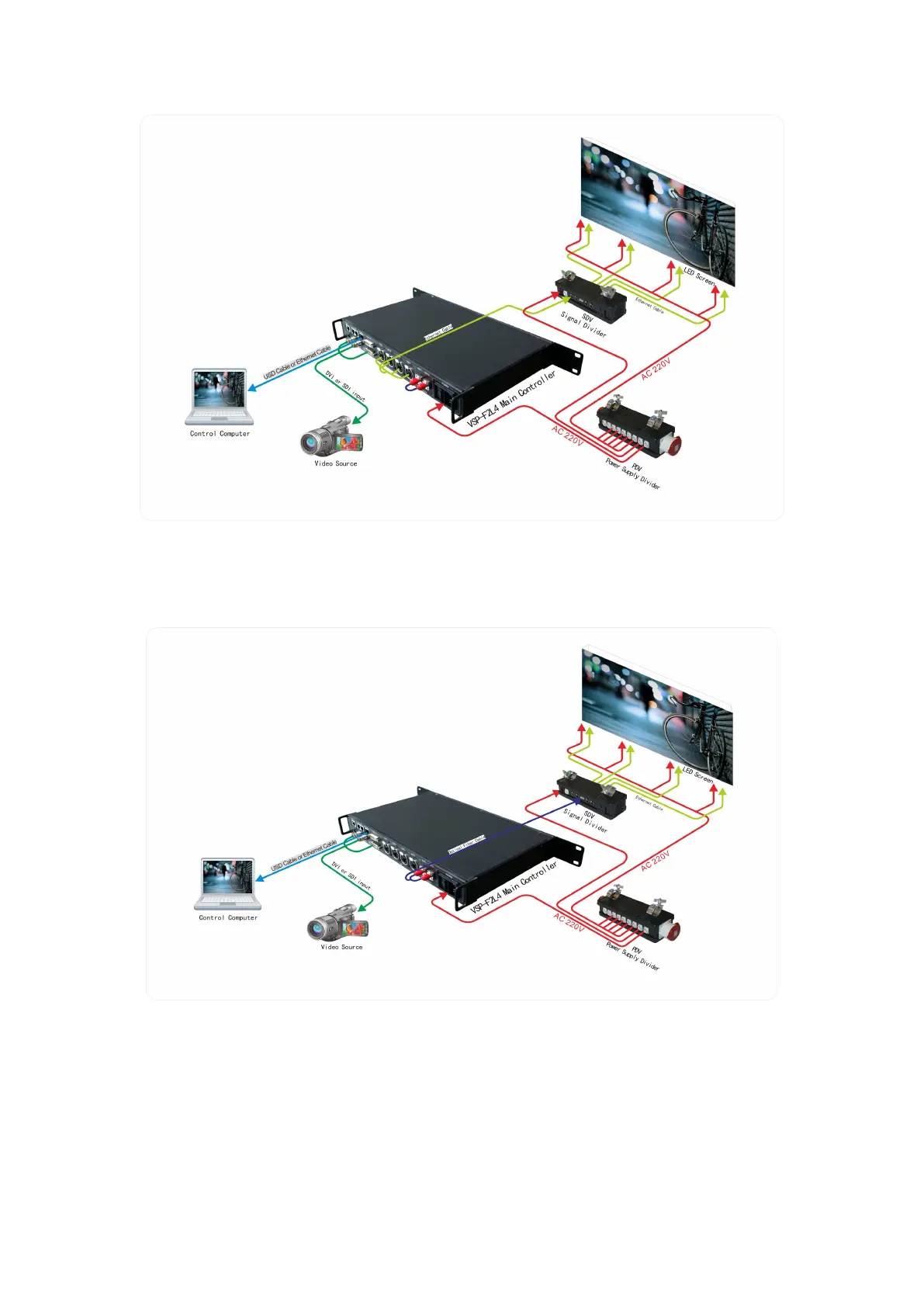

System signal connection method 2 (Transmission distance
≤
150m)
Signal
→
by CAT6 Ethernet cable
→
to Signal divider
→
by signal cable
→
to screen
System signal connection method 3 (Transmission distance
≤
10Km)
Signal
→
by optical fiber cable
→
to Signal divider
→
by signal cable
→
to LED screen
The optical fiber cable type should be single mode.
Which method you choose will depend on the control distance and the size of
LED screen. Method 2 and the method 3 are recommended especially in the case of
larger LED screens or long distance transmission.
