GMC Ultium - Mounting the Cable Wall Mount

R 03MAR22
PART No.
SHEET
ALL INFORMATION WITHIN ABOVE
BORDER TO BE PRINTED EXACTLY
AS SHOWN ON 8.5 x 11 WHITE 16
POUND
NON-BOND RECYCLABLE
PAPER.
PRINT ON BOTH SIDES,
EXCLUDING TEMPLATES. TO BE
UNITED IN ACCORDANCE
WITH
GMCCA SPECIFICATIONS.
Date
Revision
Auth
DR
Title GM Ultium EV Charging Station
User Manual
03MAR21 First Re l
SAR
PART No.
SHEET
AH
8
3. Reattach the GM Ultium EV Charging Station on
the mounting bracket using the previously removed
screws from Step 1.
If a padlock has been purchased, secure the unit by
locking the padlock on the lockingscrew.
1. Unscrew the two screws at the bottom to access the
mounting plate, keep the screws.

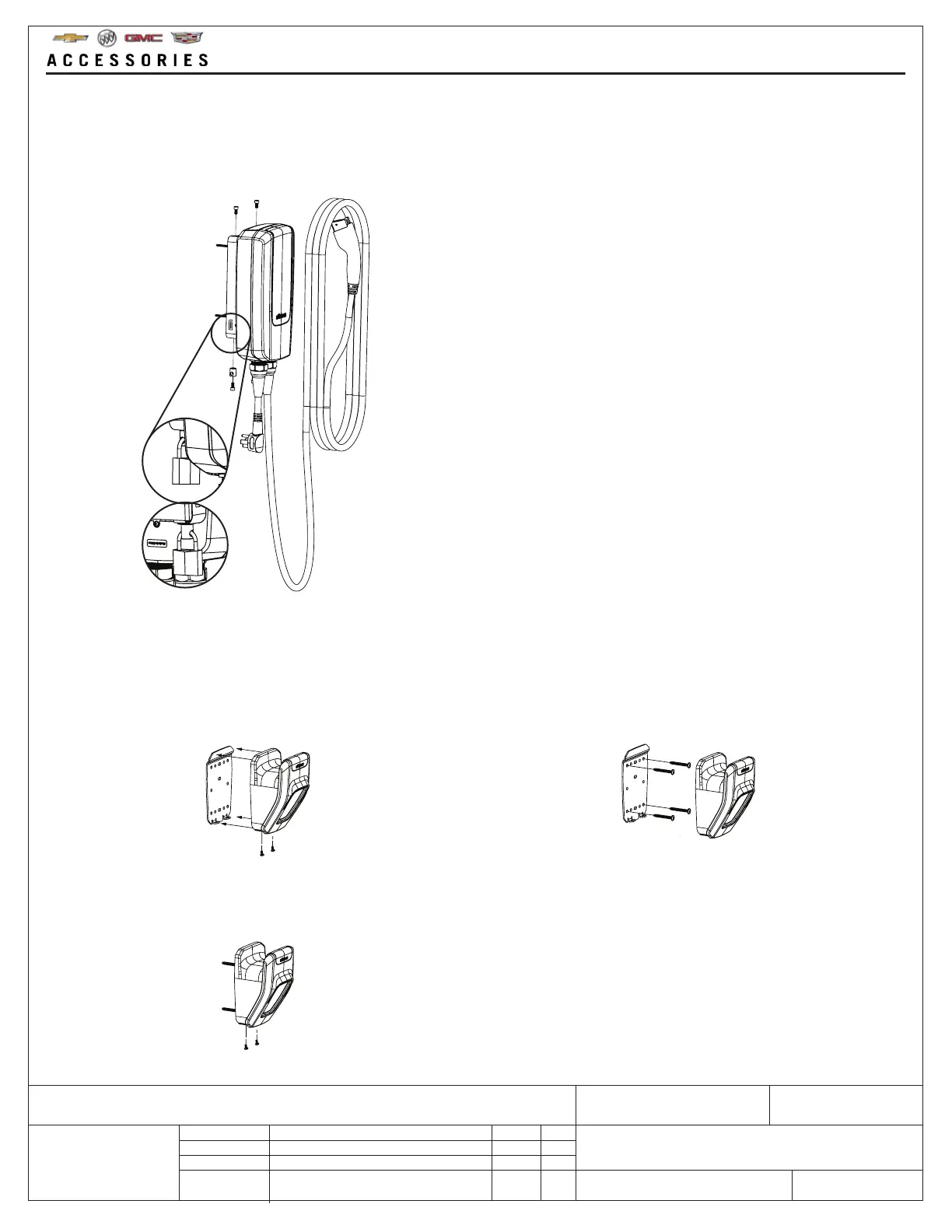

3.1.2 MOUNTING THE CABLE WALL MOUNT
3. Reattach the cable wall mount on the mounting
bracket using the previously removed screws (see
step 2).
2. Mount the mounting bracket to the intended surface,
using the screws provided.
Note: a drilling template is provided to assist
installation.
