Title GM Ultium EV Charging Station
User Manual
03MAR21 First Re l
13
1.

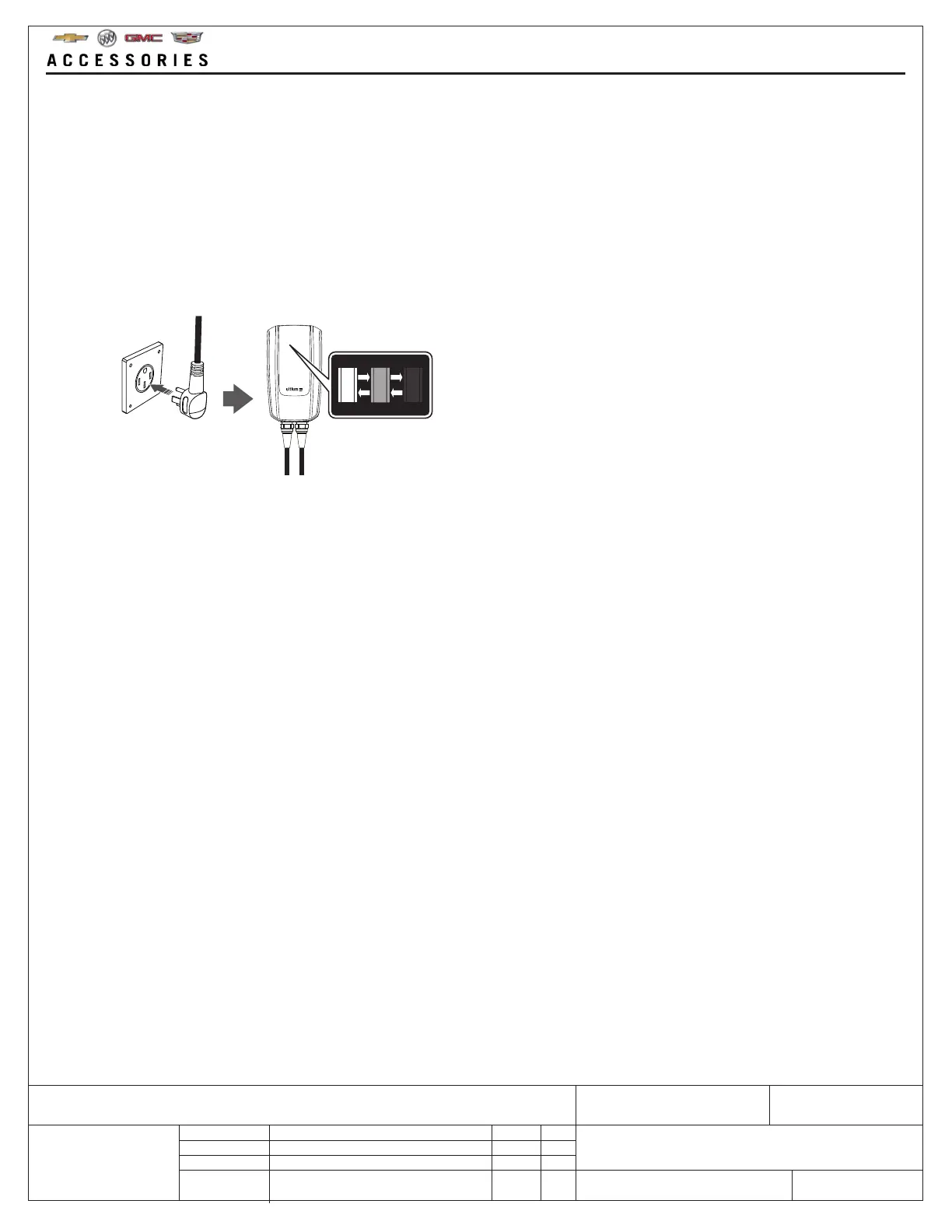

!CAUTION: Where possible to do so, switch off the supply power at the circuit breaker to the GM Ultium EV
Charging Station before connecting the NEMA 14-50 plug.
Connect the power cable to the outlet with the NEMA 14-50 plug → restore the power supply to the GM Ultium EV
Charging Station from the circuit breaker.
When the GM Ultium EV Charging Station is connected to the outlet, and powered on, ZONES 1 & 2 will fade in and
out.
2. Bluetooth® connection:
• Android – Go to “Settings” → “Connected Devices” → “Connection preferences” → “Bluetooth®” → “Activate”.
• iOS – Go to “Settings” → “Bluetooth®” → toggle to activate.
• Other operating systems – Refer to the smart mobile device manual to correctly establish the Bluetooth® connection.
3. Install the GM My Brand App:
• Android – On the smart mobile device go to “Play Store” → search for “My Brand” → “Install”.
• iOS – On the smart mobile device go to “App store” → search for “My Brand” → “Get” → “Install”.
• Other operating systems – Refer to the smart mobile device manual to correctly select the App store and install the
My Brand App.
4. Open the GM My Brand App and follow the instructions to register an account and configure settings.
5.
To pair the smart mobile device, the GM Ultium EV Charging Station must not be connected to a vehicle.
The pairing mode is always active.
When paired, the smart mobile device can be connected to the GM Ultium EV Charging Station during any point of
use.
5. OPERATING INSTRUCTIONS
