Title GM Ultium EV Charging Station
User Manual
03MAR21 First Re l
12

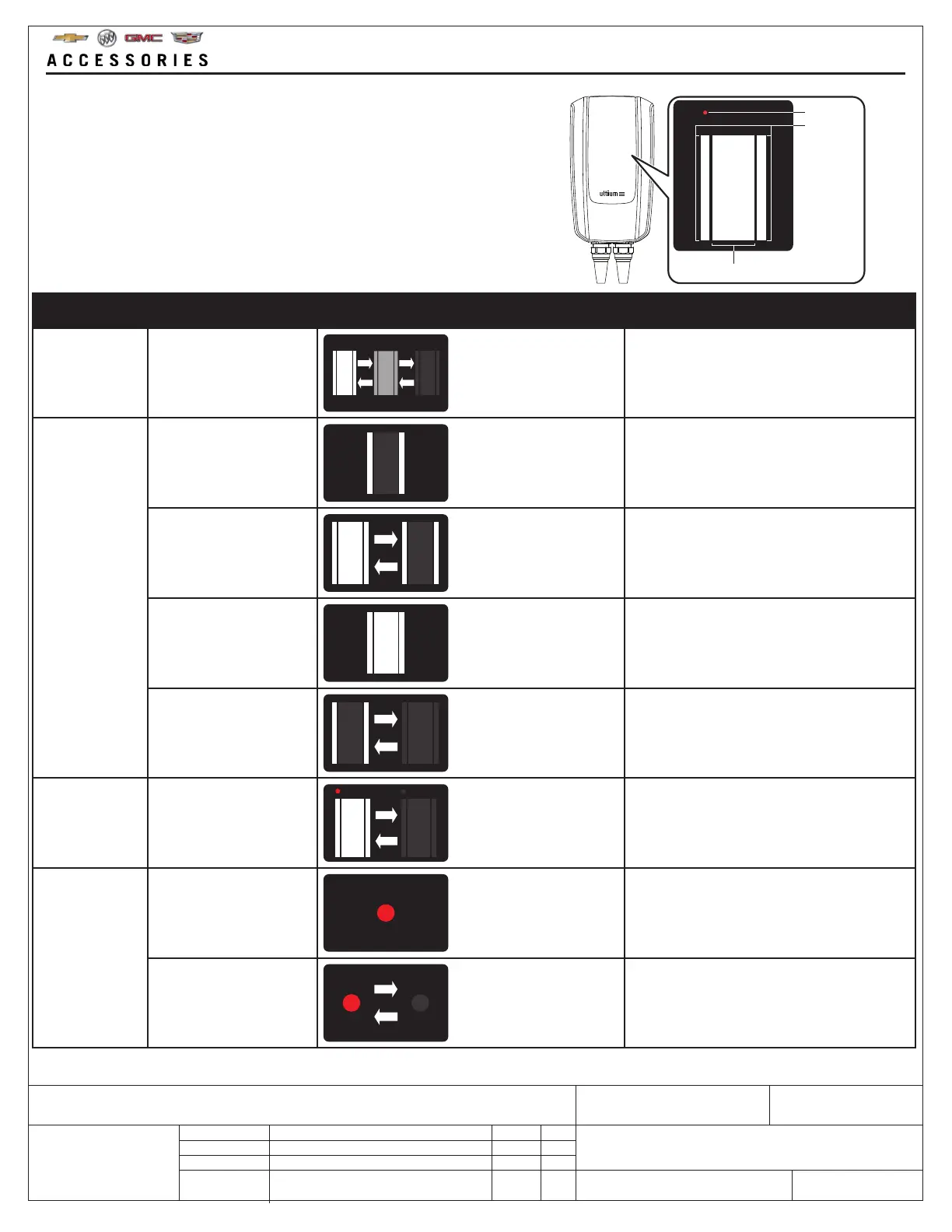

4. INDICATOR OVERVIEW
ZONE 1
ZONE 2
ZONE 3
The EV Charge Station is equipped with an indicator panel
located on the from of the unit.
The indicator panel displays charge status and errors.
FUNCTION DESCRIPTION INDICATION ACTION
POWER Power is on
ZONE 1: FADING
ZONE 2: FADING
No action required, device is functional
CHARGING
Charge cable correctly
connected
ZONE 2: SOLID LIGHT No action required, device is functional
Charging in progress
ZONE 1: FLASHING
ZONE 2: SOLID LIGHT
No action required, device is functional
Charging complete
ZONE 1: SOLID LIGHT
ZONE 2: SOLID LIGHT
Vehicle fully charged → charge cable can be
removed and stored
For more information, refer to:
OPERATING INSTRUCTIONS → STEP 10
Charging paused ZONE 2: FLASHING
Charging manually paused via the
Manufacturer App → Refer to App for further
information or to resume charging
UPDATE Software update ALL ZONES: FLASHING
A software update is in progress. For more
information, refer to:
TROUBLESHOOTING → SOFTWARE
ERRORS
Hazardous error ZONE 3: SOLID LIGHT
For more information, refer to:
TROUBLESHOOTING
Manual resettable error ZONE 3: FLASHING
For more information, refer to:
TROUBLESHOOTING
