Title GM Ultium EV Charging Station
User Manual
03MAR21 First Re l
11

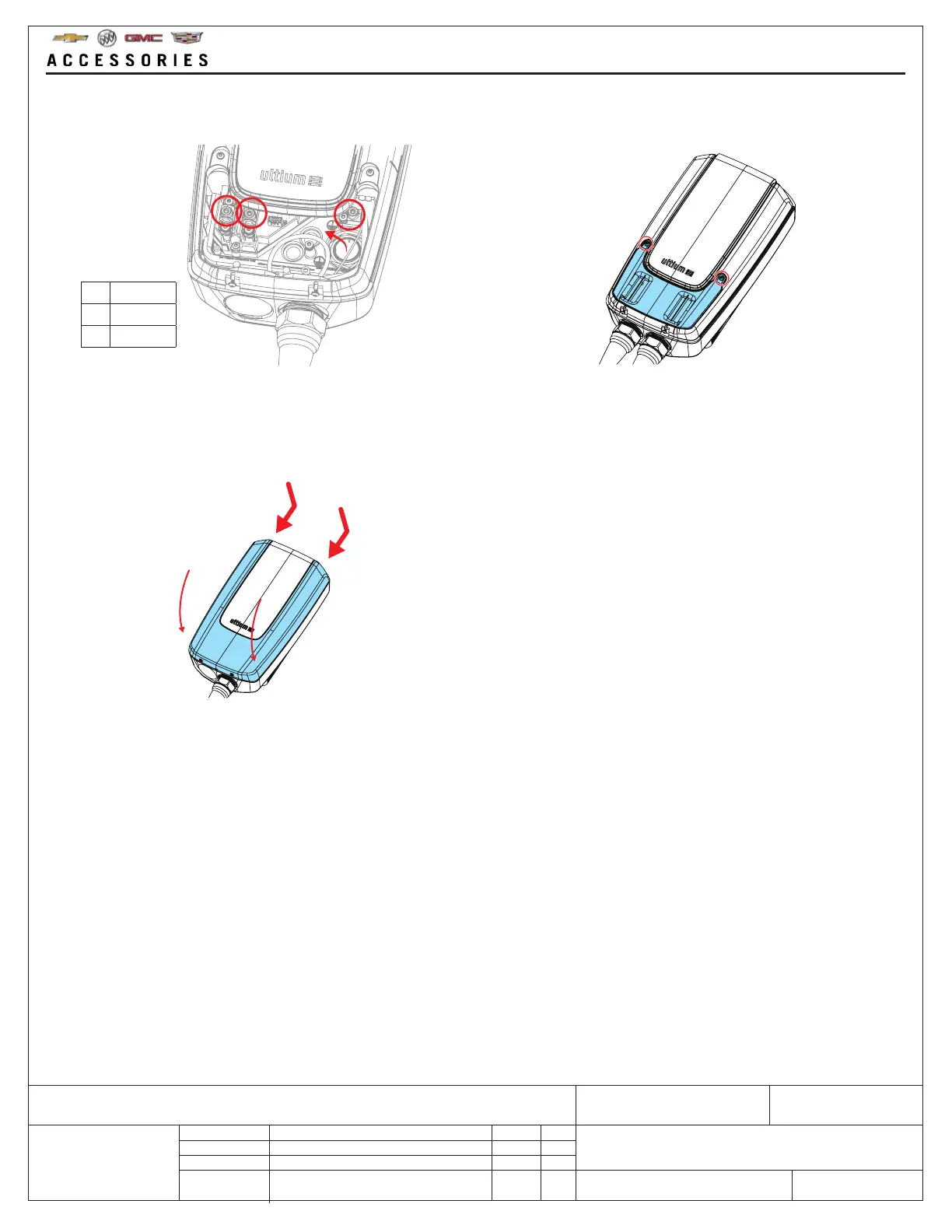

7. Re-attach the front cover with its two screws and
tighten to 0.7 ft/lbs (1 Nm). The hardwire installa-
tion is now finished.
5. Install the cables from the direction shown in the
terminals and tighten the terminal screws to 2.5 ft/
lbs (3.5 Nm).
6. Re-attach the service lid with its two screws and
tighten the two screws to 0.7 ft/lbs (1 Nm).
NOTE: Components may have been removed for image clarity.
1 2
3
1 L1
2 L2
3 GROUND
To Next Page
