Title GM Ultium EV Charging Station
User Manual
03MAR21 First Re l
10

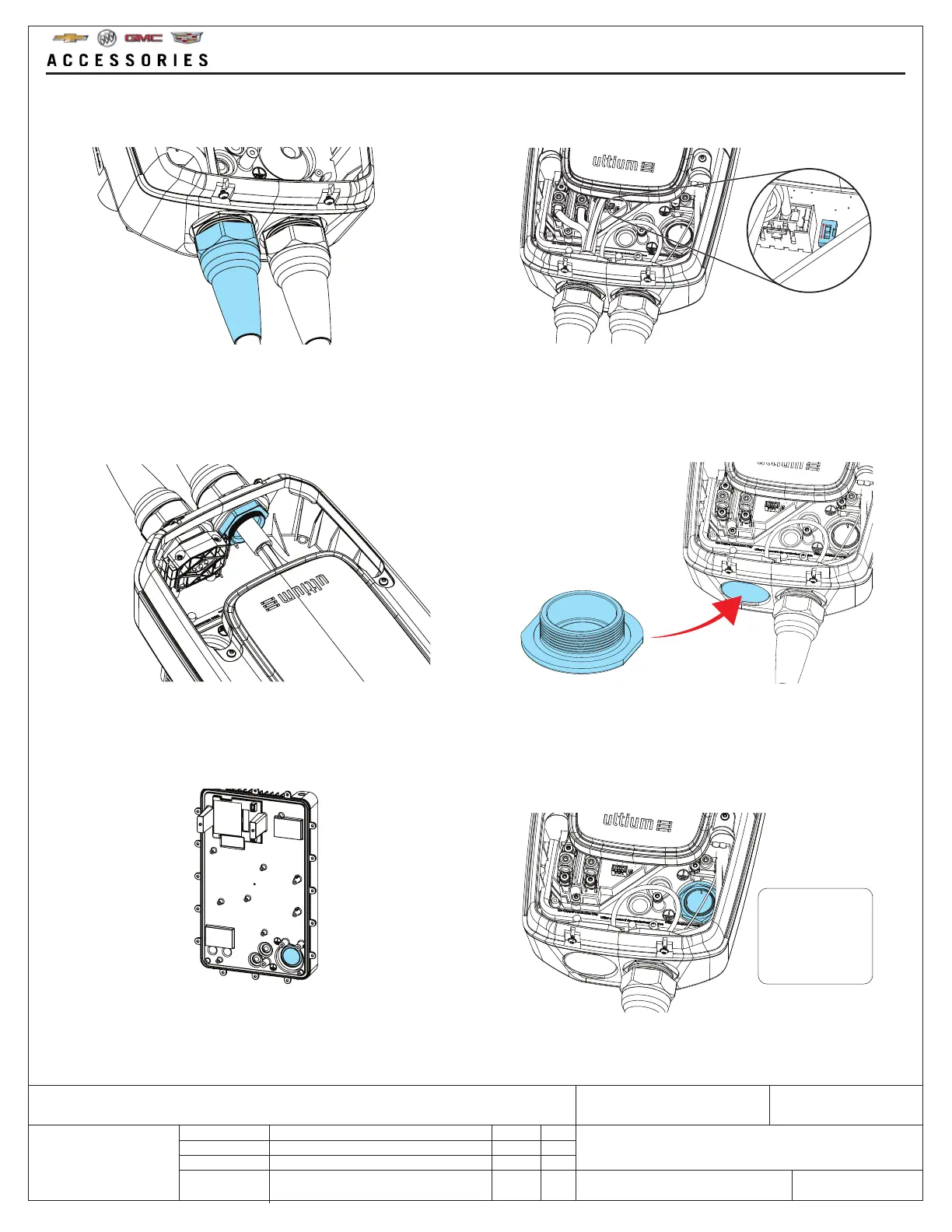

5. Loosen the nut for the cable gland → pull out the
cable.
6. Change position of the switch (the switch is high-
lighted in the image). A small screwdriver may be
required to assist.
NOTE: Components may have been removed for image clarity.
1. Remove the nut and pull out the cable gland. 2. Insert the blind plug included with the accessory
kit from the bottom into the opening for the cable
gland and secure it with the nut (from Step 1) and
tighten it to 131 ft/lbs(13 Nm).
3. Unscrew the blind plug provided in the heatsink. 4. Make sure a suitable 1” water tight conduit com-
pliant to type 4X and an adapter is used to fit the
1.3 in (33.7 mm) aperture shown → Push the new
(round) cable through the aperture.
NOTE: Components may have been removed for image clarity. NOTE: Components may have been removed for image clarity.
NOTE: Components may have been removed for image clarity.
Make sure the
adapter does not
protrude to the rear
of the unit so that
it will interfere with
wall mounting.
