2.3 Outside Dimension of the Device
PV1 PV2
GRID
LOAD
WIFI
CANRS485Ethernet
BAT
SETDRED
550
610
192

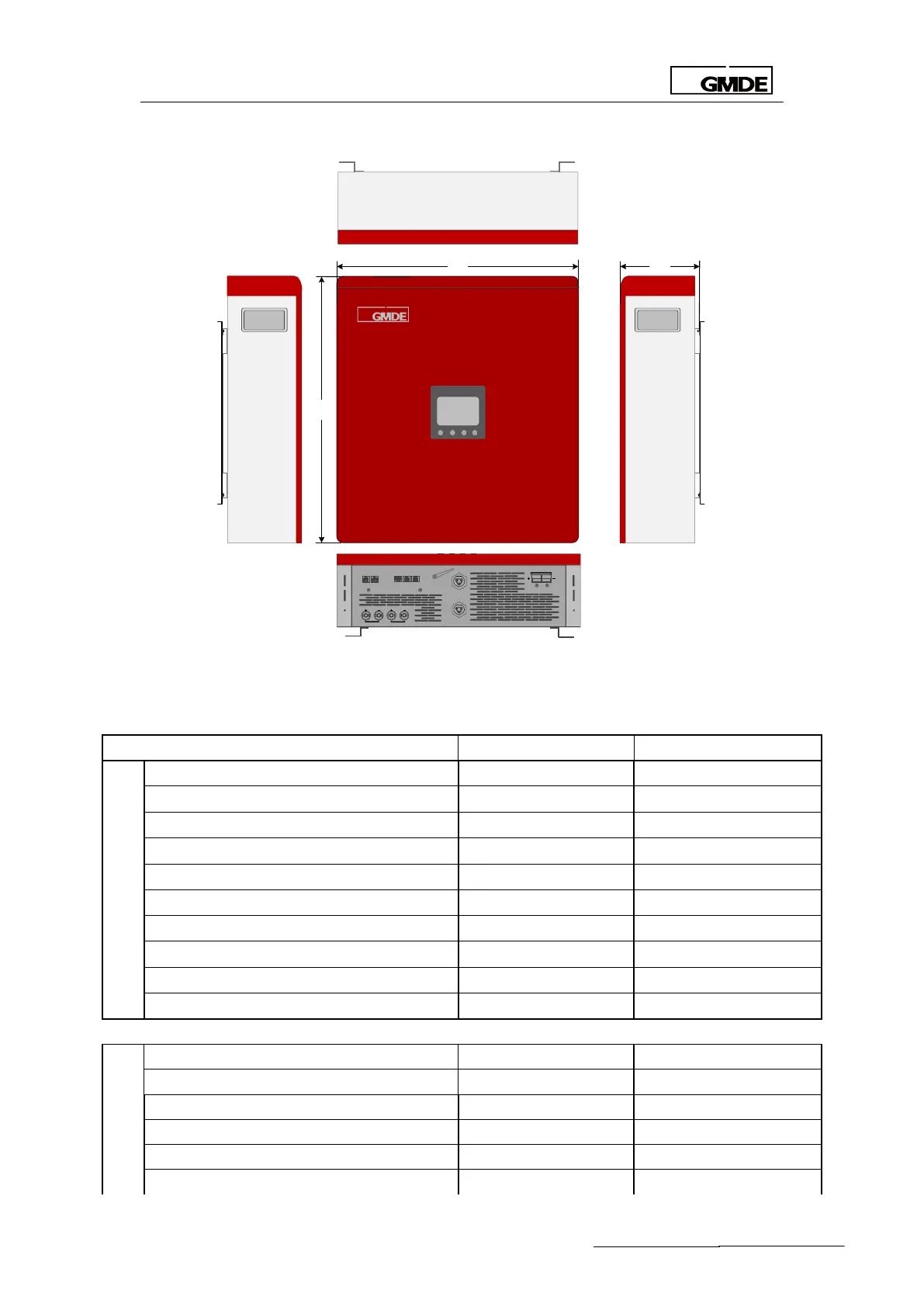

Figure 3 Outside dimension of Powervortex 4600/ 5200TL
2.4 Technical Data
MODEL LIST
Powervortex4600TL
Powervortex5200TL
INPUT PV
PMAX PV [W]
4600
5200
VMAX PV [Vdc]
580
580
ISC PV [A]
2*18.8
2*18.8
MPP Voltage Range VMPP[Vdc]
125-550
125-550
Max. Input Current [A]
2*15
2*15
MPP Full Power Voltage Range [Vdc]
153-550
173-550
Input DC Operating Voltage Range [Vdc]
125-550
125-550
Start PV Voltage [Vdc]
125
125
Stop PV Voltage [Vdc] (PCE Shutdown)
105
105
Overvoltage Category (OVC)
OVC II
OVC II
INPUT BAT
VMAX BATTERY [Vdc]
60
60
VMIN BATTERY [Vdc]
40
40
Maximum Charging Power [W]
3000
3000
Maximum Discharging Power [W]
3840
3840
Maximum Charging Current [A]
60
60
Maximum Discharging Current [A]
80
80
