Global Mainstream Dynamic Energy Technology Ltd.
- 23 -
User Manual
Powervortex 5200TL hybrid inverter
Item
Symbol
Meaning
Illustration
①
ESC
Cancel
Move back to the upper item or close
②
▲
Up
Move back to the upper item or previous
page
③
▼
Down
Move forward to next item or next page
④
OK
Enter/ Escape
Enter into or exit from the current page
Table5 LCD Function introduction
4.1.2 LCD Indication Lights
Item
Definition
Description
PV operation light
Light on when hybrid inverter system is running smoothly
Battery operation
light
Light on if the communication between PV inverter and
Battery manger is fine
WiFi operation light
Light on when the WiFi is running
Warning light
Light on when system warning happens
Table 6 LCD status light definition
4.1.3 LCD Display Definition

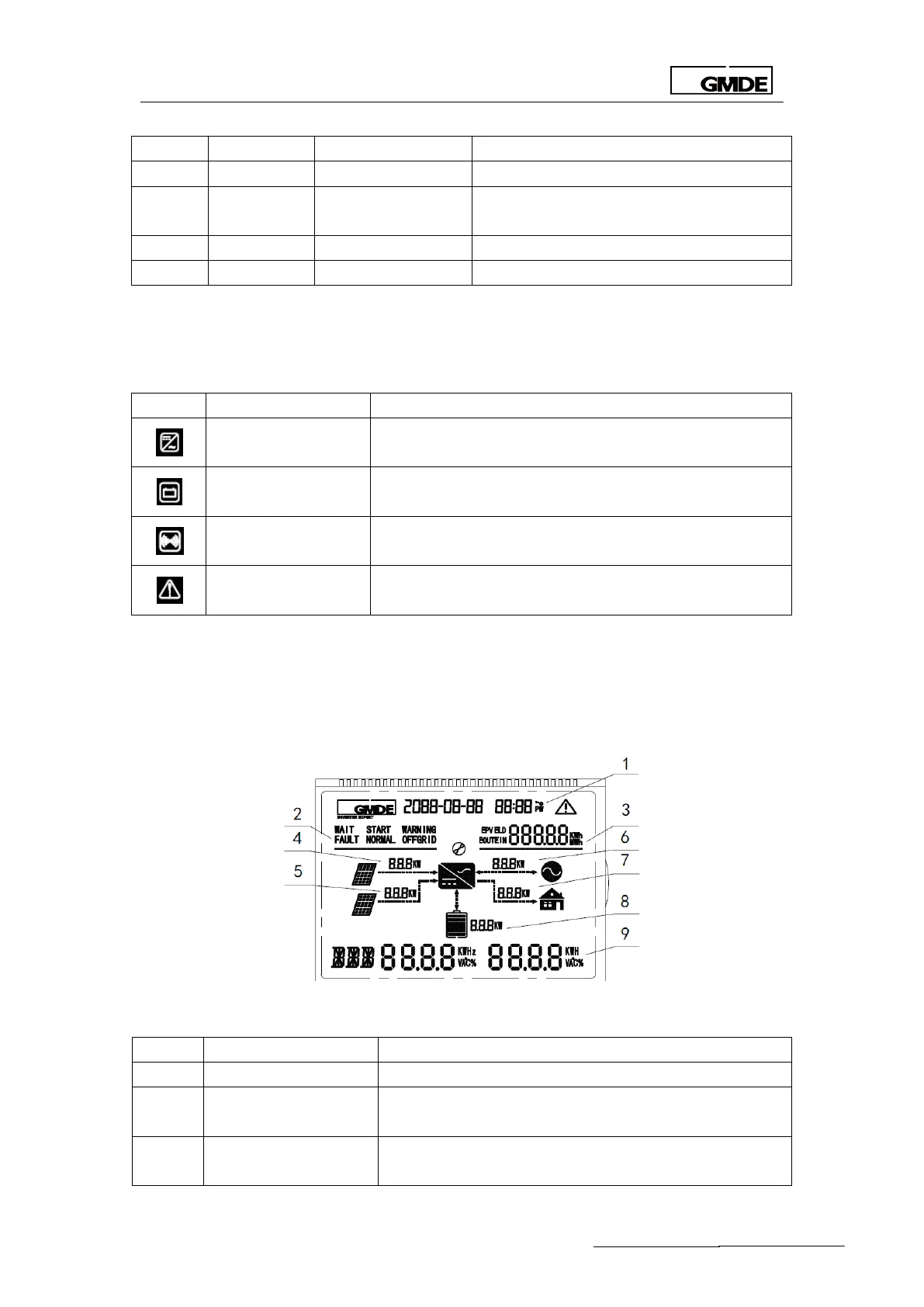

Figure 19 LCD display
No.
Item
Definition
1
Time
Current date and time
2
Systemstatus
Operating status of the inverter(Wait / Start / Normal /
Warning / Fault/Off-grid)
3
Energy
EIN/EOUT/EPV (EIN: battery charging energy; EOUT: battery
discharging energy; EPV: PV generated energy)
