- 22 -
User Manual
Powervortex 5200TL hybrid inverter
RS485 Configuration:
GMDE inverter uses RJ45 jacks as the RS485 communication port. The RJ45 plug pin allocation is
illustrated by Figure

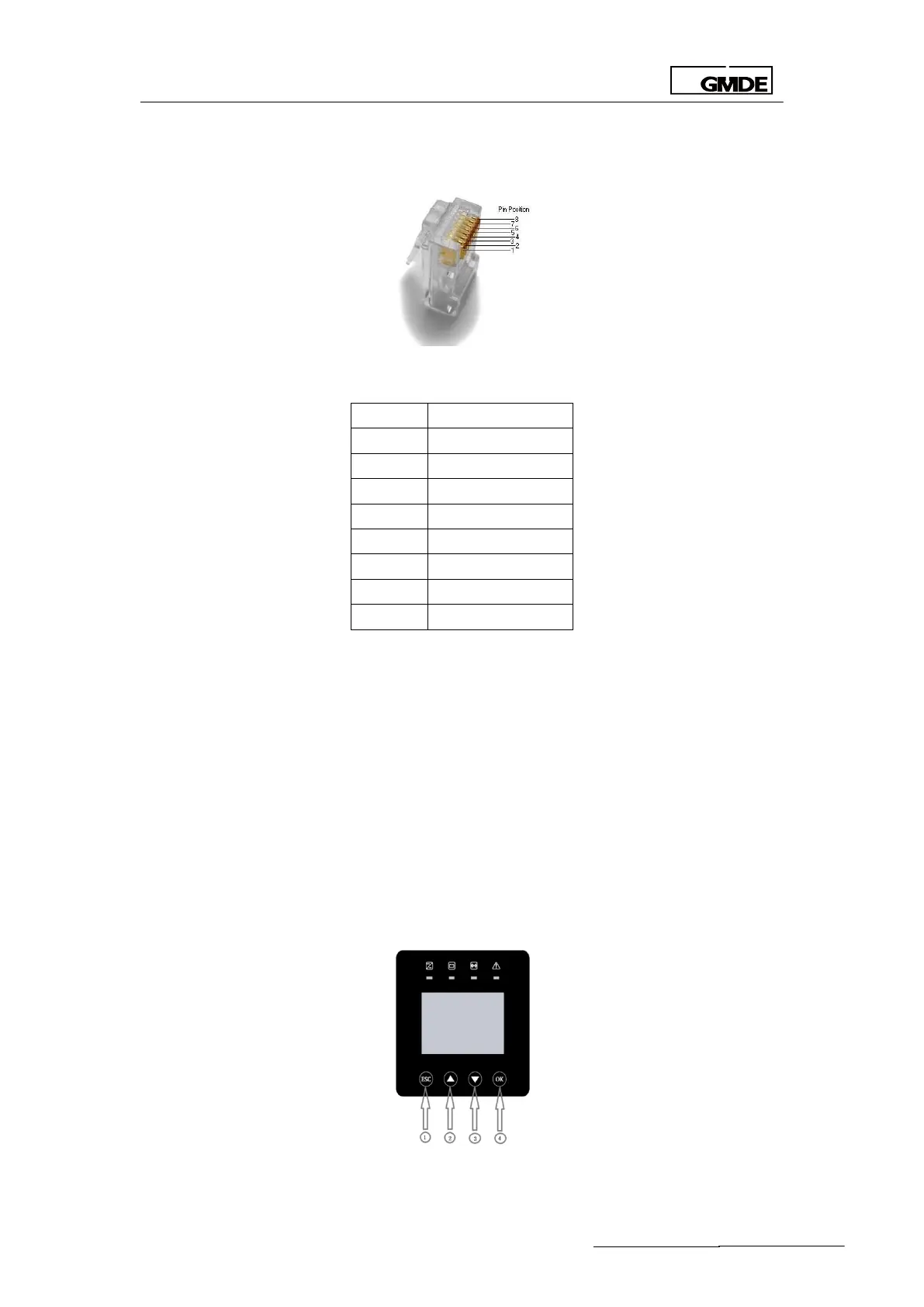

Figure 17 RJ45 plug pins allocation
Pin No.
Illustration
1
--
2
--
3
Data+
4
GND
5
GND
6
Data-
7
5V
8
5V
Table 4 RJ45 plug pins illustration
4. System Settings
4.1 LCD
4.1.1 LCD Interface
All information related to the inverter can be obtained from the LCD display. There are
4navigation keys on the LCD display panel. The functions of these navigation keys and
indication lights on the LCD screen are illustrated as below:
Figure 18 LCD display
