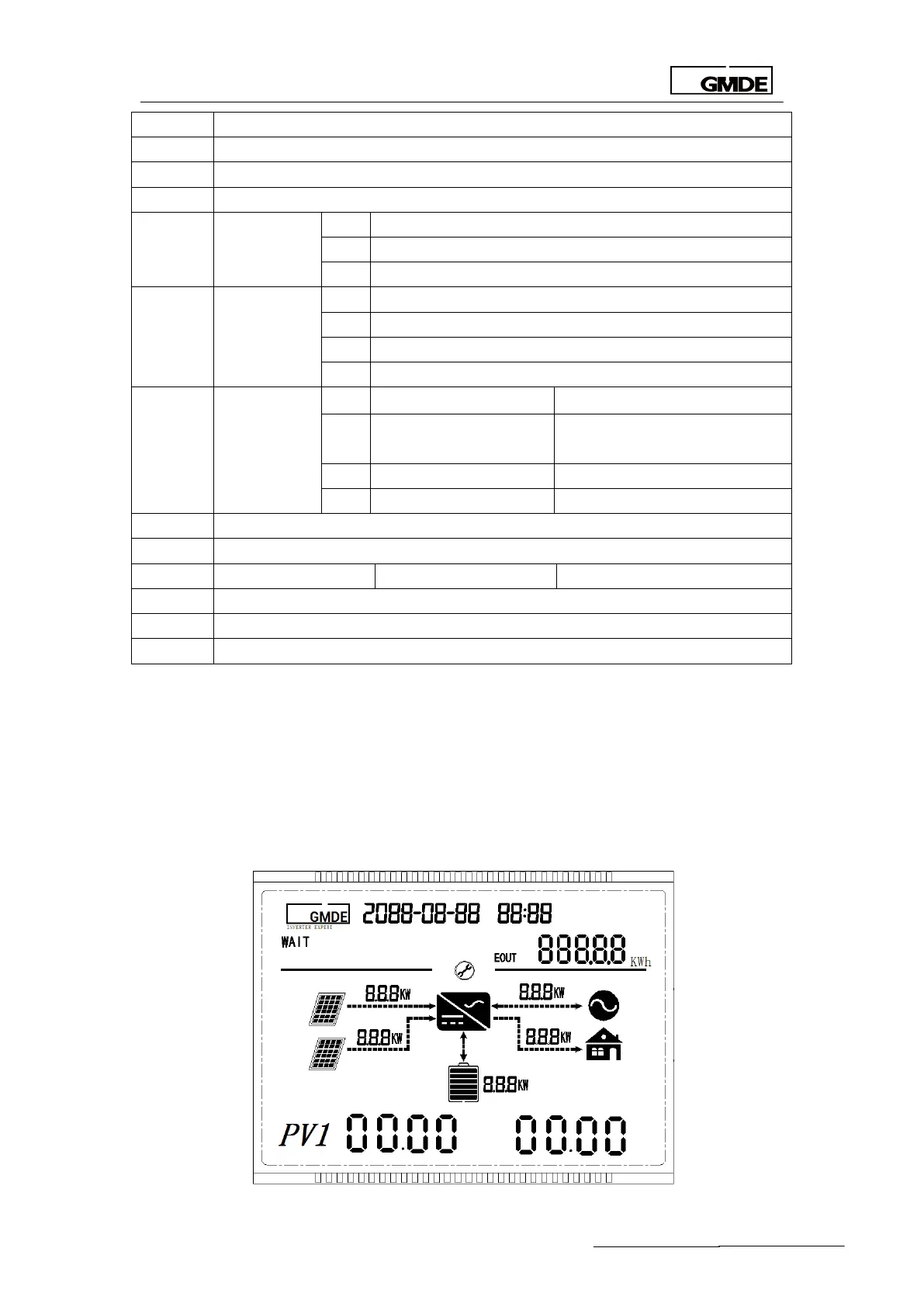

Table 9 LCD parameter settings
Note: the LCD background light will be turned off if no actions within 2 minutes.
Please turn on the DC-switch or get the grid connected with the Powervortex 4600TL /
5200TL,wait until the LCD is displaying the interface as shown in Figure 20. Long pressing“OK”
button for 3 seconds on the display menu to enter into setting menu, the password input
interface as Figure will be displayed.
BVH
Battery charging stop voltage (default 0054V)
BVL
Battery discharging stop voltage(lithium default 0046V, lead-acid default 0047V)
Id
Max discharging current(default 0050A)
Ic
Max charging current(default 0050A)
CER
Certification
00
AS4777 (default)
01
02
CNY
PV
connection
01
Only PV1
02
Only PV2
03
PV independent (default)
04
PV parallel
MDE
Operation
mode
00
PV self of use(default)
01
Forced Time of Use(TOU)
00charging time
01discharging time
02
Back up reserved
04
Slave mode
ADR
Meter address(001-255)
CT
Current transformer(01-99)
BMS
00
Pylon
Communication mode: RS485
SOC
Discharging stop capacity (default 15%)
FED
Grid feed-in power XXXX%(5000*x%)X default 100
RST
Restore to the default factory setting(RST1111)
