GME TX677 - Lcd Icons

TX677 Instruction Manual
13
LCD ICONS

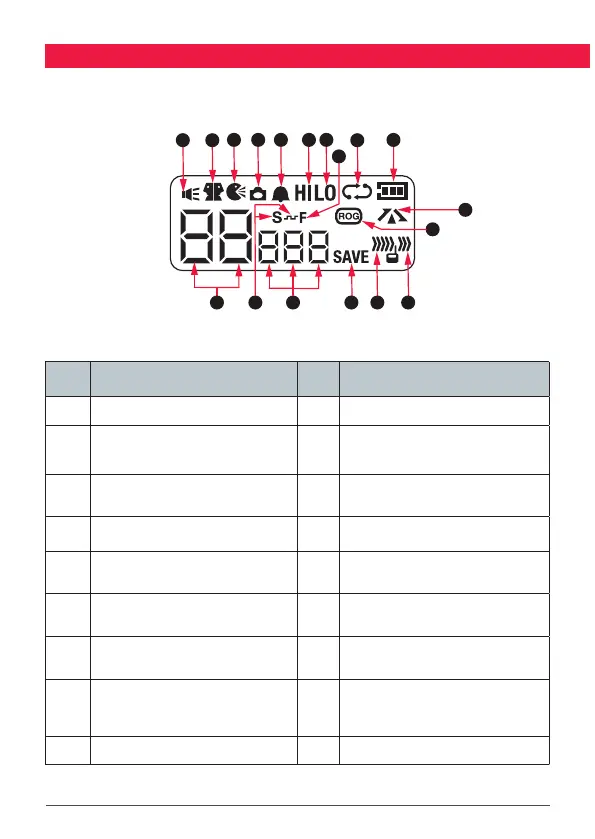

The following gure and table below describes the icons on the LCD screen of the TX677
radio.
TX677 Instrucon Manual
12 June 2018
© 2018 Standard Communicaons Pty Ltd trading as GME. All rights reserved.
13
50157
Content
LCD Icons
The following gure and table below describes the icons on the LCD screen of the TX677 radio.
1
2
3
4
5 6
8
7
9
17
18 16
15 14 13
12
10
11
The table that follows is a numbered descripon of the icons on the LCD screen, as labeled in the
diagram above.
Label
No.
Descripon Label No Descripon
1
Monitor icon:
Appears when the Squelch is open.
10 Baery icon:
Displays baery charge level.
2 Dual Watch icon:
Appears when Dual Watch is acve.
11 Duplex icon:
Appears on channels where Duplex
is enabled.
3 VOX icon: Appears when VOX mode
is acve.
12 Roger Beep icon:
Appears when the Roger Beep tones
are acve.
4 Key Lock icon:
Appears when the keypad is locked.
13 Transmit icon:
Appears when transming.
5 Buon Beep icon:
Appears when buon conrmaon
tones are on.
14 Receive icon:
Appears when receiving signals.
6 High Power icon:
Appears when High TX power is
selected.
15 Power Save icon:
Appears when the radio is sleeping.
7 Low Power icon:
Appears when Low TX power is
selected.
16 CTCSS/DCS display:
Displays the selected CTCSS or DCS
tone when Silent mode is acve.
8 Funcon icon:
Appears when the funcon ‘F’ key
is pressed to acvate secondary
funcons.
17 CTCSS/DCS Silent icons:
Indicates a CTCSS or DCS tone has
been set in the menu.
9 Scan icon:
Flashes when radio is scanning.
18 Channel display:
Displays the selected channel in use.
The table that follows is a numbered description of the icons on the LCD screen, as
labeled in the diagram above.
Label
No.
Description
Label
No
Description
1
Monitor icon:
Appears when the Squelch is open.
10
Battery icon:
Displays battery charge level.
2
Dual Watch icon:
Appears when Dual Watch is active.
11
Duplex icon:
Appears on channels where Duplex
is enabled.
3
VOX icon:
Appears when VOX mode is active.
12
Roger Beep icon:
Appears when the Roger Beep tones
are active.
4
Key Lock icon:
Appears when the keypad is locked.
13
Transmit icon:
Appears when transmitting.
5
Button Beep icon:
Appears when button conrmation
tones are on.
14
Receive icon:
Appears when receiving signals.
6
High Power icon:
Appears when High TX power is
selected.
15
Power Save icon:
Appears when the radio is sleeping.
7
Low Power icon:
Appears when Low TX power is
selected.
16
CTCSS/DCS display:
Displays the selected CTCSS or DCS
tone when Silent mode is active.
8
Function icon:
Appears when the function ‘F’ key
is pressed to activate secondary
functions.
17
CTCSS/DCS Silent icons:
Indicates a CTCSS or DCS tone has
been set in the menu.
9
Scan icon:
Flashes when radio is scanning.
18
Channel display:
Displays the selected channel in use.
