DLV VALVE MANUAL
I NSTALLATION , U SE AND M AINTENANCE
4.1 ELECTRICAL GETTING STARTED:ICONS
0 - OFF 0 - OFF
+
5 TEST AND ADJUSTMENTS
5.1 MONITORING SYSTEM CHECK

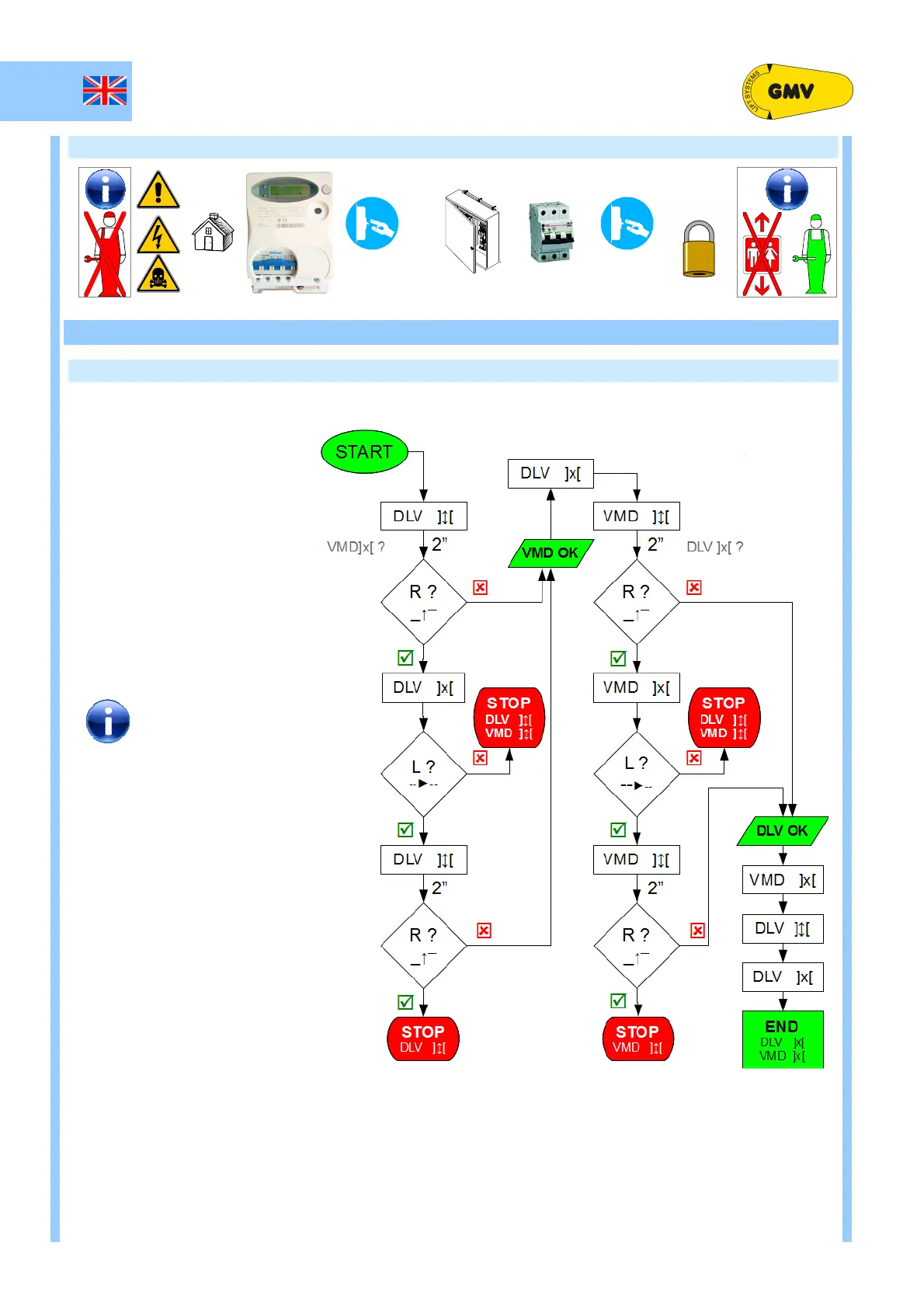

To assure the correct working of the monitoring system of the DLV A3 the control panel should perform a
check operation behind closed doors, at least once a day.
The control panel, during the
test, must:
1. To move the car to the
lower floor
2. To close the doors
3. Wait that the system turns
into the “Free” status
4. Start the test following the
scheme ->
5. At the end of the test, if the
system is not in the “Out of
service” status, turn the
system in normal use.
If the control panel
receives a command
from a push-button
panel during the test,
stop the test, execute
the command (order /
call) and at the end,
restart from point 1
]x[ = Close
]↕[ = Open
 = NO
 = YES
R _↑ = Relevelling
L --►-- = Return at landing
With the car stopped at landing,energize only the DLV A3 valve,holding the main valve VMD de-energized.If all
the components work correctly,the car must stop at landing position.A timed check starts for two sec.to verify a
car movement.In case of movement detection without landing,the system must go into alarm and put the lift out
of service.In case of back-landing,another 2 seconds timed check starts,energizing the the DLV.If the relevelling
does not start,the system is ok.Otherwise,a VMD failure is confirmed (DLV de-energized).
