Doc 0428820 rev. B
Page 13 of 15
Not subject to issue control when printed
2cc coupler
p/n 30-4838800 can
be ordered with GTO
Dept / HQ DK

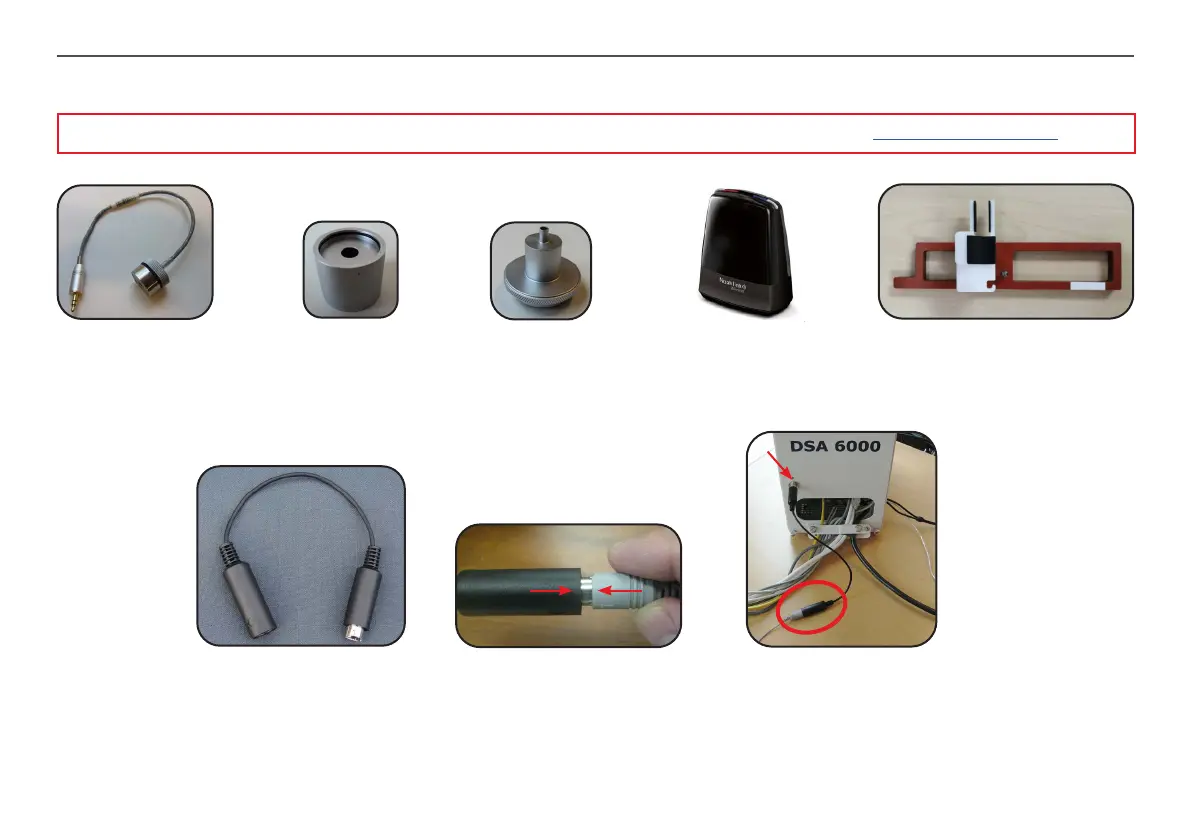

Test Equipment for the DSA6000
COUPL MIC,TM-12,
MEASURED
p/n 18220700
NOAHLINK WL CPD-1
p/n 20310800
EA TEST JIG,CAM80,DSA6000
for nal HI DSA test for C70R&C80R
p/n 22260400
2cc coupler insert BTE
p/n 40B4609601
can be ordered with
GTO Dept / HQ DK
Extension prog cable
p/n 17517800
Note about PROG. CABLE EXTENSION p/n 17517800:
The ext cable is needed for making correct current measurement during DSA6000 HI test on some platform
models. Testing these devices without the extension cable will show an incorrect current measurement.
However, if the ext cable is used during a DSA6000 HI test of a model where the ext cable is not needed,
it will not aect the test. Therefore, to avoid failures and misunderstandings it is safer just to leave the ext
cable on the DSA at all times and use it during test of all devices, no matter if it is required or not
Connect the extension cable to the
prog cable and the DSA as shown
Please also see GTO info doc “GI-01-10-002 – Guide to “WL Only test” - to be found on GTO web https://gto.gnresound.com
