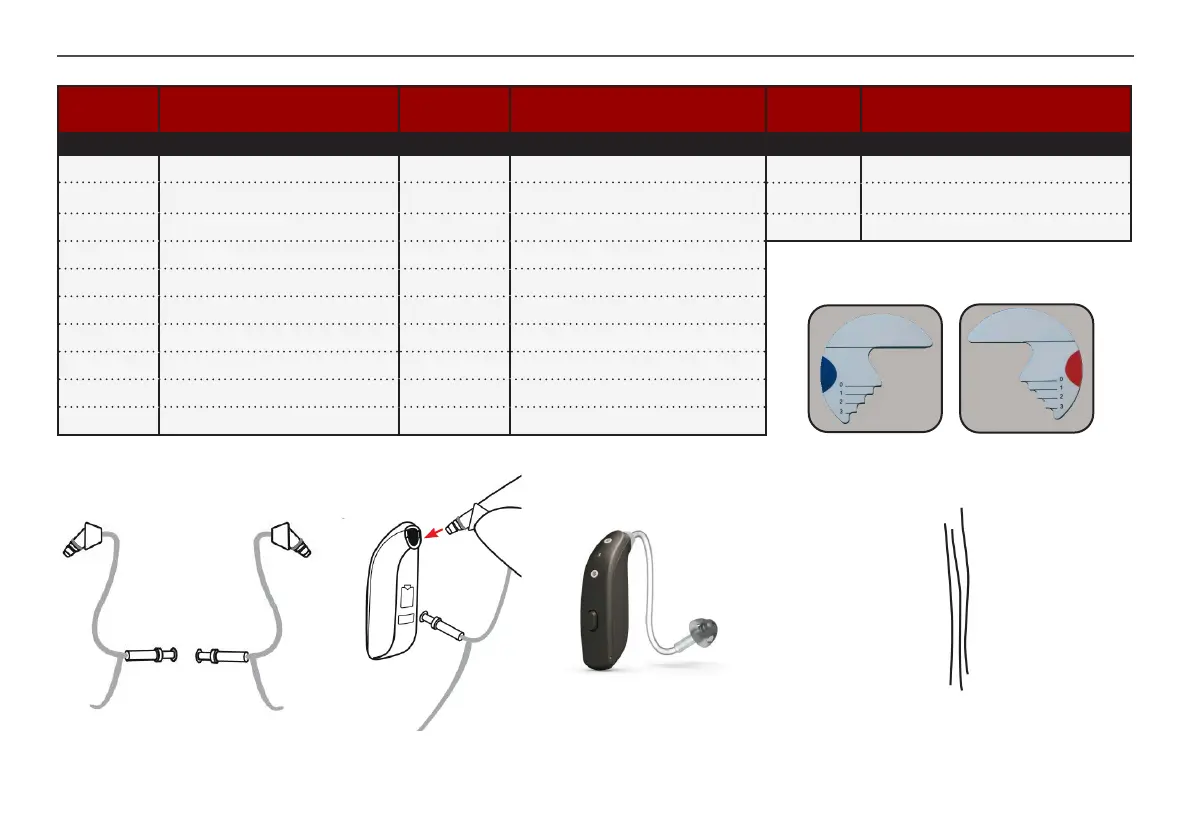

Part List - Thin Tubes & Domes (for C70R models only)
Part No
Description
(Blister packs)
Part No
Description
(Plastic bag)
22161800 THIN TUBE,CAM,R,SL 0,5 PCS 22268400 THIN TUBE,CAM,R,SL 0,BAG,1P
22161801 THIN TUBE,CAM,R,SL 1,5 PCS 22268401 THIN TUBE,CAM,R,SL 1,BAG,1P
22161802 THIN TUBE,CAM,R,SL 2,5 PCS 22268402 THIN TUBE,CAM,R,SL 2,BAG,1P
22161803 THIN TUBE,CAM,R,SL 3,5 PCS 22268403 THIN TUBE,CAM,R,SL 3,BAG,1P
22161804 THIN TUBE,CAM,R,SL 4,5 PCS 22268404 THIN TUBE,CAM,R,SL 4,BAG,1P
22161900 THIN TUBE,CAM,L,SL 0,5 PCS 22268500 THIN TUBE,CAM,L,SL 0,BAG,1P
22161901 THIN TUBE,CAM,L,SL 1,5 PCS 22268501 THIN TUBE,CAM,L,SL 1,BAG,1P
22161902 THIN TUBE,CAM,L,SL 2,5 PCS 22268502 THIN TUBE,CAM,L,SL 2,BAG,1P
22161903 THIN TUBE,CAM,L,SL 3,5 PCS 22268503 THIN TUBE,CAM,L,SL 3,BAG,1P
22161904 THIN TUBE,CAM,L,SL 4,5 PCS 22268504 THIN TUBE,CAM,L,SL 4,BAG,1P
Part No Description
22267800 FITTING KIT,THIN TUBE&HOOK,BE
15168700 CLEANER, TUBE, HE4
15200800 MEASUREMENT TOOL, RIE BTE
15200800 MEASUREMENT TOOL
shown from both sides
Cleaner tubes
HE4
RL
Remove the thin tube from the HI by pulling upwards in a slight angle. Mount the new thin tube
