Doc 0428820 rev. B
Page 14 of 15
Not subject to issue control when printed
HI Test - DSA6000
Please also see GTO info doc “GI-01-10-002 – Guide to “WL Only test” - to be found on GTO web https://gto.gnresound.com

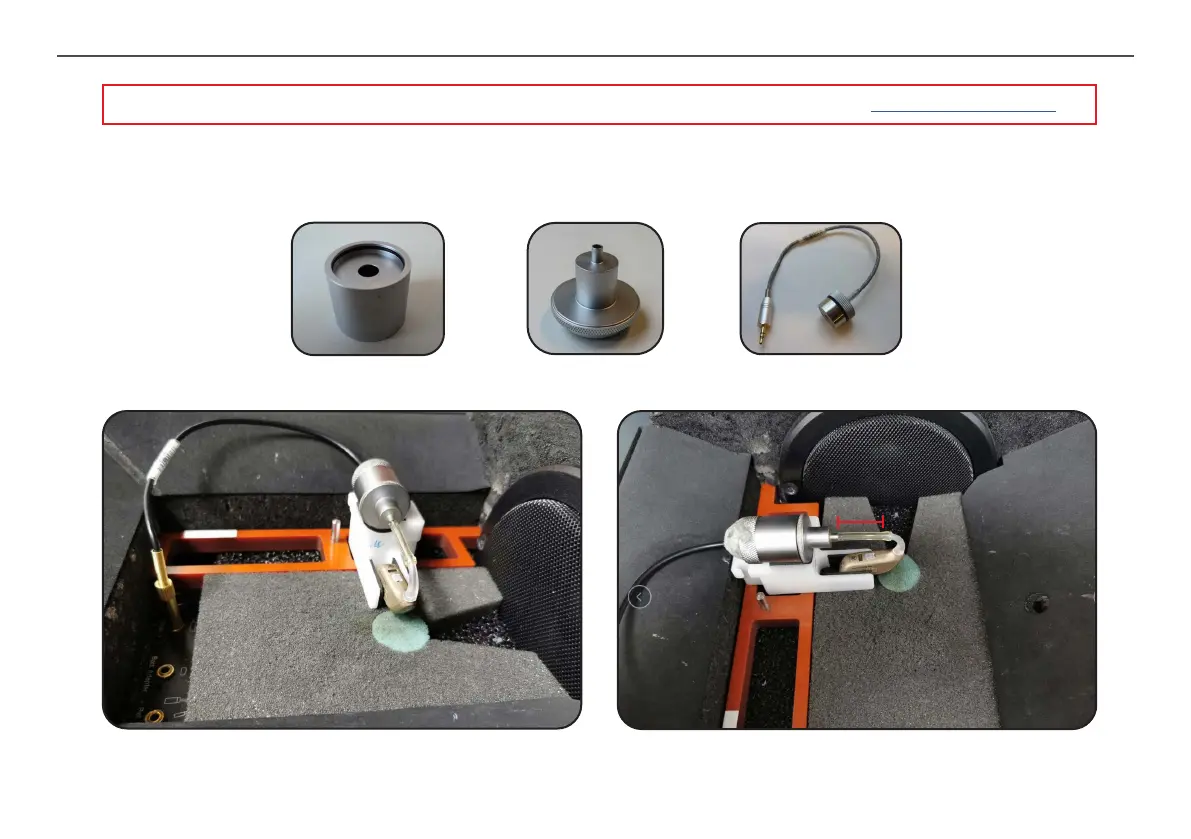

Use of test jig/xture is mandatory during DSA6000 nal HI testing. The HI xture/jig is placed in the brown test frame. Place the HI in the xture
according to pic and place it all in the test chamber as shown and select the correct test tpix. Make sure to follow instructions coming up on the
screen. During the test programme execution the IAD calibration will be performed at the appropriate time. Another benet from the xture is
that the HI is in a well dened position so the telecoil test can be performed without any interaction from the operator
Place the jig/frame with the HI in the ATC4000 test chamber as shown. The test tubing is normal 20 mm eective lenght as for all BTE testing
2cc coupler
p/n 30-4838800
2cc coupler insert BTE
p/n 40B4609601
Coupl Mic,TM-12,measured
p/n 18220700
20 mm
