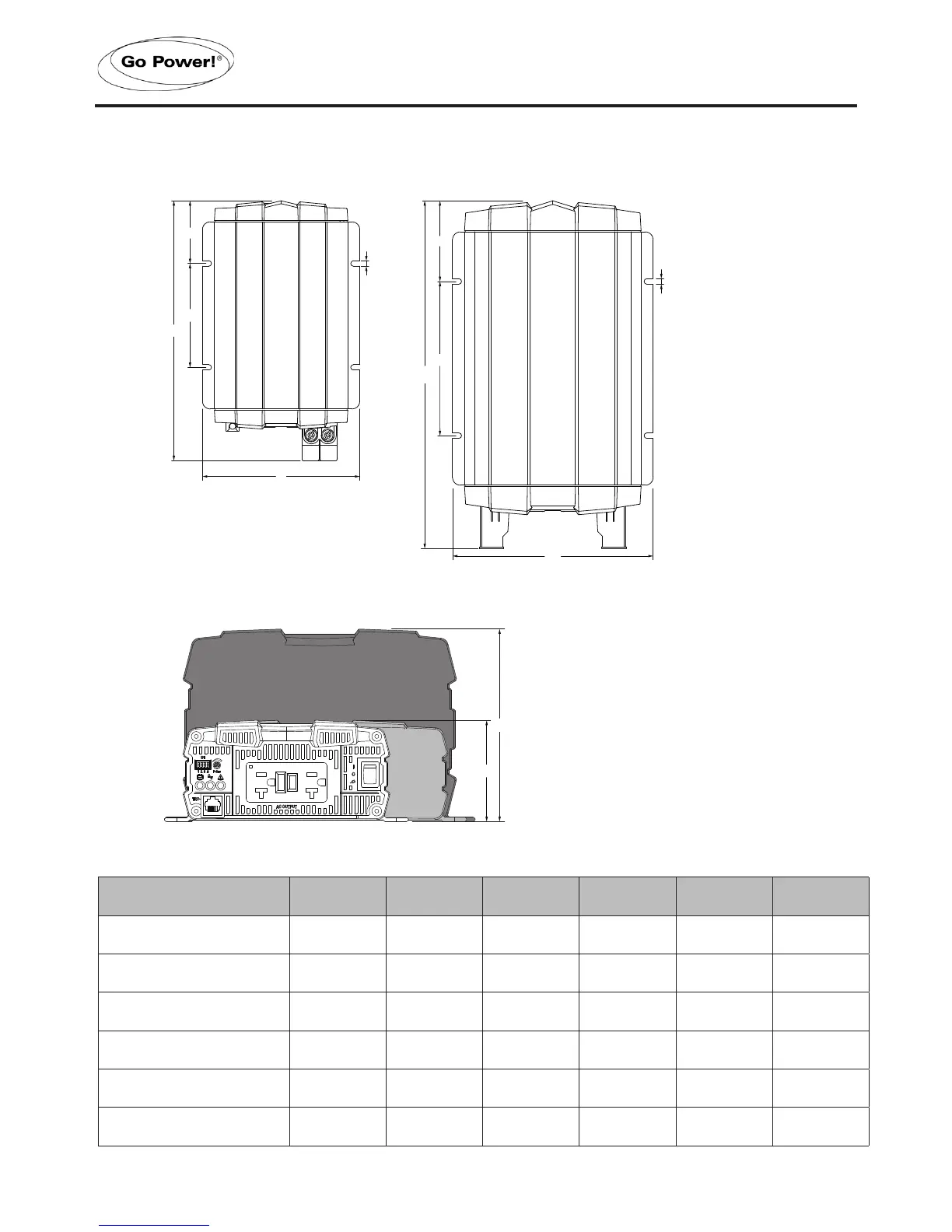

Go Power GP-ISW-1500 - Unit Dimensions

[page 14] | gpelectric.com
DC Input Side
DC Input Side
AC Output SideAC Output Side
ISW-700/1000
ISW-1500/2000/3000/4000
D
E
A
B
C
E
F
F
A
D
B
C
F
F
DC Input Side
DC Input Side
AC Output SideAC Output Side
ISW-700/1000
ISW-1500/2000/3000/4000
D
E
A
B
C
E
F
F
A
D
B
C
F
F
Model A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
GP-ISW700 330 80 132 200 7.0 83
GP-ISW1000 372 69 196 200 7.0 83
GP-ISW1500 421 92 196 248 7.0 83
GP-ISW2000 443 103 196 248 7.0 83
GP-ISW3000 442 103 196 255 7.0 158
GP-ISW4000 462 113 196 255 7.0 158
GENERAL INFORMATION
2.5 UNIT DIMENSIONS
