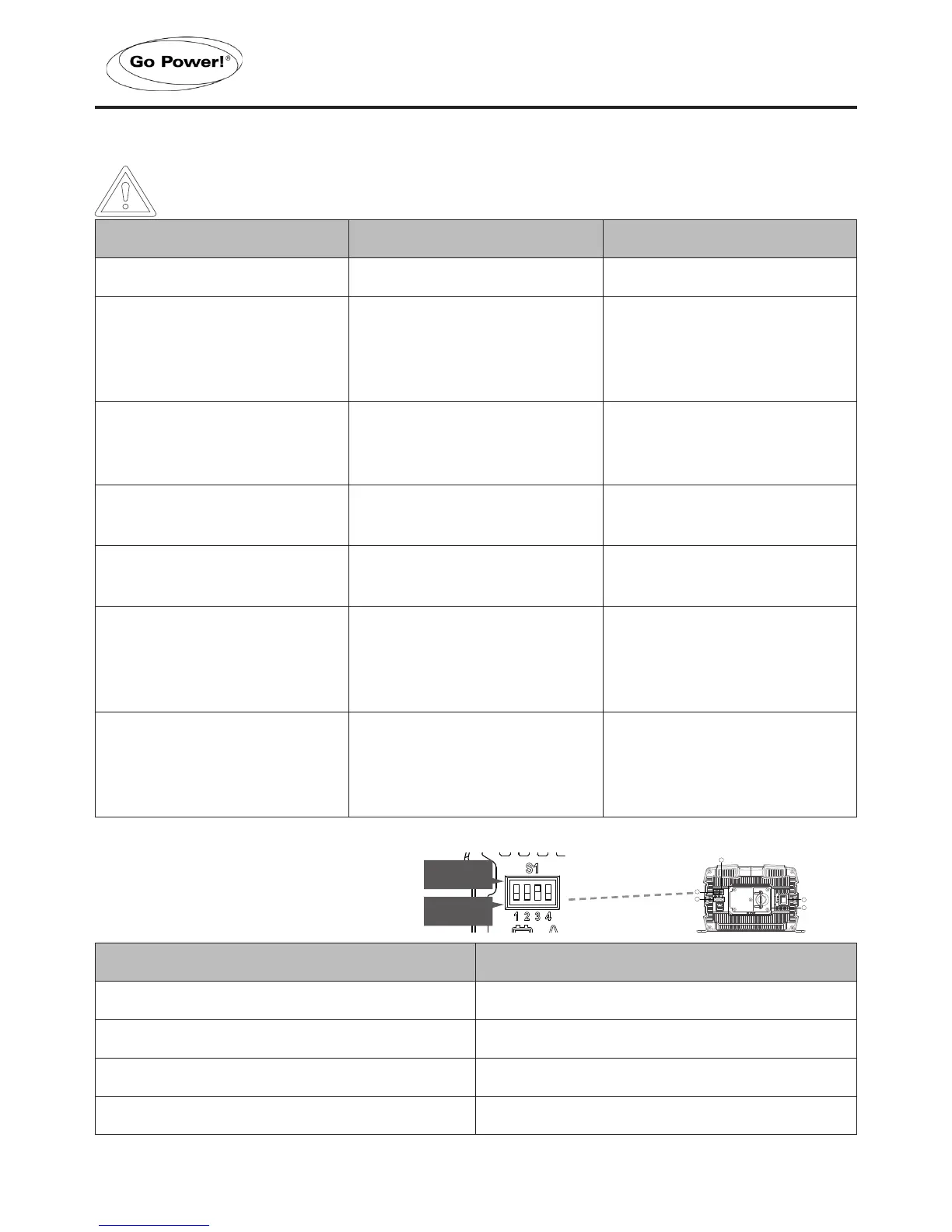

4.4.2 INVERTER STATUS TO DISPLAY FAULT CONDITION
LED status Status Recovery point
Green Normal
Red
Over Current Protection /
Over Load Protection
(AC output short-circuit
and over load)
Red Blink
Under Voltage Protection
(Input DC voltage under
spec)
12.5V @ DC12V system
25V @ DC24V system
Red Fast Blink
Over Voltage Protection
(Input DC voltage over spec)
14.5V @ DC12V
29V @ DC24V system
Orange
Device startup process
abnormal
-
Orange Fast Blink
Under Temperature
Protection
(Heat sink temp. under
-20°C)
> 0°C
(heat sink temperature)
Orange Slow Blink
Over Temperature
Protection
(Heat sink temp. over
80°C)
< 60°C
(heat sink temperature)
4.5 FUNCTION SWITCH
Dip Switch (B) Function
S1 Voltage select
S2 Voltage select
S3 Frequency select
S4 Power saving ON/OFF
ON
OFF
A
A
A
B
C
D
B
C
D
B
C
D
E
F
E
F
E
F
A
B
E
D
C
A
B
E
D
C
A
B
E
D
C
OPERATION
