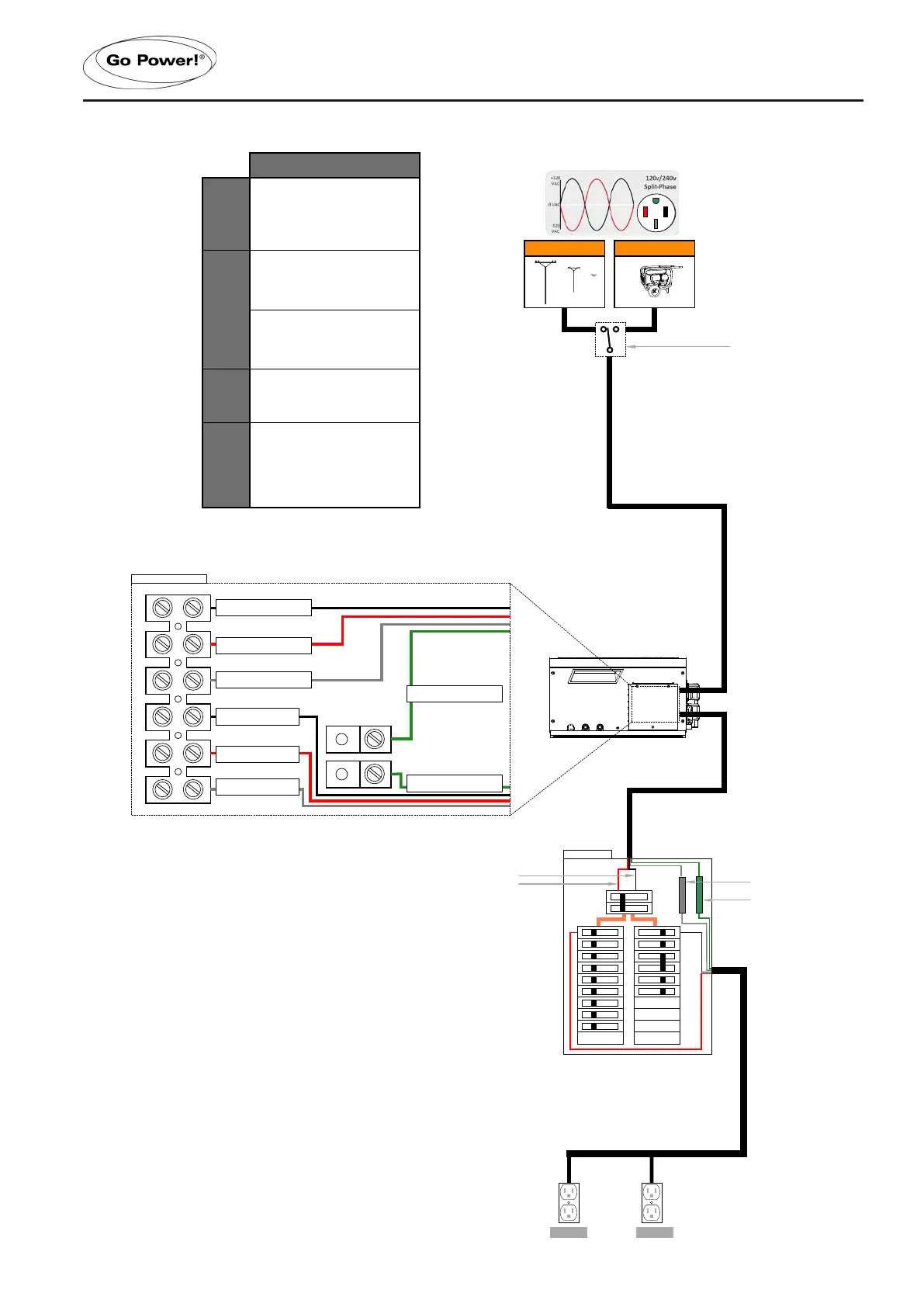

3.6.8 AC WIRING 3 - Split Phase, 50A Service, Dual IN, Dual OUT, Option 1 [No Sub Panel]
INSTALLATION
240 VAC
Shore Power
120/240 VAC
Generator Power
120/240 VAC
120 VAC
IN 1
AC Hot 1 from shore/gen
ACN-IN
AC Neutral from shore/gen
OUT 1
AC Live to main panel
ACN-OUT
AC Neutral to main panel
AC Terminal Block
IN 2
AC Hot 2 from shore/gen
AC Power
Source
Maximum
Input
Breaker
required
Minimum
Wire
Size
Maximum
Inverter
Pass
Through
Capacity
Hot 1 (Leg 1)
50A
(Single Pole Breaker)
Hot 2 (Leg 2)
50A
(Single Pole Breaker)
#6 AWG
(Input & Output)
12000W
50A @ 120VAC (Hot 1)
50A @ 120VAC (Hot 2)
Note: Loads must be correctly balanced between both
phases (Hot 1 and Hot 2) on the breaker panels in order to
get maximum capacity
#6 AWG
#6 AWG
GFC
Out
GFCI
Outlet
AC Ground
AC Ground from shore or gen
AC Ground
AC Ground to main panel
OUT 2
AC Live to main panel
External
Transfer Switch
(only required if using
a hardwired generator
and shore power)
120 / 240 VAC
50 Amps per 120 VAC leg.
Hot 1 + Hot 2.
Split Phase - ≤50 Amp Service
Install Option 1
Notes:
* All previous converter/charger wiring must be disconnected from the
breaker panel. The IC Series is now used for battery bank charging.
Inverter / Charger
.
Main Panel
#6 AWG
Neutral Bus Bar
Ground Bus Bar
50A
50A
Hot 1 (Black)
Hot 2 (Red)

Go Power IC Series Specifications

General

Output Voltage	12 VDC
Battery Types	AGM, Gel, Flooded, Lithium
Protection Features	Over-voltage, Over-temperature
Operating Temperature	-4°F ~ 140°F (-20°C ~ 60°C)
Dimensions	Varies by model
Weight	Varies by model
