Cable to
IC Series
FM
80
30 Amp
Breaker
Fuse
Block
Battery Bank
MC4 Connector
Refrigerator
Vent Cover
100W or 160W
Solar Panel
Mate 2
Legend
Remote
10 Ft Extension Cable
10AWG (Included)
25 Ft Cable
10AWG (Included)
For this system we
recommend a minimum of
6 batteries / 600 Amp Hour
Battery Bank
RV Console
Area
Solar
Controller
Cable to
Battery Bank
Battery Bank
Solar Panels
Cables From
Solar Charge Controller
Internal
View
GP-IC-Remote
Cable to
Inverter
Refrigerator
Vent Cover
100W or 160W
Solar Panel
Solar
Controller
Fuse
Block
Inverter
Inverter
Remote
AC
Loads
AC
Panel
Transfer
Switch
Fuse
Block
Converter /
Charger
Shore Power
/ Generator
AC Power OUTPUT
- to RV appliances
IC Series
Inverter/Charger
IC Series
Inverter/Charger
Cables to/from
Battery Bank
AC Power INPUT
- from Shore Power/Generator
(Fuses/Breakers not shown)
TYPICAL RV INSTALLATION
3. INSTALLATION
3.1 TYPICAL SYSTEM OVERVIEW

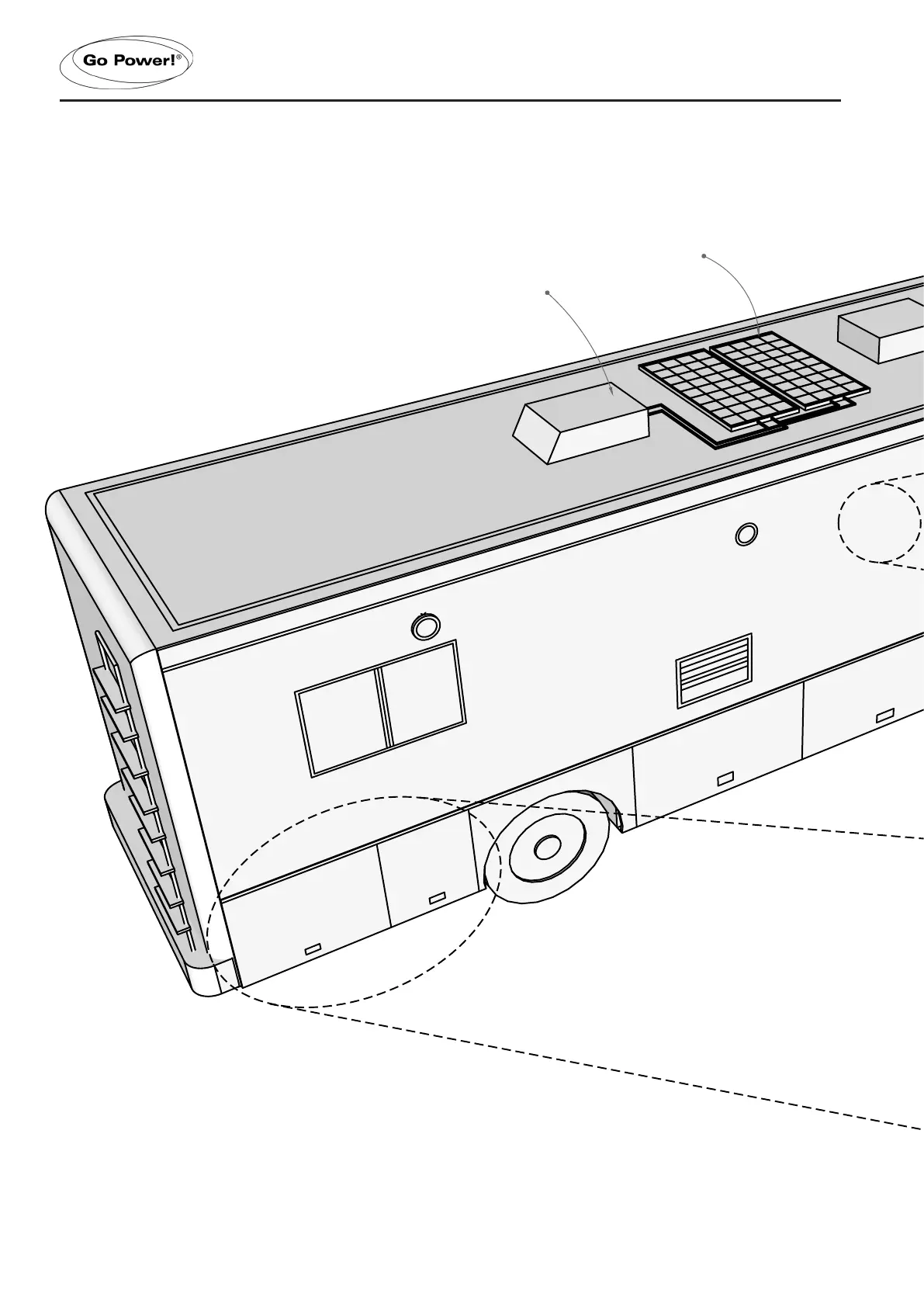

The following diagrams on pages 12-15 show how the IC Series is typically installed in a mobile RV application. The diagrams
show where the Inverter/Charger is installed and how the mobile power system can be integrated with a Go Power! RV Solar Kit
(sold separately by Go Power; please contact us directly.)

Go Power IC Series Specifications

General

Output Voltage	12 VDC
Battery Types	AGM, Gel, Flooded, Lithium
Protection Features	Over-voltage, Over-temperature
Operating Temperature	-4°F ~ 140°F (-20°C ~ 60°C)
Dimensions	Varies by model
Weight	Varies by model
