Page 11
Chapter 5, Motor Assembly
Socket Head Cap
Screw M2.5x20mm
(HC034-S)

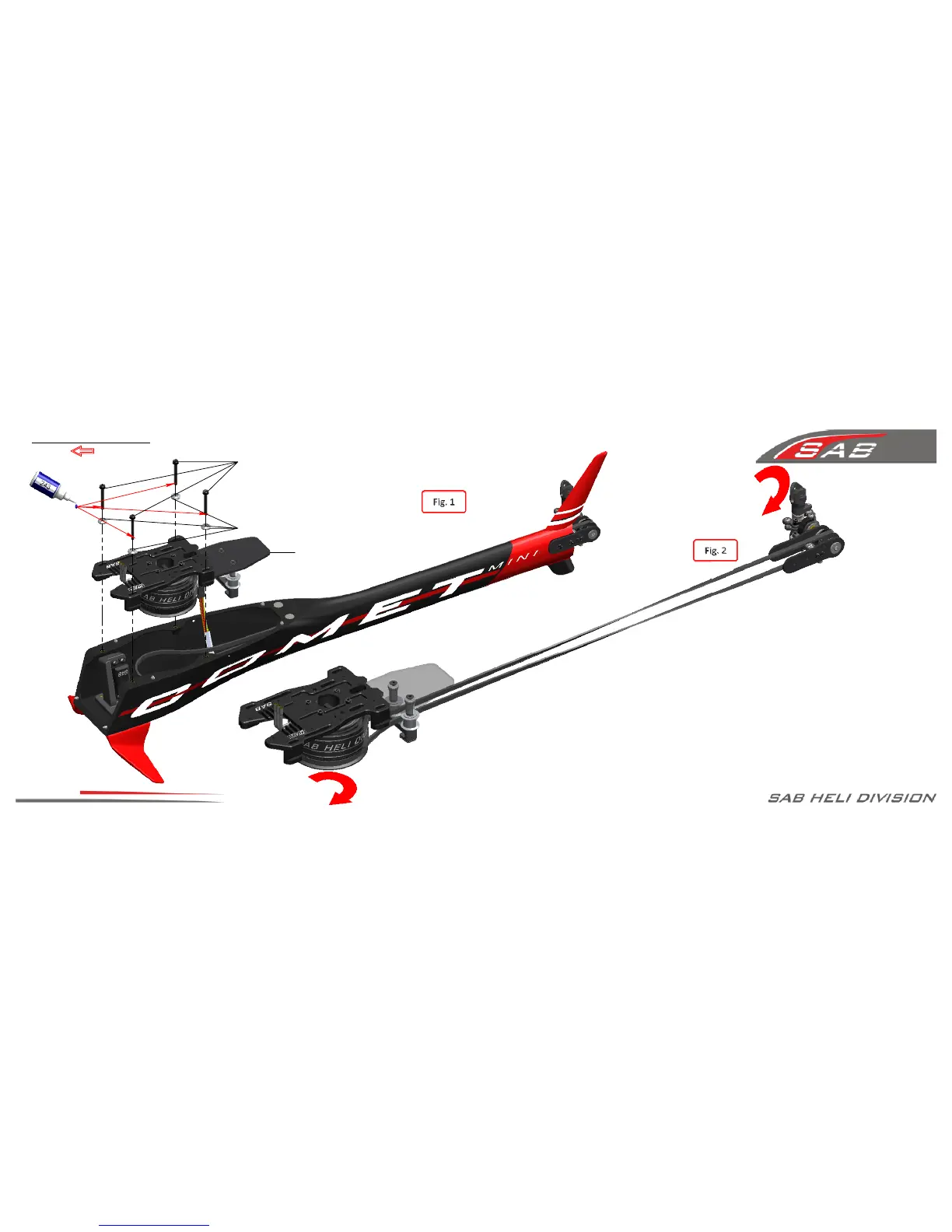

Motor Assembly
BELT DIRECTION ( figure 2 )
IMPORTANT CAUTION! Observe the direction of rotation.
Check that the belt is not twisted.
TAIL BELT TENSION
* Loosen the main plate by loosening the 4 M2.5 screws.
* Install the belt onto the front pulley in the correct direction of rotation (figure 1).
* Rotate the tail drive several times by hand.
* Pull the main plate front to increase belt tension.
* Tighten the 4 M2.5 screws.
* The belt must be very tight.
BAG 4.4
Finishing Washer M2.5
(H0255-S)
To Next Page
