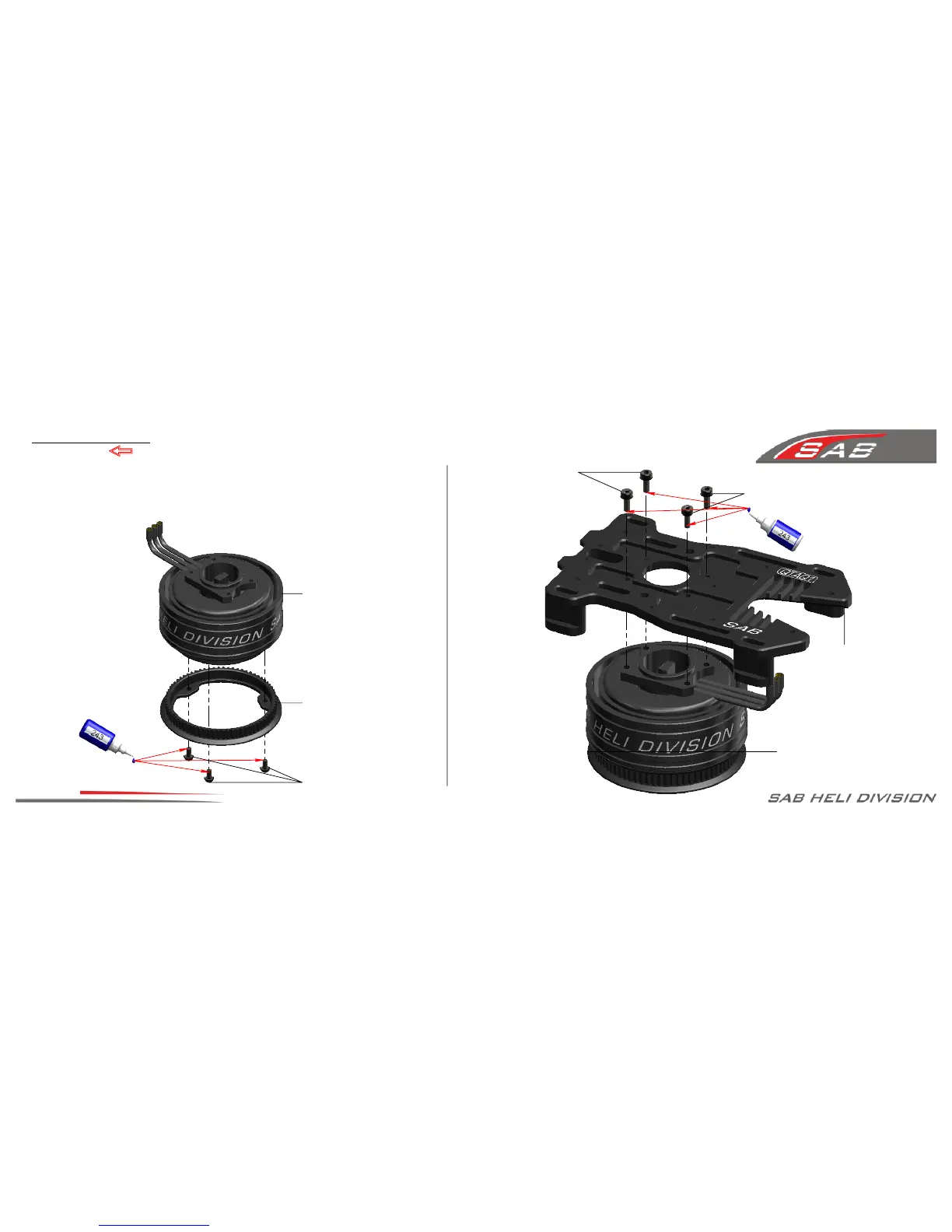

Chapter 5, Motor Assembly
COMPETITION SAB Motor
(HE015-S)
Front Tail Pulley 76T
(H0820-S)
Button Head Cap
Screw M2x4mm
(HC001-S)
Motor Assembly
Socket Head Cap
Screw M2x5mm
(HC002-S)
Motor
Assembly
Main Plate
(H0873-S)
Socket Head Cap
Screw M2x5mm
(HC002-S)
BAG 4.1, BAG 4.2
Before installing the motor, securely solder the connectors in place.
(Connectors are included in the ESC bag ).
