1
Hole for Antena
2
3
Page 19

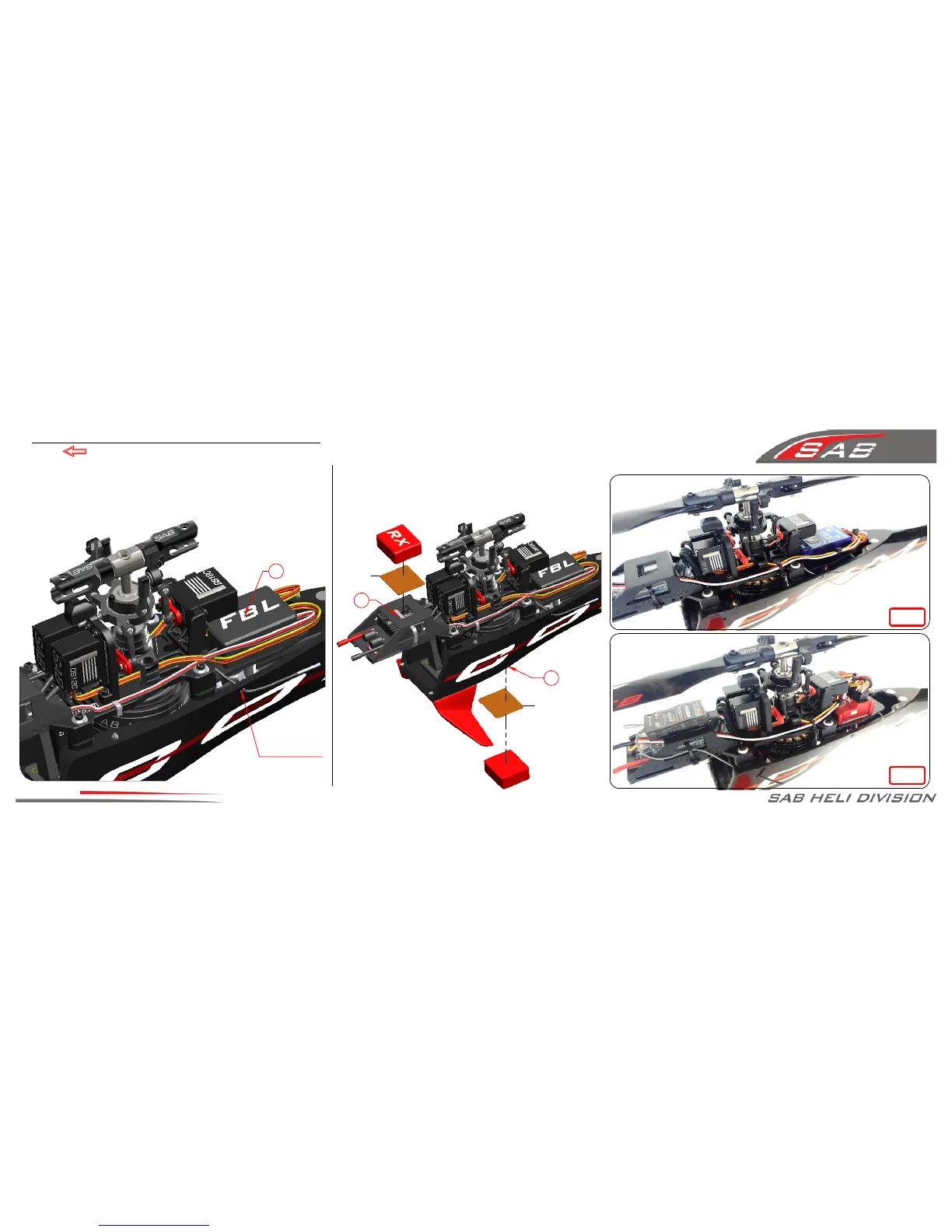

Chapter 10, Installation of ESC, FBL, RX Unit and Anti-Static System
BAG 8
We suggest the use of a “mini” FBL system.This allows for easier wire
routing considering the small size of this helicopter. Position 1 can be
used to install the FBL unit.We recommend using some type of adhesive
to ensure that the plugged connections to the receiver and FBL unit are
secure. You can with care use a hot glue gun for this purpose.
Position 2 or 3 can be used to install your RX unit.
Position 2 is generally used for Futaba RX and Spektrum satellite.
Position 3 is generally used for Spektrum satellite.
Figure 1 and 2 show some example of an installation.
Double Side Tape
[HA035]
[HA035]
Fig. 1
Fig. 2
To Next Page
