Page 20
Chapter 10, Installation of ESC, FBL, RX Unit and Anti-Static System
The use of the antistatic KIT is especially important when the RX unit is located in zone 1. If the RX unit
is located in zone 2 and zone 3, the antistatic kit has never been used in our tests and everything
worked without issues.
Connecting the tail group to the Boom will tend to cancel this dangerous phenomenon.

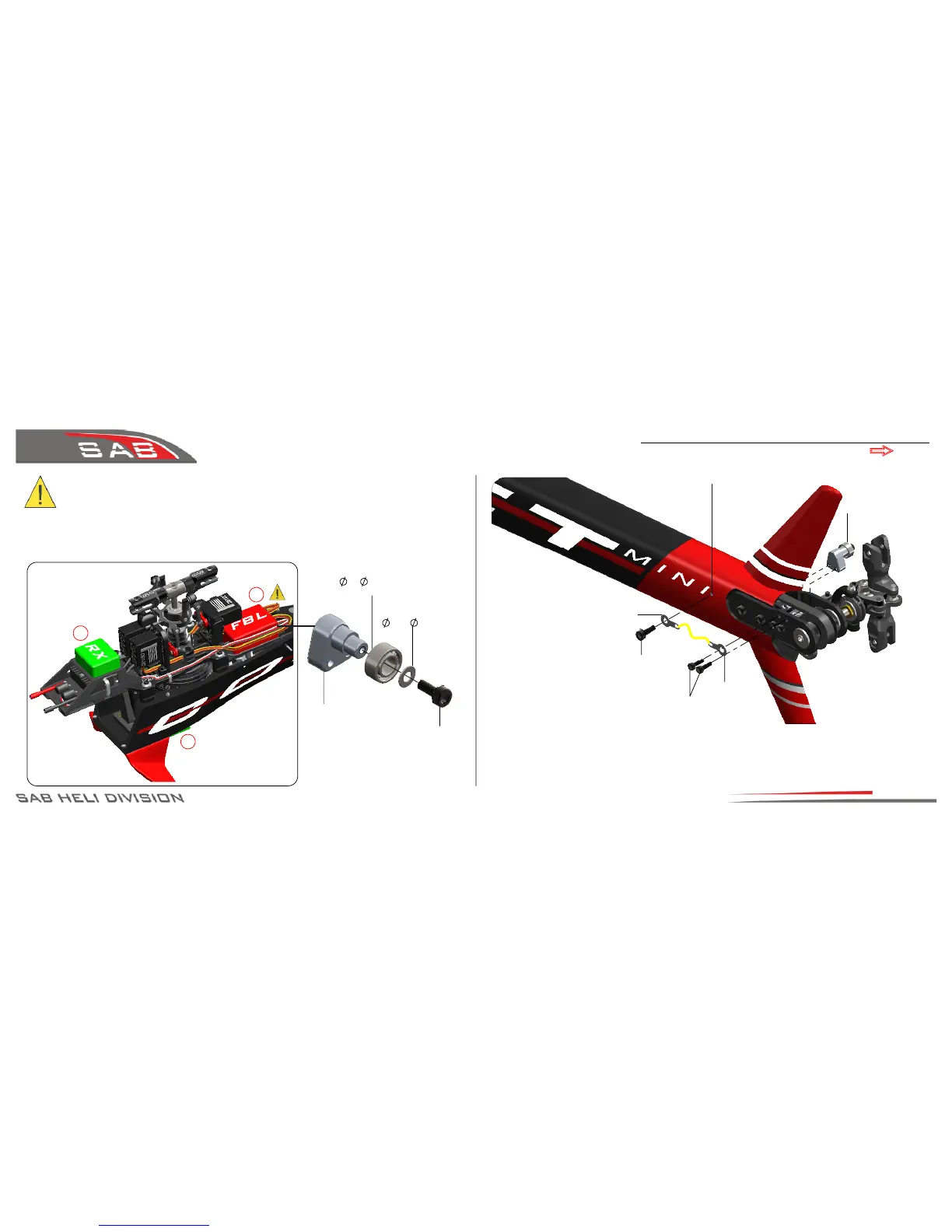

Please follow the assembly instructions:
Anti-Static Column
(H0902-S)
Head Screw M1.6x4mm
(HC496-S)
Washer
1,6x
3,8x0,3mm
Bearing
3x
6x2.5mm
(HC457-S)
Use goop or trasparent tape to
keep the wire in place.
Solder the wire.
Use goop or trasparent tape to
keep the wire in place.
Make a 1.5mm hole in the boom and use a M2x5mm
screw to keep the Eyelet Lug in position.
After assembly, use a volt meter (if available) to check continuity between the main shaft and the small
bearing on the tail belt. If you see continuity, your kit has been installed correctly.
It is also advisable to use some type of anti-static spray or WD40 every 20 flights. This should be applied to
the tail belt to maximize the effectiveness of the antistatic system.
BAG 14
Head Screw M1.6x5mm
(HC497-S)
Eyelet Lug
Anti-Static
Assembly
1
2
3
Head Screw
M2x5mm
Eyelet Lug
To Next Page
