Goblin MINI COMET - Page 7

Tail Pulley
(H0782-19-S)
Set Screw
M2.5x4mm
(HC499-S)
Socket Head Cap
Screw M2x12mm
(HC014-S)
Note: The set screw should align
with the hole in the tail shaft.
Tail Belt HTD 2M 850
(HC491-S)

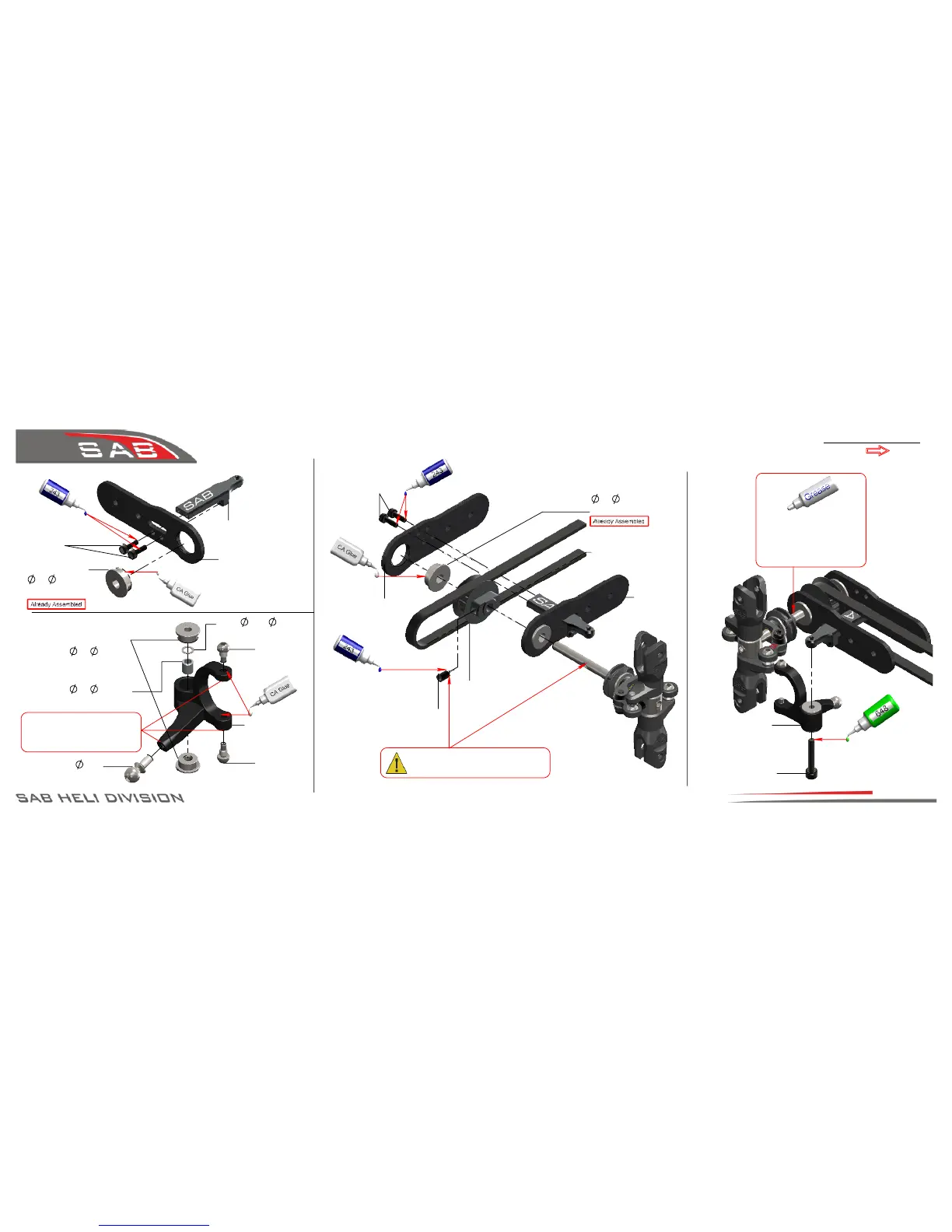

Tail System Assembly
Page 6
Chapter 4, Tail System
Right Tail Plate
(H0925-S)
Bell Crank Support
(H0778-S)
Uniball M2x
4xH3
(H0789-S)
Flanged Bearing
3x 8x3mm
(HC485-S)
Flanged Bearing
2x 5x2.5
(HC456-S)
Bell Crank Lever
(H0797-S)
Bushing
2x 3 x 3mm
[H0076]
Socket Head Cap
Screw M1.6x5mm
(HC497-S)
Tail Side Plate Assembly
Bell Crank Lever Assembly
Right Tail
Side Plate
Assembly
Bell Crank Lever
Assembly
Socket Head Cap
Screw M1.6x5mm
(HC497-S)
Flanged Bearing
3x 8x3mm
(HC485-S)
BAG 2
Note: Do not over tighten,
be careful to avoid stripping
the plastic .
Tail Pin
(H0781-S)
Tail Pin
(H0781-S)
eg: Microlube GL261
Make sure the pitch
slider can move very
smooth on the tail shaft.
Shims
2.1x 3.6x0.2
[HC508]
Left Tail Plate
(H0926-S)
