9-10mm
20mm
Page 7

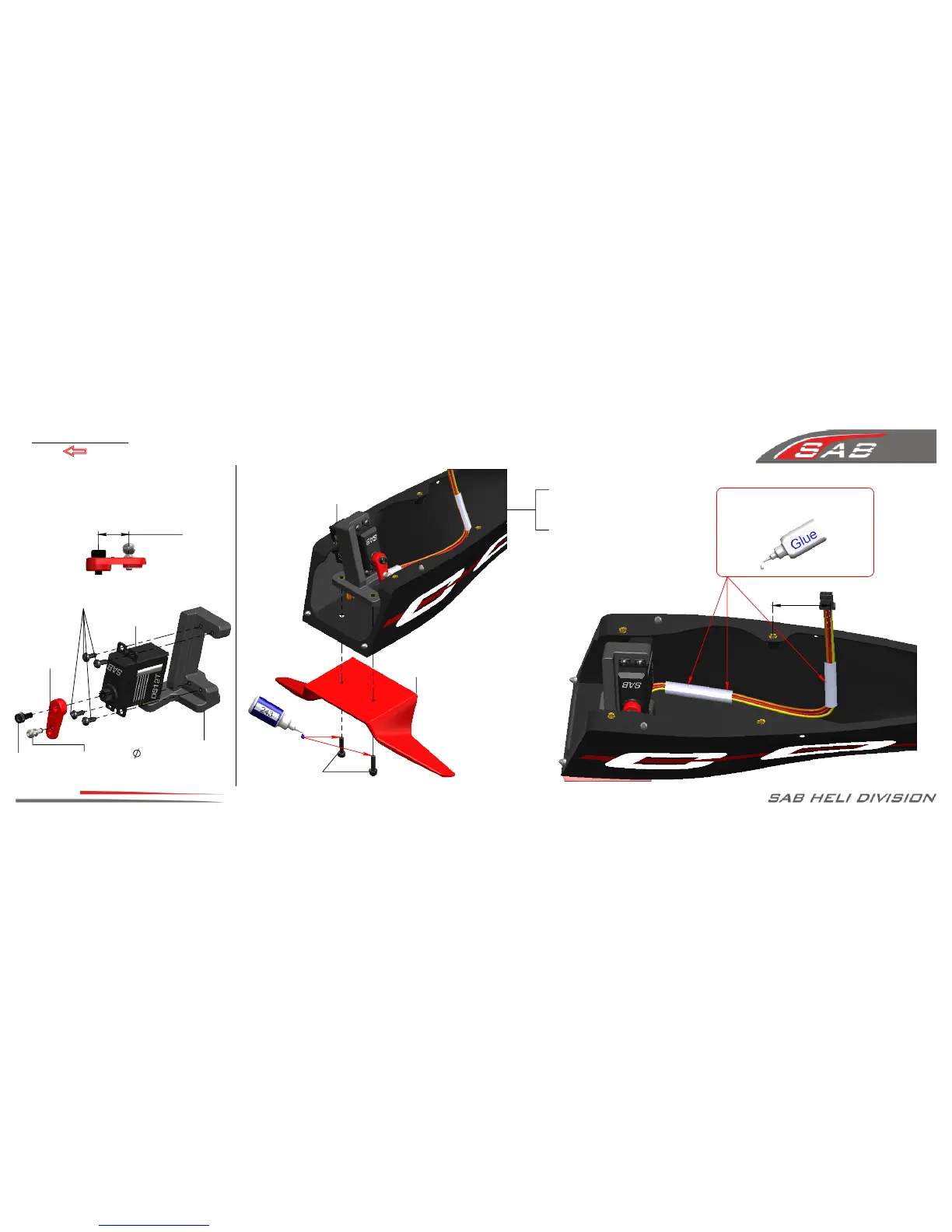

Chapter 4, Tail System
Tail Servo Assembly
Red Standard
Landing Gear
(H0924-S)
Tail Servo is a Micro size ( 12x23mm )
(SAB DS12T: Frequency 760ms/560hz)
The distance between the axis and
the ball must be between
9 - 10mm
Servo Screw
(HA065-S)
Uniball M2x
4xH3
(H0789-S)
SAB Servo Horn
(HA065-S)
SAB Tail Servo
(HE019-S)
Tail Servo
Assembly
BAG 3
Tail Servo
Support
(H0886-S)
Socket Self Tapping
Screw M2.2 x 6mm
(HC490-S)
Socket Head Cap
Screw M2.5x10mm
(HC022-S)
Fuselage MiniComet Yellow/Red
(H0919-S)
[SG283]
Fuselage MiniComet Black/Red
(H0921-S)
[SG284]
We suggest to use Hot Glue to keep
the servo wire inside the fuselage.
To Next Page
