2-6 Loading The Label Roll (Cutter Model)

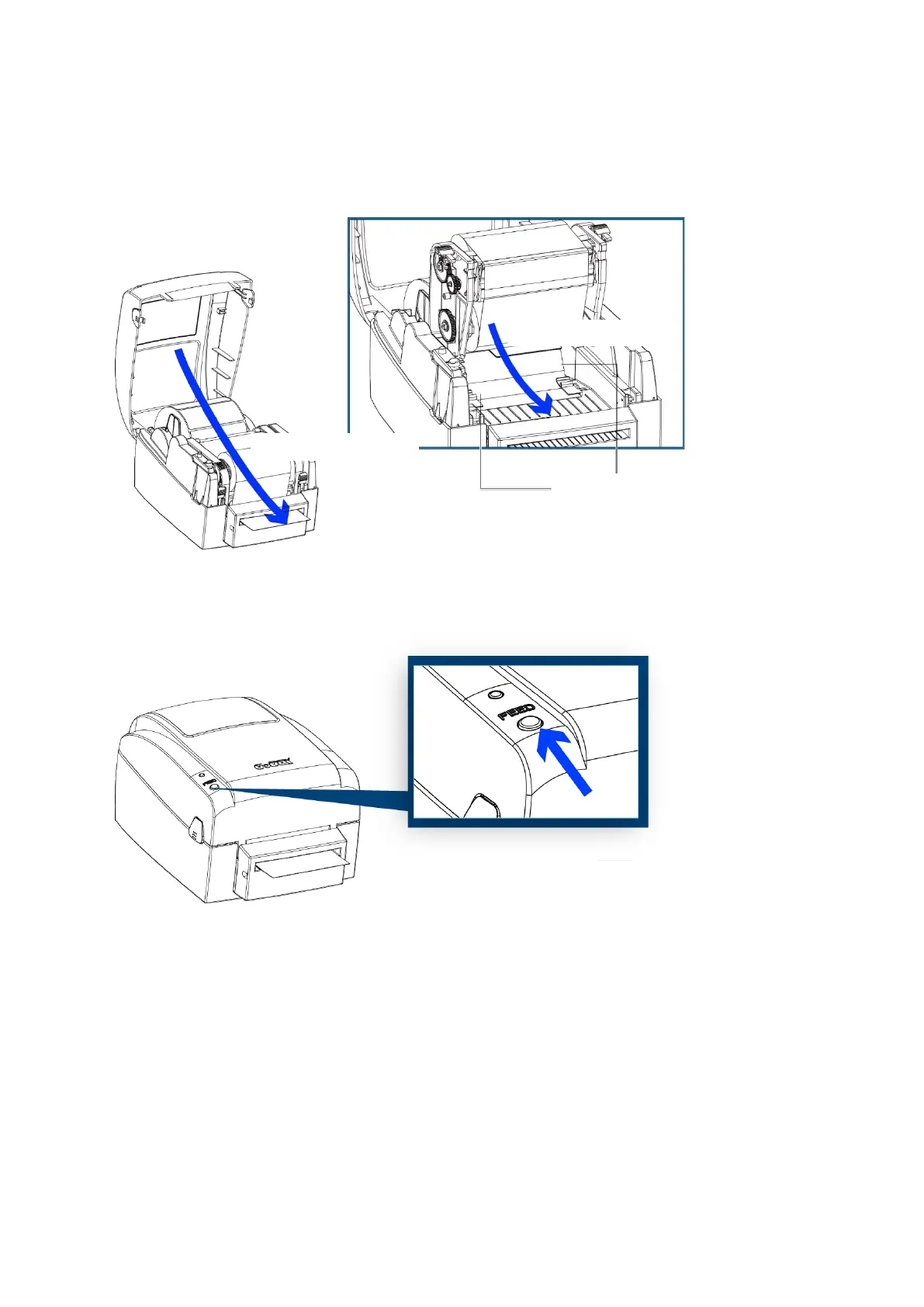

Pass the labels through the guides.
Close the printing mechanism.
To finish, press the FEED button to set the label position.
! NOTICE
⚫ Do not use to cut adhesive labels! Glue residue will be left on the cutter blade and impair its functioning.
⚫ The cutter has a blade life of 400,000 cuts when using paper liner which is 0.2mm thick and 3 inches wide.
You can cut paper with a max. width of 116 mm.
⚫ Labels should be at least 30 mm high to ensure correct functioning of the cutter.
⚫ With the cutter installed, setting the stop position in GoLabel to 30, or the E value to 30 is recommended.
⚫ If you use cutter, please do not use inside wound media while printing, otherwise the breakdown may occur.
