Godex RT200i - Page 55

51
5 Accessories
047

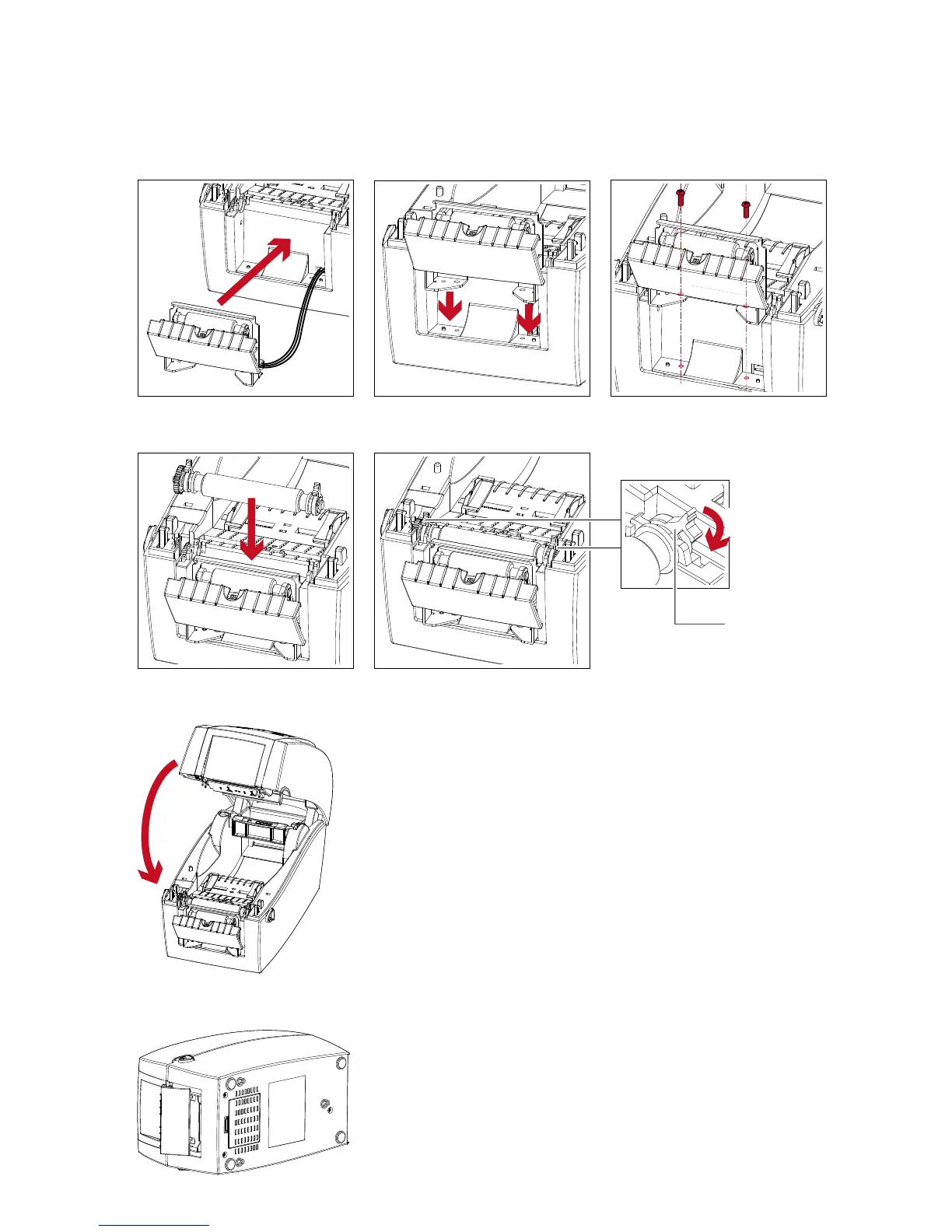

2. Place label dispenser to align both holes of screw and then tighten the screws.
3. Place the platen back to the printer and lock the clips.
4. Close the top cover and printing mechanism.
Lock the clip
CLIP
5. Turn the printer upside down.
