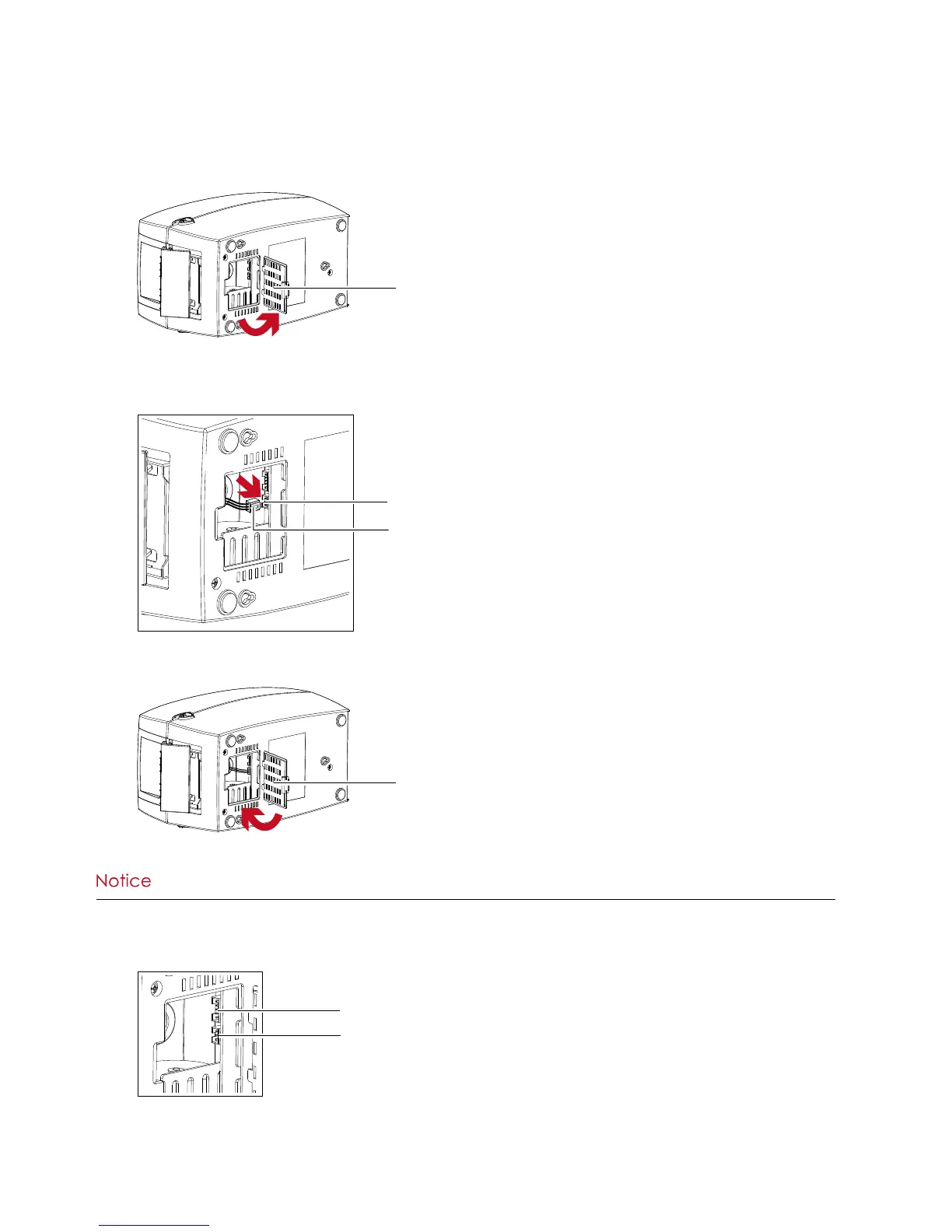

6. Open the cover on the bottom of printer.
7. Plug the connector fo the label dispenser to the jack.
8. Close the cover of the module connection jacks.
COVER OF THE MODULE CONNECTION JACKS
Open the cover
JACK
CONNECTOR OF THE CONNECTION CABLE
Plug
COVER OF THE MODULE CONNECTION JACKS
Close the cover
****The printer must be switched off when plugging the connector, or the motherboard may be destroyed!
****There are 2 jacks : the lower jack for the label dispenser, the upper jack for the cutter.
CUTTER JACK
LABEL DISPENSER JACK
