6. Open the cover on the bottom of printer.
7. Plug the connector for the cutter to the jack.
8. Close the cover of the module connection jacks.
****The printer must be switched off, or the motherboard may be destroyed!
****There are 2 jacks : the lower jack for the label dispenser, the upper jack for the cutter.

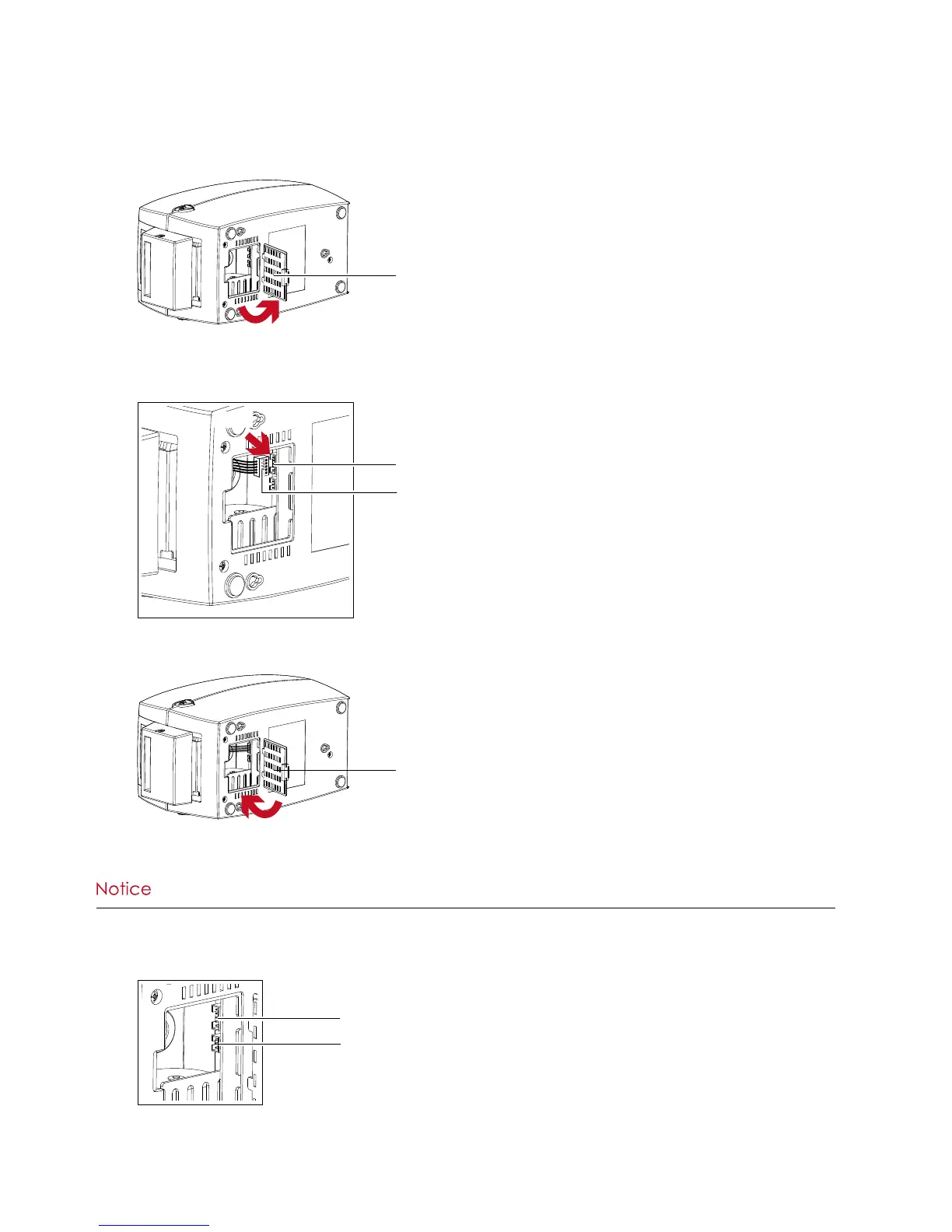

COVER OF THE MODULE CONNECTION JACKS
Open the cover
JACK
CONNECTOR OF THE CONNECTION CABLE
Plug
COVER OF THE MODULE CONNECTION JACKS
Close the cover
CUTTER JACK
LABEL DISPENSER JACK
