Godex RT700i User Manual

2 Printer Setup
2.1 Open the Printer
Open the Printer Cover and the Printing Mechanism

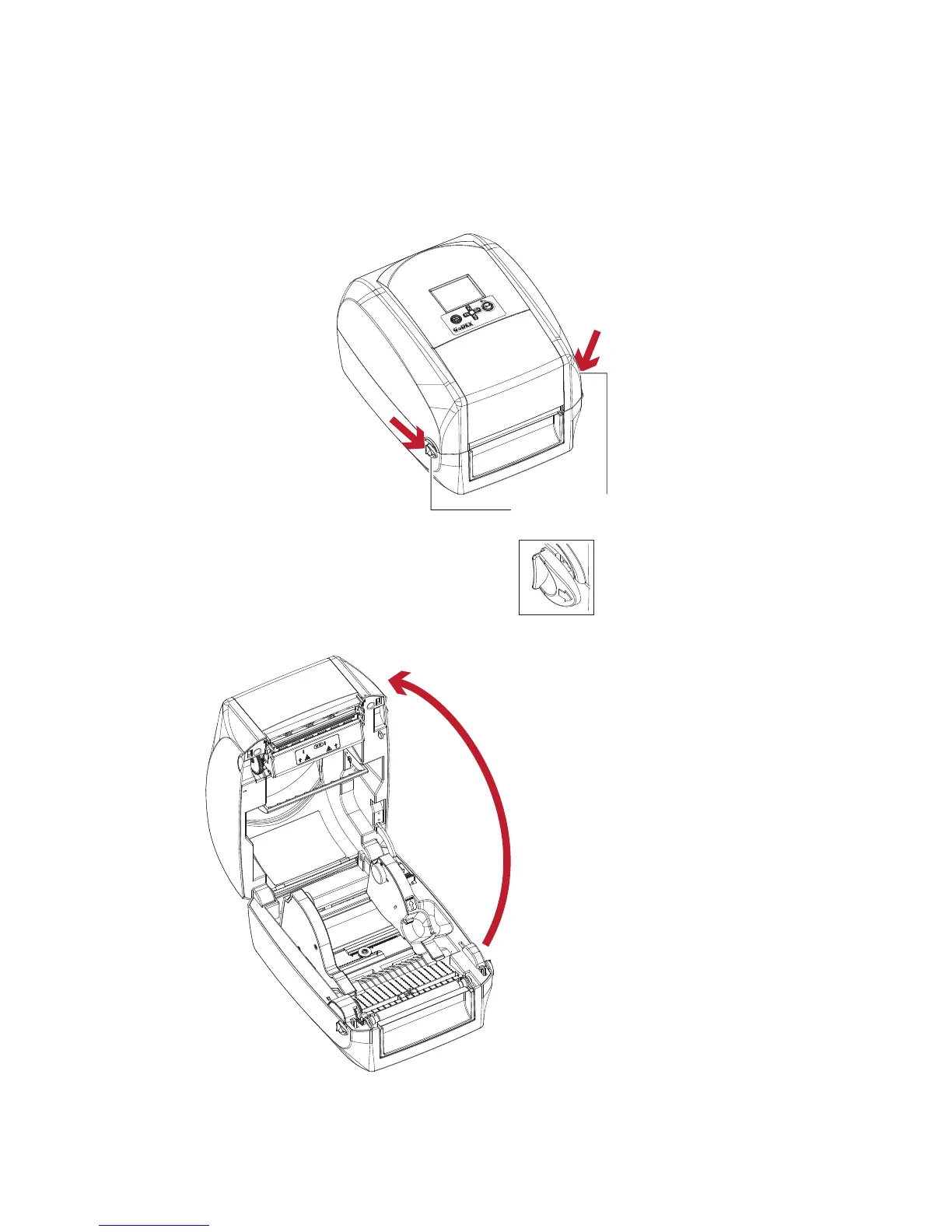

Place the printer on a flat surface. Open the printer cover by pulling the cover release catches on both sides of the
printer and lift the printer cover.
006
RT700i
Pull the catches toward the direction
COVER RELEASE CATCHES
Pull the catches for opening the printer cover
Pull the catches toward the direction
The printing mechanism is lifted up
with the printer cover

Godex RT700i Specifications

General

Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	1727 mm
Maximum printing width	108 mm
Display	LCD
Product color	Black
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Certification	CE (EMC), FCC Class A, CB, CCC, cUL
Internal memory	16 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Windows code pages supported	1250, 1251, 1252, 1253, 1254, 1255, 1257
Ribbon width	110 mm
Core diameter	25.4 mm
Ribbon length	300 m
Media thickness	0.06 - 0.2 mm
Maximum roll diameter	127 mm
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	30 - 85 %
Power requirements	100-240V, 50-60Hz
Compatible operating systems	Windows 2000, XP, Vista, 7, Windows Server 2003, 2008

Weight and Dimensions

Depth	280 mm
Width	210 mm
Height	186 mm
Weight	3000 g
