Godex RT700i User Manual

5 Accessories
048

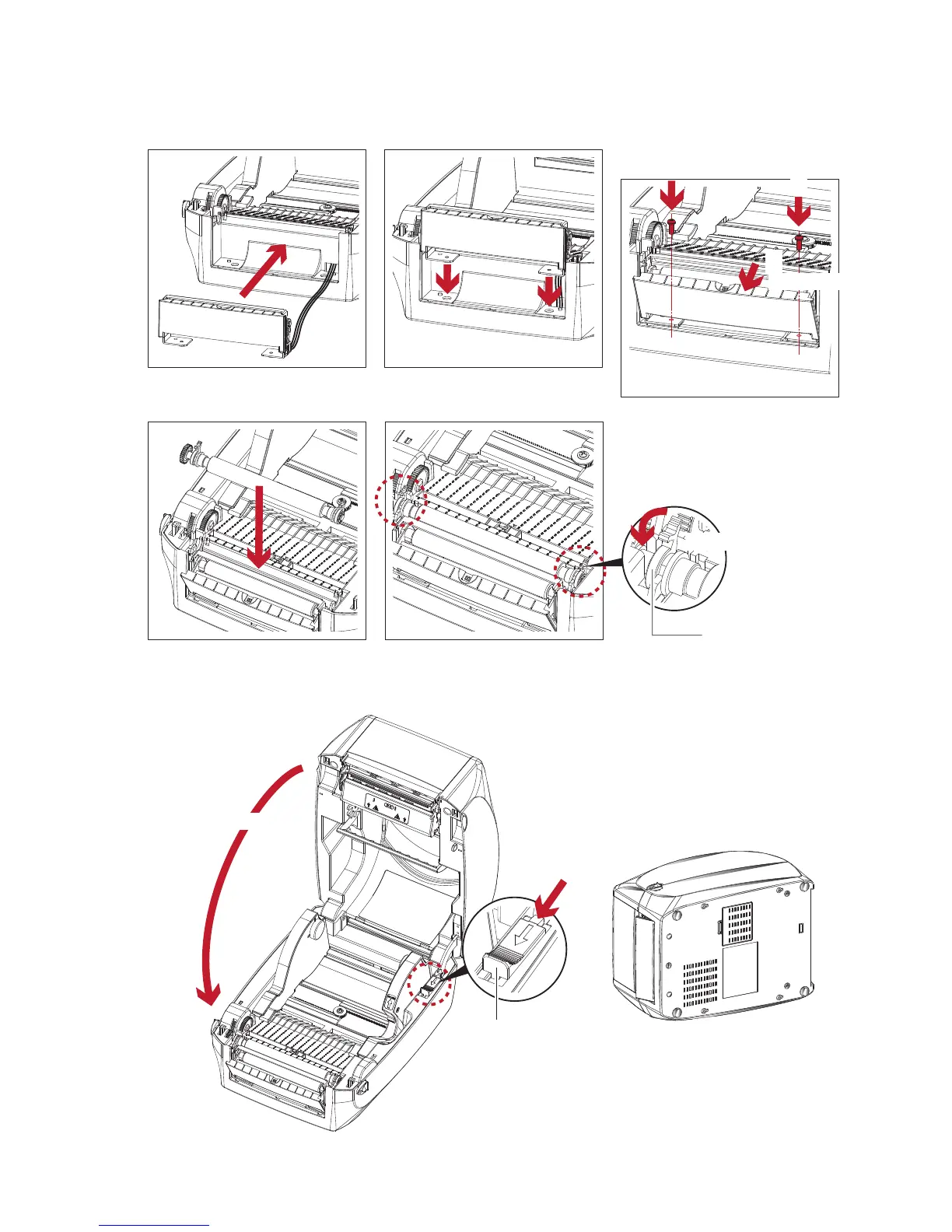

2. Place label dispenser to align both holes of screw and then tighten the screws.
3. Place the platen back to the printer and lock the clips.
4. Close the printer cover and printing mechanism.
Then to turn the printer upside down.
Open the cover
1
2
2
Tighten the screw
Lock the clip
CLIP
Close the printer cover
2
Push
1
RELEASE CATCH
Release catch for closing
the printer cover

Godex RT700i Specifications

General

Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	1727 mm
Maximum printing width	108 mm
Display	LCD
Product color	Black
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Certification	CE (EMC), FCC Class A, CB, CCC, cUL
Internal memory	16 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Windows code pages supported	1250, 1251, 1252, 1253, 1254, 1255, 1257
Ribbon width	110 mm
Core diameter	25.4 mm
Ribbon length	300 m
Media thickness	0.06 - 0.2 mm
Maximum roll diameter	127 mm
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	30 - 85 %
Power requirements	100-240V, 50-60Hz
Compatible operating systems	Windows 2000, XP, Vista, 7, Windows Server 2003, 2008

Weight and Dimensions

Depth	280 mm
Width	210 mm
Height	186 mm
Weight	3000 g
