Godox TT685N - Page 7

RST
SET
01. Catchlight Panel
02. Built-in Wide Panel
03. Flash Head
04. Optic Control Sensor
05. Focus Assist Beam
06. Wireless Control Port
07. Sync Cord Jack
08. Hotshoe
09. Dot-marix LCD Panel
10. Lock Ring
11. Battery Compartment
12. USB Port
13. Slave Flash Ready Indicator
14. External Power Supply Socket
● Body
15. <MODE> Mode Selection
Button / Lock button
16. < >Wireless Selection
Button
17. Select Dial
18. <SET> Set Button
19. ON/OFF Power Switch
20. < > Test Button / Flash
Ready Indicator
21. Function Button 1
22. Function Button 2
23. Function Button 3
24. Function Button 4
● Control Panel

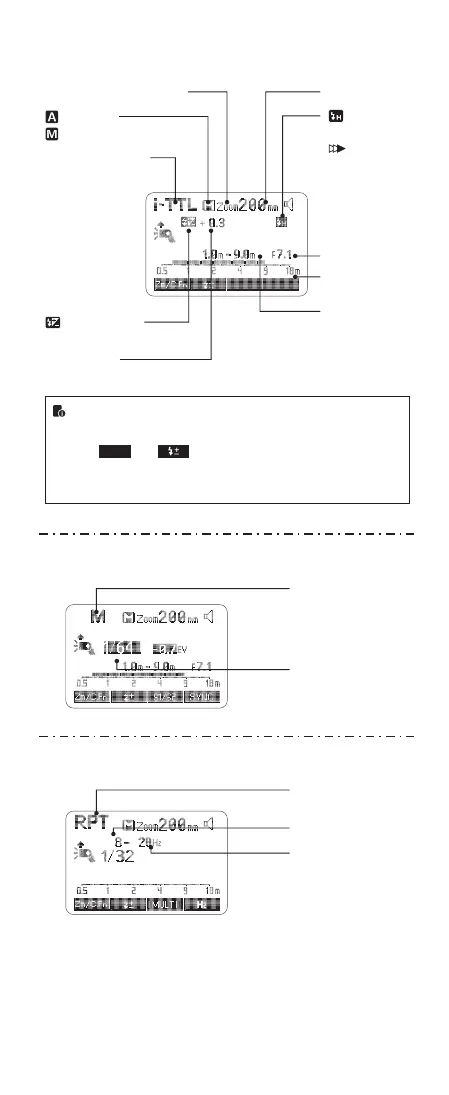

● LCD Panel
- 31 - - 32 -
Name of Parts
21
22
23
15
20
18
19
16
24
17
(1)i-TTL Autoflash
Zoom : zoom display (Page 46)
: Automatic
: Manual(Page 37)
i-TTL : i-TTL autoflash
Focus length (Page )46
: High-speed sync
(Page 36)
: Second curtain
sync (Page 36)
F : Aperture (Page 35)
: Flash exposure
compensation (Page 35)
Distance indicator
display
Effective flash range
(Page 35)
Flash exposure
compensation amount
(2)M Manual Flash
● The display will only show the settings currently applied.
● The functions displayed above function buttons 1 to 4, such
as and , change according to settings’ status.
● When a button or dial is operated, the LCD panel
illuminated.
M : Manual flash
Manual flash output
(3)Multi Flash
RPT : Stroboscopic flash
Number of flashes
Flash frequency
09
06
07
12
08
10
11
05
13
04
03
02
01
14
SYNC
