IMO83B1 – April 2011
9

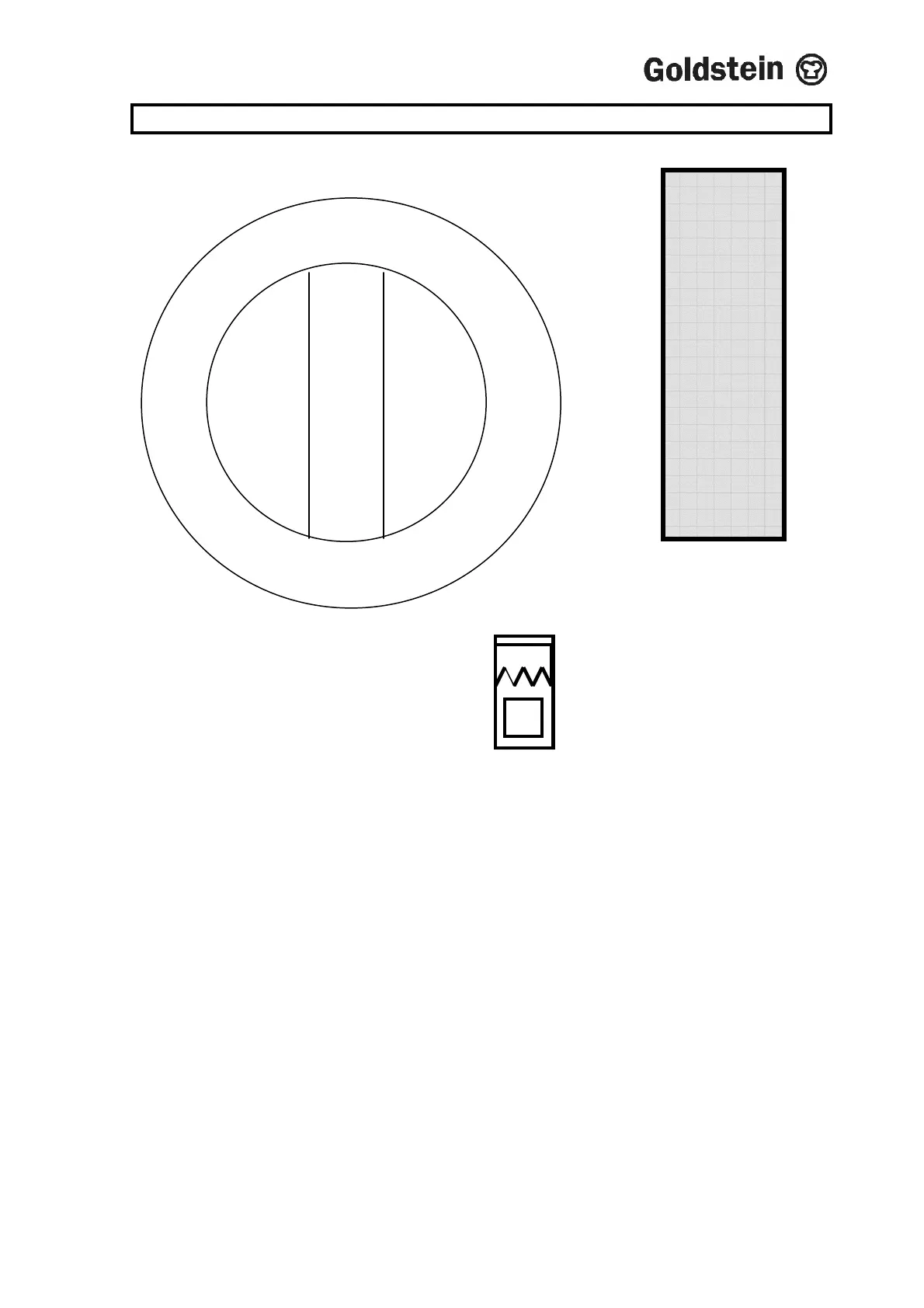

5. PILOT & BURNER OPERATION
A
●
●●
●
●
●●
●
OFF
ᗂ
ᗂᗂ
ᗂ
B
ᗂ
ᗂᗂ
ᗂ PILOT
C
MAX
D
MIN
●
●●
●
SPARKER TO LIGHT PILOT
G
G G
G
A= OFF
B= IGNITION POSITION – LIGHT PILOT – (If flame failure hold in for 10
seconds to establish pilot flame).
C= TURN TO FULL ON – MAX GAS FLOW, FURTHER ADJUSTMENT
BETWEEN POSITIONS C & D.
D= TURN TO MINIMUM FLOW – MIN. GAS FLOW TO MAINTAIN FLAME
(Adjustable to suit type of gas used.) as precise and accurate.
TO OPERATE:
Push in and turn knob to position “B”, light pilot burner and hold in for10
seconds to establish Pilot flame, release (pilot burner should remain alight)
and turn to position “C” for full flow of gas, for minimum gas flow turn to
position “D”
(Adjustable to suit type of gas used). Further adjustment of gas flow
between position C & D.
