Securing the telephone to the wall:
7

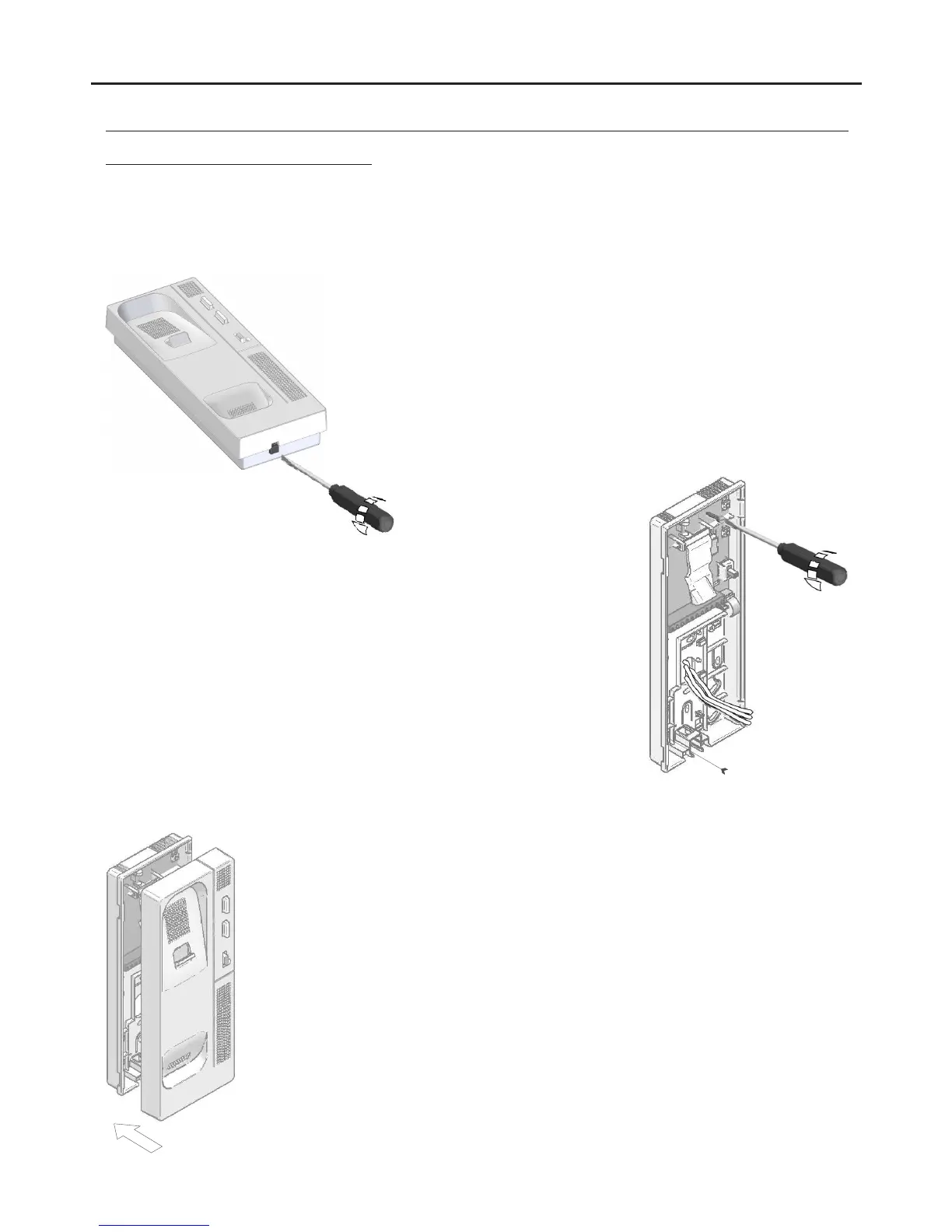

It is necessary to open the telephone for wiring and fixing
purposes. To open the telephone, insert a plain
screwdriver into the slots and gently lever as shown in the
drawing.
The telephone can be secured using an electrical
embedding box or directly to the wall. To secure directly
to the wall, drill two 6mm. holes at the specified
positions. Use 6mm. wall plugs and Ø3.5 x 25mm
screws.
Pass the installation wires through the corresponding hole and
connect them to the terminal block as per the installation diagram.
Close the telephone as shown on the picture. Once the telephone is
closed, connect the handset using the telephone cord and put it on
the cradle.
Avoid placing the telephone near sources of heat, in dusty locations or smoky environments. The telephone can be
secured using an electrical embedding box or directly to the wall.
TELEPHONE INSTALLATION:
T562 G 2B TELEPHONE
