User‘s Manual
24
Allen wrench
4mm
M-D
Second person
do not damage them.
2. Check the strength and stability of the ceiling before installation.
3. Select a suitable mounting location.
4. Mark the drill holes 1 to 3 with a
pencil.
Use the ceiling plate (A) as template.
5. Drill the drill holes with a 10mm
concrete drill 60mm deep.

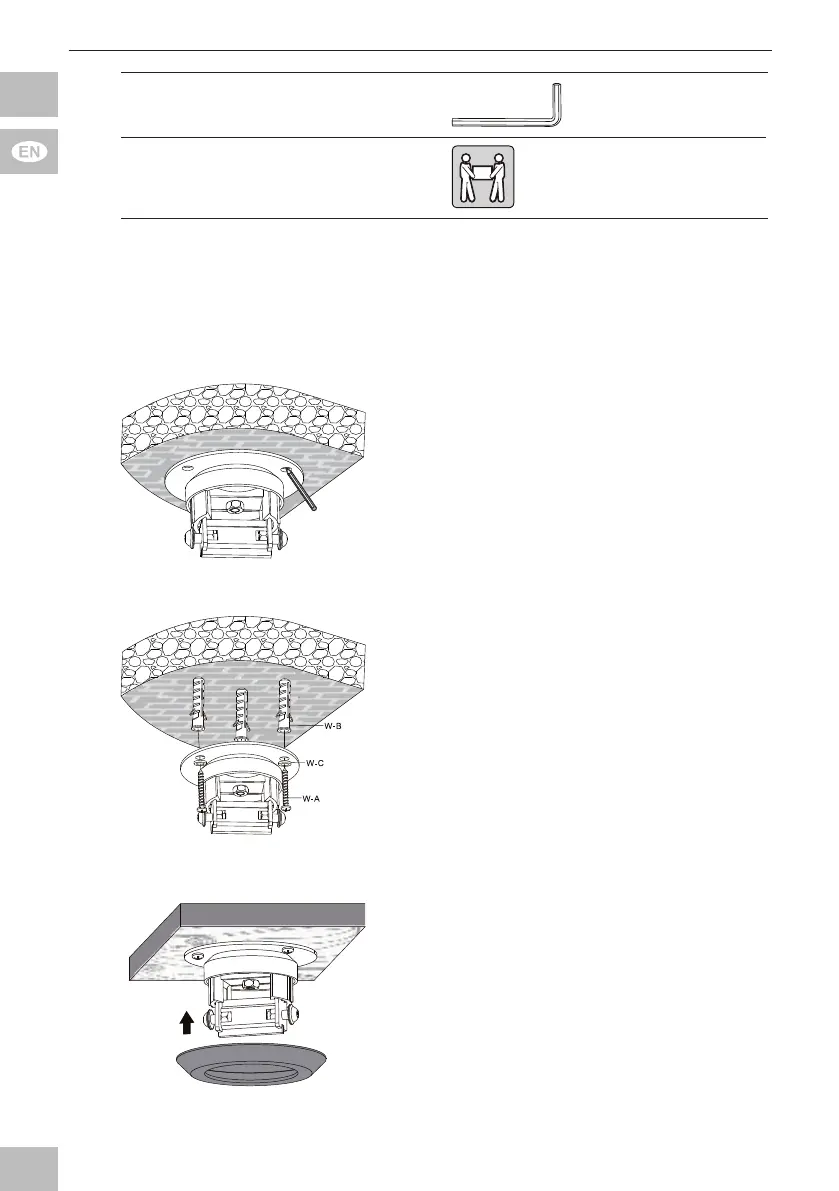

Fig. 17:
Ceiling mount 1
6. Plug a concrete anchor (W-B) in each
drilling hole.
7. Attach the ceiling plate (A) with the
ceiling screws (W-A) and washers D6
(W-C).
Fig. 18:
Ceiling mount 2
8. Put the cover (B) onto the ceiling
plate (A).
Fig. 19: Ceiling mount 3
