4.4.2 SITE Version (Toshiba)
if your beamer or projector
provides only lateral attach-
ment points.
2. Install the adjustable part
(M-G) to your beamer or

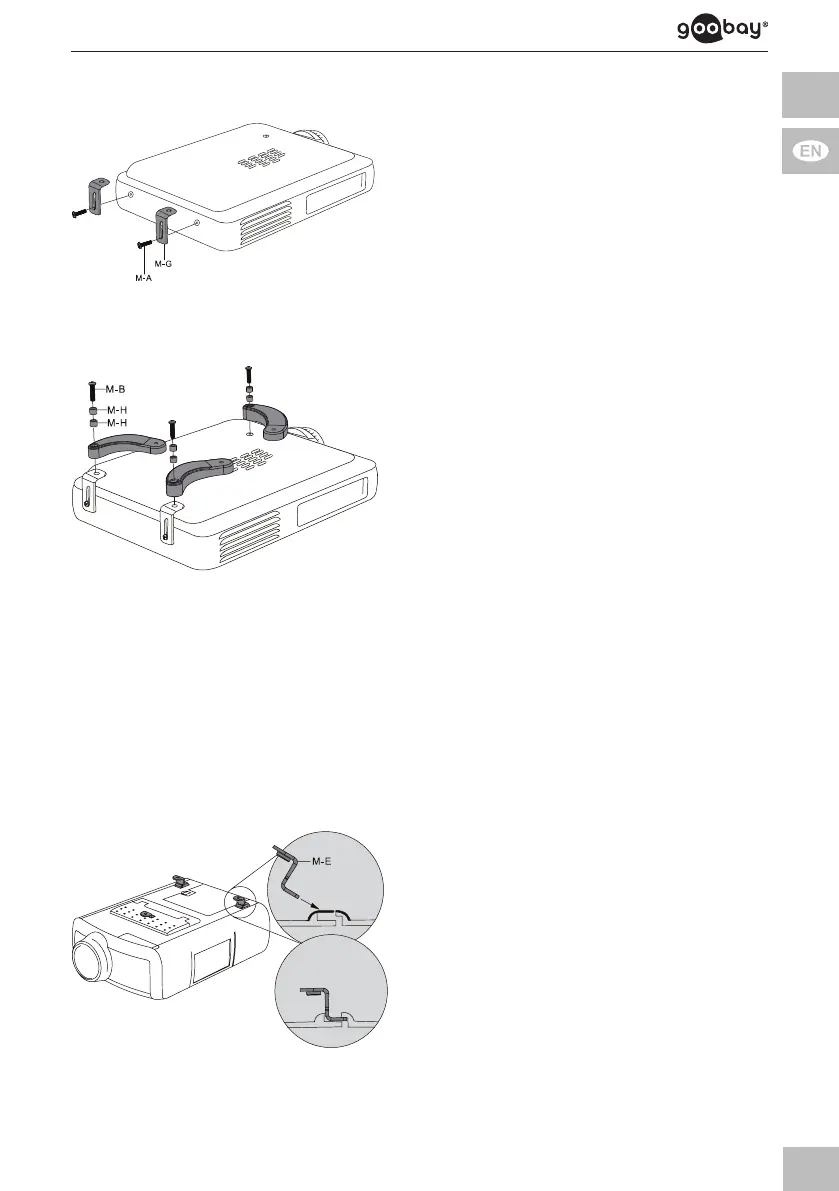

Fig. 24:
Installing the mounting legs SITE Version 1
projector with the screws
(M-A).
3. Install the 3 mounting legs (D)
as shown either
>> With the screws (M-B) and
the spacers (M-H) in
single version or
Fig. 25:
Installing the mounting legs SITE Version 2
>> in double version
ding on the construction of
your beamer or projectior.
Tighten the screws in a way
that the mounting legs stay
adjustable.
4.4.3 CLIP Version (Philips)
if your beamer or projector
offers hanging eyelets.
Fig. 26:
Installing the mounting legs CLIP Version 1
To Next Page
