Goodman ARUF42C14AA - Page 6

6

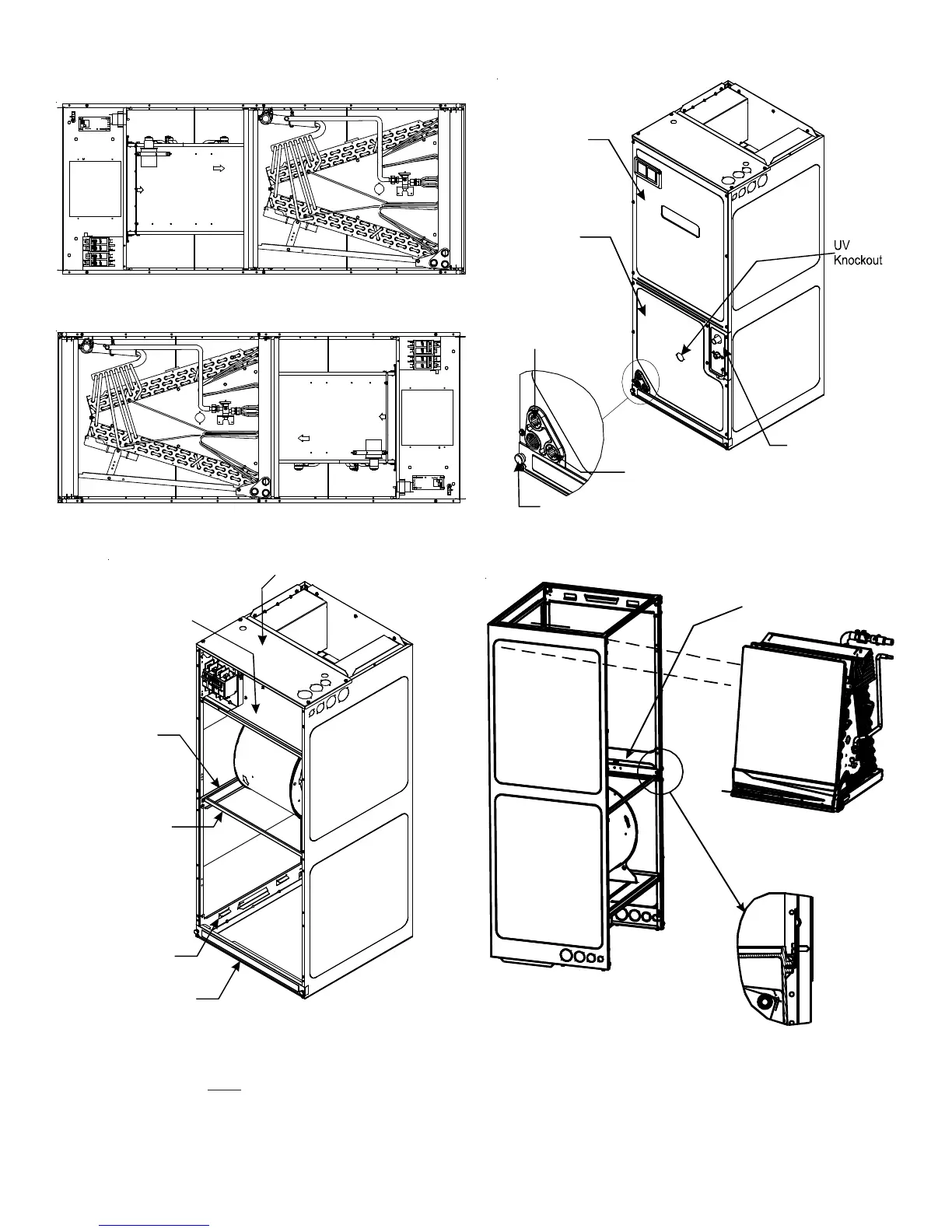

HORIZONTAL LEFT
Figure 4
HORIZONTAL RIGHT
Figure 5
Downflow
Bracket
Center
Support
Filter
Bracket
Control
Deck
Upper Tie Plate
Filter Access
Panel
INTERNAL PART TERMINOLOGY
Figure 6
NOTE: If removing only the coil access panel from the unit,
the filter access panel must be removed first. Failure to do so
will result in panel damage.
Secondary Drain Port
for Upflow/Downflow
Application
Secondary
Drain Port
for Horizontal
Application
Blower
Access
Panel
Coil
Access
Panel
Tubing
Panel
Thumb
Screw
EXTERNAL PART TERMINOLOGY
Figure 7
IMPORTANT NOTE:
Ensure coil slides on the rails
along the groove provided
on the drain pan side walls.
Failure to do so will result in
improper condensate drainage.
Coil Slides
on the downflow bracket
COIL INSTALLATION FOR DOWNFLOW
Figure 8
