Goodman MBE2000 - Wiring Diagrams: Heat Pump with Single Outdoor Thermostat Control; Heat Pump - 2 Stage EMHT, 1 Stage AUX (1 Outdoor Tstat)

WIRING DIAGRAMS
22
HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
R
YCON COM
O
W2 ED
HEATPUMP
CONDENSER
CO
W2
RTG
HEATPUMP
ROOM
THERMOSTAT
W2
E
C
Y2R
R
Y2
G
IF NEEDED
HUMIDISTAT
(OPTIONAL)
REMOVE
PRODUCTION
WIRE Y1-O
SEE NOTE 4
NOTES:
1.) Y ENABLES HI SPD FAN COOLING
2.) E ENABLES LO SPD FAN HEATING
W2 AND OT2 CLOSED ENABLES HI SPD
FAN HEATING
3
.) OT1 PJ4 AND OT2 PJ2 MUST BE CUT FOR THIS
CONFIGURATION
4
.) CUT HUM PJ6 JUMPER IF USING HUMIDISTAT
STAT OPENS ON HUMIDITY RISE
5
.) DIP SWITCH #4 MUST BE IN THE "OFF" POSITION

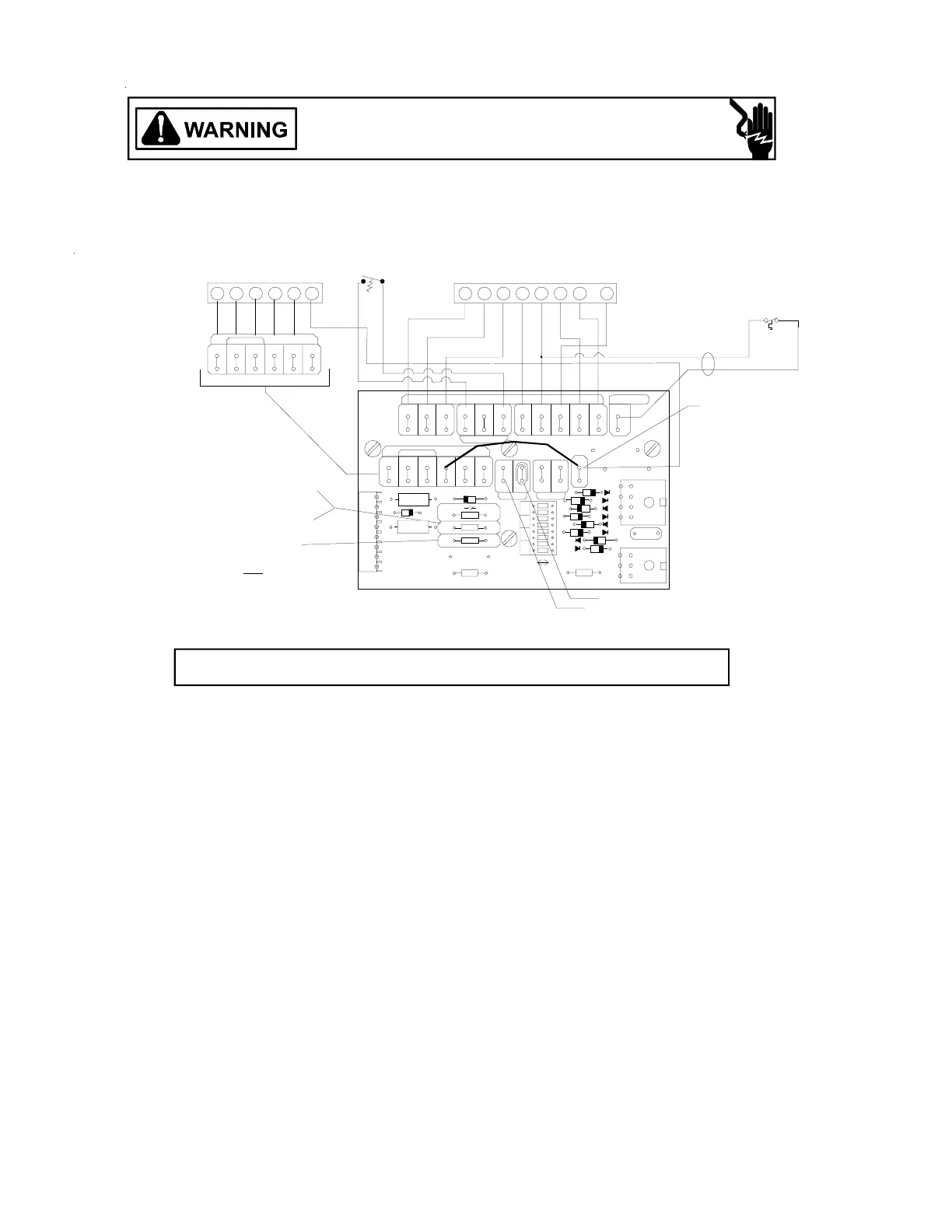

HEATPUMP - 2 STG EMHT 1 STG AUX - 1 OUTDOOR T'STAT
1ST STAGE HEATER
Y1
Y1
2ND STAGE HEATER
O
J1
R1
R3
CR10
R2
CR9
PJ6
PJ2
PJ4
OT1
OT2
HUM
12345678
PLEASE REFER
TO MANUAL
FOR PROPER
DIP SWITCH
CONFIGURATION.
W1 W2
R
YCON COM
O
W2 ED
S
WI
TC
H
DI
P
O
N
O
FF
24 VAC
CR
Y1
W2W1
OUTDOOR
HEATPUMP
CONDENSER
DS1
CR1
CR2
CR5
CR6
CR7
CR8
CR3
CR11
J2 J3
1
4
C2
1
5
Y1RC G Y/Y2OT2 HUM
HUMIDISTAT
OT1
OTCW/W2E\W1
THERMOSTATS
GOODMAN MFG. CO. L.P.
OUTDOOR
THERMOSTAT
NO AUX HEAT IN HEATPUMP MODE UNTIL T'STAT CLOSES
